Introduction

Many application servers and frameworks such as Apache Camel use JMX to expose a number of MBeans for configuration and monitoring purposes. The JVM itself also publishes a number of platform MXBeans that present interesting information around the low-level operations in the JVM.

perfino includes an MBean browser that shows all registered MBeans in a selected VM. The remote management level of JMX for accessing MBean servers is not required, because the perfino agent is already running in-process and has access to all registered MBean servers.

perfino supports the type system of Open MBeans. Besides defining a number of simple types, Open MBeans can define complex data types that do not involve custom classes. Also, arrays and tables are available as data structures. With MXBeans, JMX offers an easy way to create Open MBeans automatically from Java classes. For example, the MBeans provided by the JVM are MXBeans.

The "MBean browser" view in the "VM Data Views" shows all registered MBeans in one selected JVM. If you have selected a VM group, you have to switch to a single VM first. If you have selected a VM pool, the context area will show an  image button that will present a list of pool VMs.

While MBeans have no hierarchy, perfino organizes them into a tree by taking the object domain name up to the first colon as the first tree level and using all properties as recursively nested levels. The property value is shown first with the property key in brackets at the end. The type property is prioritized to appear right below the top-level node.

Attributes

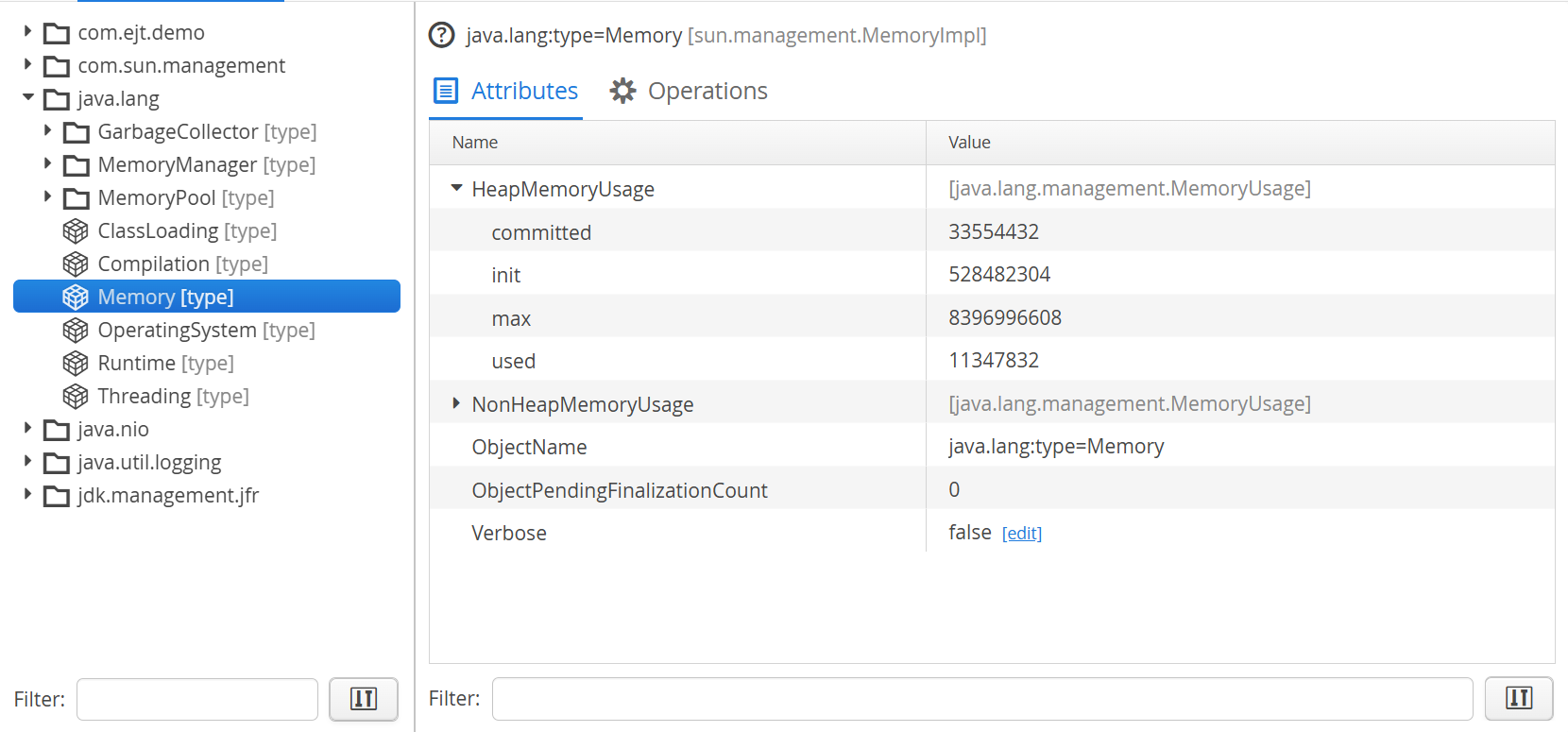

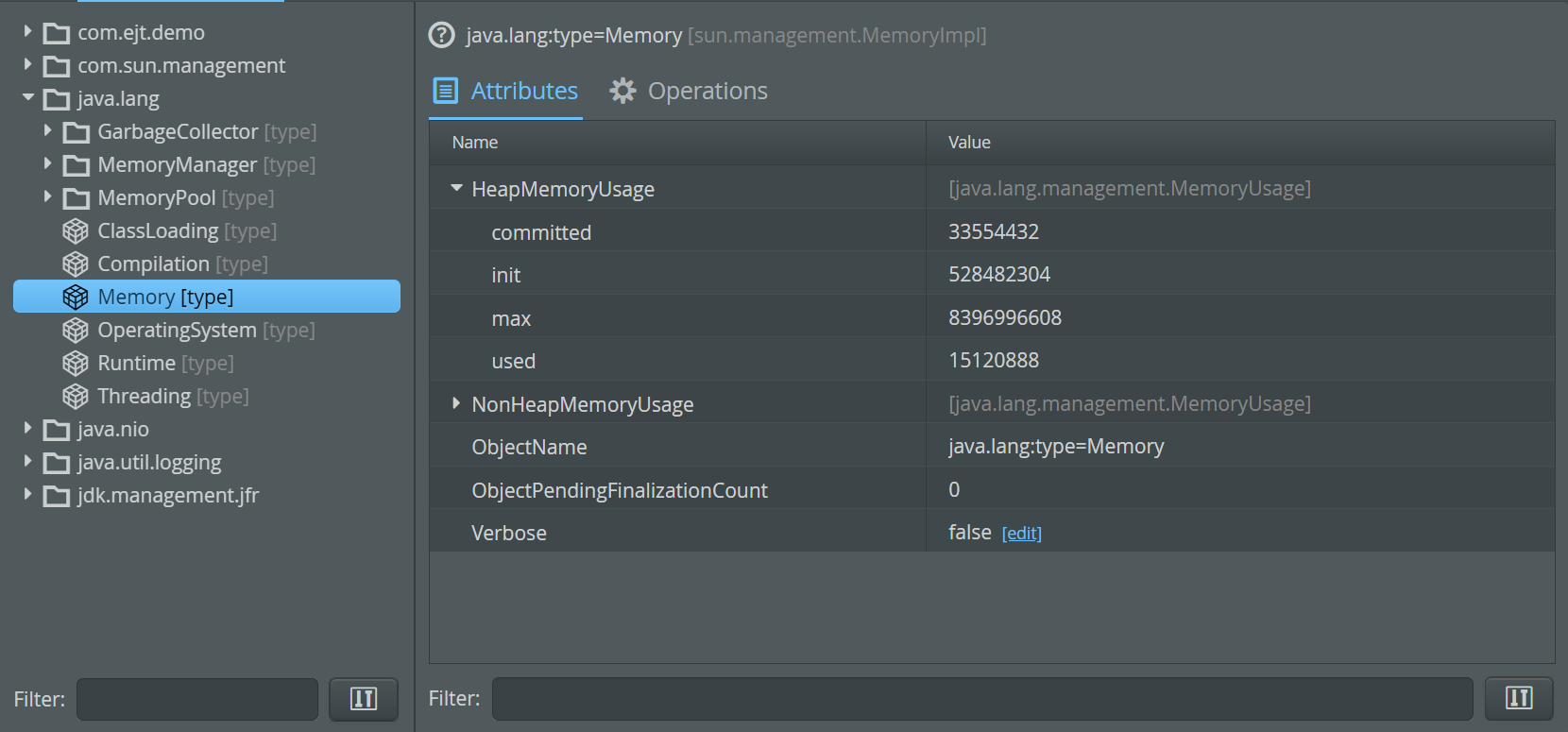

At the top level of the tree table showing the MBean content, you see the MBean attributes.

The following data structures are shown as nested rows:

• Arrays

  Elements of primitive arrays and object arrays are shown in nested rows with the index as the key name.

• Composite data

  All items in a composite data type are shown as nested rows. Each item can be an arbitrary type, so nesting can continue to an arbitrary depth.

• Tabular data

  Most frequently you will encounter tabular data in MXBeans where instances of java.util.Map are mapped to a tabular data type with one key column and one value column. If the type of the key is a simple type, the map is shown "inline", and each key-value pair is shown as a nested row. If the key has a complex type, a level of "map entry" elements with nested key and value entries is inserted. This is also the case for the general tabular type with composite keys and multiple values.

Optionally, MBean attributes can be editable in which case an edit link will be displayed next to their value. MBean attributes can only be edited by a user with at least the "profiler" access level. Composite and tabular types cannot be edited in the MBean browser, but arrays or simple types are editable.

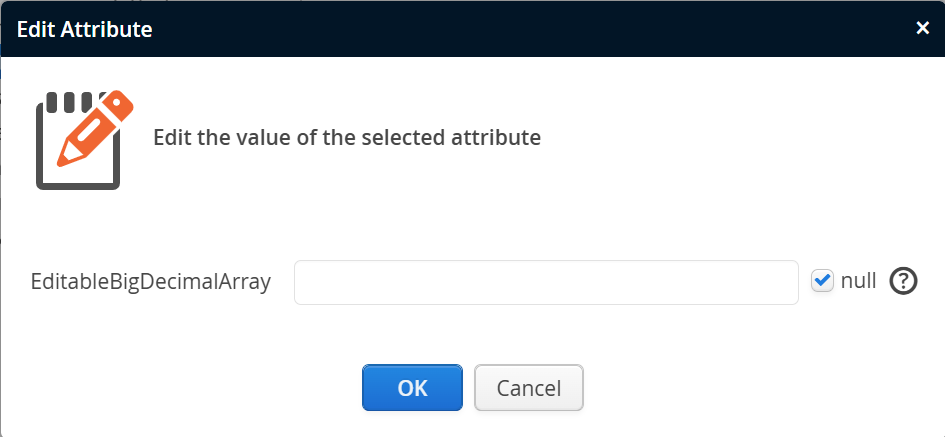

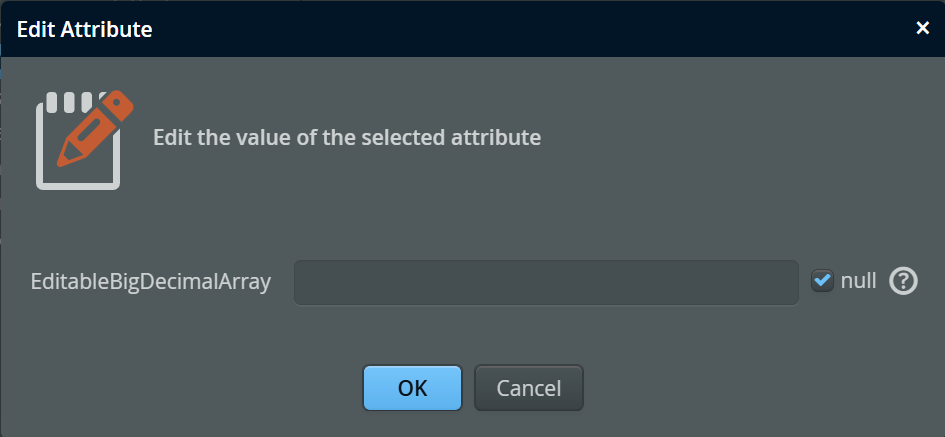

If a value is nullable, such as an array, the editor has a check box to choose the null state.

Array elements are separated by semicolons. One trailing semicolon can be ignored, so 1 and 1; are equivalent. A missing value before a semicolon will be treated as a null value for object arrays. For string arrays, you can create empty elements with double quotes ("") and elements that contain semicolons by quoting the entire element. Double quotes in string elements must be doubled. For example, entering a string array value of

"Test";"";;"embedded "" quote";"A;B";;

creates the string array

new String[] {"Test", "", null, "embedded \" quote", "A;B", null}

perfino can create telemetries from numeric MBean attribute values. When you define an MBean telemetry line in the recording settings, the Select button will bring up an MBean attribute browser with a VM selector on top. After you select a VM, you can choose an MBean attribute. Contrary to the MBean browser, the attribute rows are selectable in this case.

A telemetry can also track nested values in composite data or tabular data with simple keys and single values. When you chose the nested row, a value path is built where path components are separated by forward slashes.

Operations

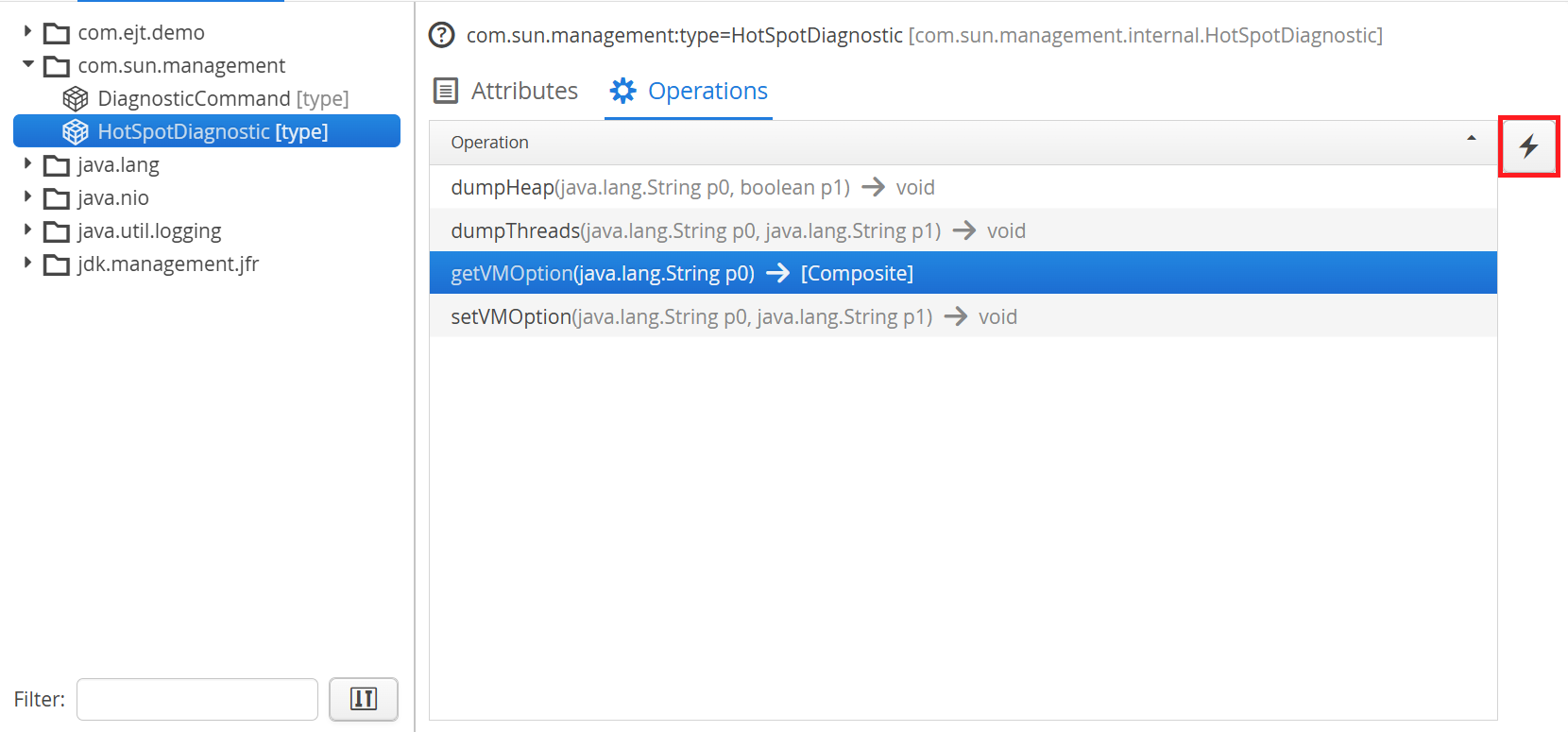

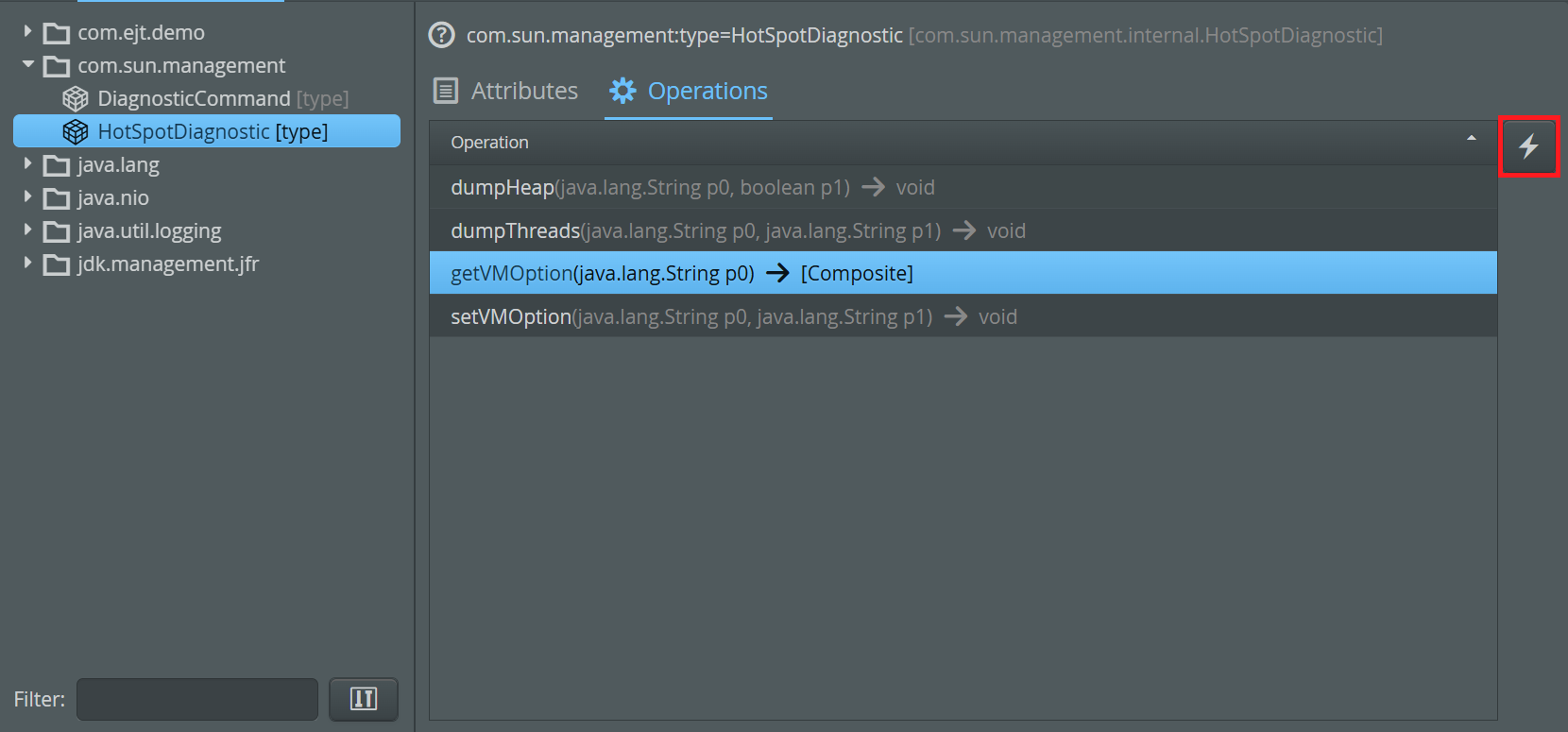

In addition to inspecting and modifying MBean attributes, you can invoke MBean operations and check their return values. MBean operations are methods on the MBean interface that are not setters or getters. To be able to invoke MBean operations, a user has to have at least the "profiler" access level.

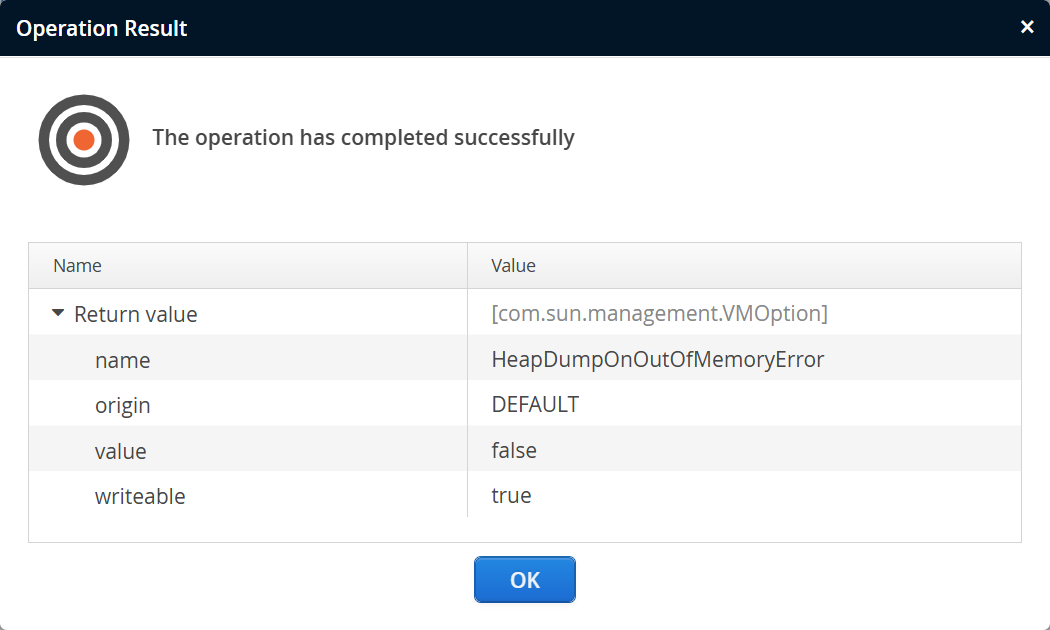

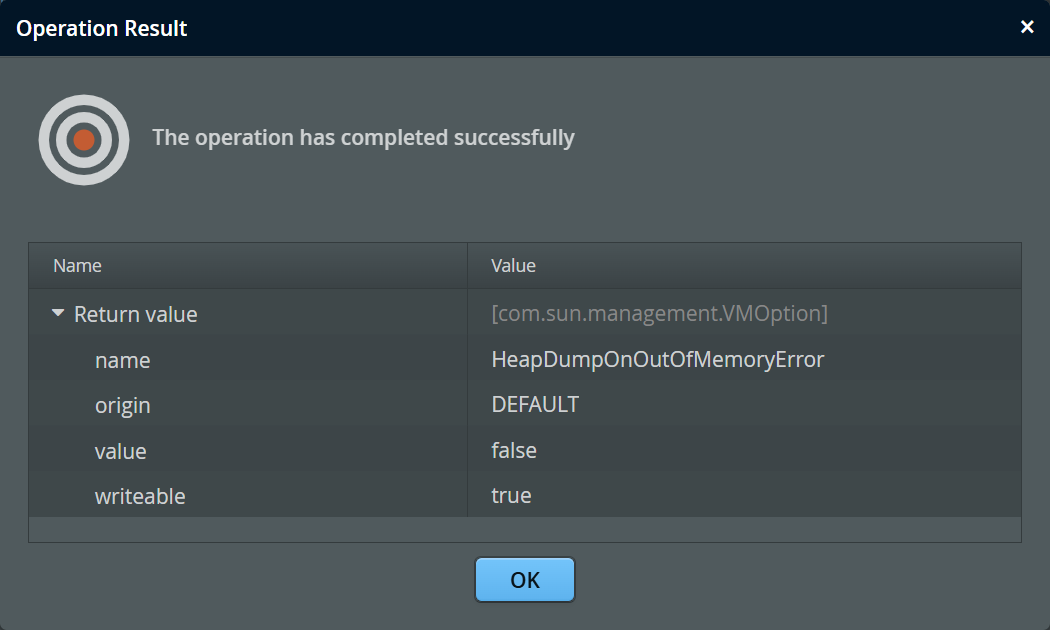

The return value of an operation may have a composite, tabular or array type, so a new window with a content similar to the MBean attribute tree table is shown. For a simple return type, there is only one row named "Return value". For other types, the "Return value" is the root element into which the result is added.

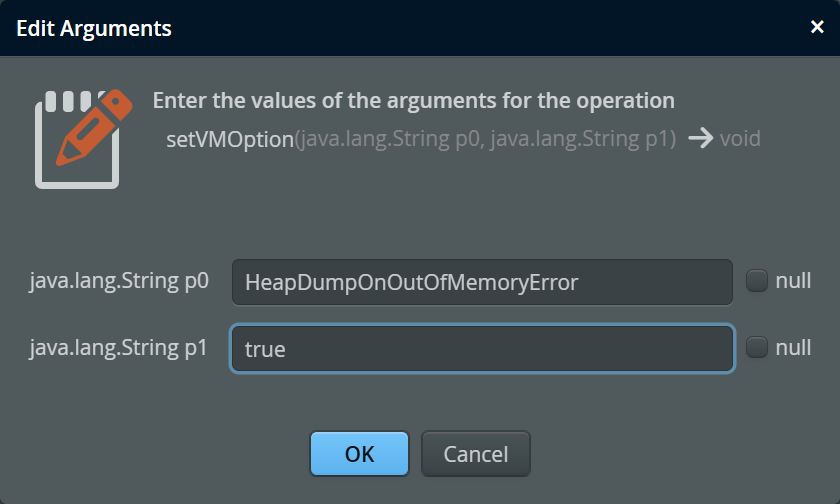

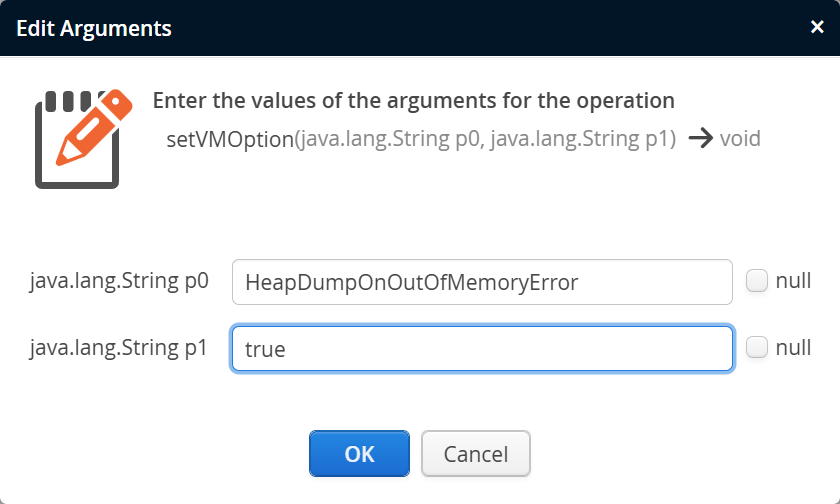

MBean operations can have one or more arguments. When you enter them, the same rules and restrictions apply as when editing an MBean attribute.
