Please see the change log for a detailed list of all changes.
An HTTP probe has been added that measures all outgoing HTTP calls and shows them as a probe hot spots view Both synchronous and asynchronous calls are measured. The supported HTTP clients are:
In the call graph, outgoing HTTP calls are shown with their own node, just like other probes.
All HTTP calls are tracked between VMs that are monitored by perfino, so the call tree view and the call graph will show links between those VMs. In the call graph, you can inspect the involved transactions on both sides by selecting the appropriate edge.
The probe configuration allows you to select which URLs are tracked and which are recorded for the probe. For example, you may want to prevent perfino to add the tracking HTTP header to calls that go to external services and you may not want to record tracked HTTP calls for the probe.
By default, only a limited number of URL path segments are retained by the probe and query parameters are discarded. This strategy reduces the load on the database and provides better hot spots. To tune the recording, you can decide to retain more path segments or to retain selected query parameters.
Finally, the time measurement of HTTP calls may include the entire time while the response body is being consumed or stop after the initial response is received.
A dark mode has been added. You can switch the theme with the theme selector button in the header at any time. The selection is persistent for your browser across sessions.
The default theme is the light theme, but this can be changed in the general settings.
The perfino UI is now responsive and works on mobile devices down to a viewport width of 320px.
Not only the dashboard, but all views and configuration screens adapt to the screen width of the device.
JDK Flight Recorder (JFR) snapshots can be recorded from the VMs view. This is a non-intrusive way to collect more low-level profiling data for a selected JVM. A corresponding trigger action is also available.
In addition to the recording duration you can choose one of the predefined settings or upload a settings file that was exported from the "Flight recording template manager" in JMC.
When the snapshot is ready, you can download it from the perfino UI and open it in JProfiler or in JMC.
In perfino's sister product JProfiler, both CPU and memory analysis as well as probes are available to deep-dive into the method-level details of the profiled JVM.
Another new snapshot that can be taken from the VMs view as well as with a trigger action is the shallow memory snapshot that could previously only be recorded in the "Memory" data view. This is a low-overhead memory snapshot that gives you an overview on how many objects are on the heap.
x
The action in the VMs data view switches to the "Memory" view to display the data, the trigger action simply adds the snapshot to the database, just like for the periodic snapshots.
With the new Webhook trigger action, you can invoke URLs when a trigger fires. Integration with chat servers, workflow tools or other monitoring solutions can often be implemented in this way.
Besides the URL, you can choose the HTTP request method, define headers and pass additional data as JSON or form data.
With LDAP authentication you can delegate user authentication to an external LDAP server, such as Microsoft Active Directory. An LDAP server can be defined in the general settings. The protocols LDAP, LDAPS and StartTLS are supported, in addition, you can specify a user for performing searches.
LDAP users can be mapped automatically, by defining a search base and a user filter. When a user logs in, the specified user name will be tested against all mappings and the first matching mapping will be used.
After a user is authenticated by an LDAP server, a local user is created in perfino with an "LDAP" user type and an LDAP DN. Instead of mapping users automatically, you can also create such users manually and only defer the password authentication to the LDAP server.
Telemetries now offer options for displaying the y-axis in the context menu. One problem with telemetries is that expected outliers cause an excessive scale of y-axis for analyzing the regular data. Similarly, in stacked telemetries not all data lines have comparable magnitudes.
Switching to a logarithmic scale for the y-axis solves this problem.
Another problem is that the automatic adjustment of the y-axis while moving between time ranges can make it difficult to compare the absolute values. Now you can freeze the y-axis in the context menu.
The perfino UI is now much more keyboard friendly. Tables can be navigated with the keyboard, and there is a focus indicator for selected rows. Actions in table rows can be invoked with the enter key.
A maximum retention time for transactions is now configurable. The default for new installations is 60 days. When upgrading from 3.x or earlier, the "Indefinitely" setting is activated, which was the only available behavior in previous versions.
This limited retention reduces the size of database, especially in situations where a lot of different transaction names or payloads have been recorded that are otherwise never removed from storage.
perfino's licensing model has been changed to a micro service-friendly licensing scheme: Only the perfino installation requires a license, the number of monitored VMs is not important anymore.
There is also no restriction on the number of machines on which the monitored VMs are running.
Each separate perfino installation requires its own license.
perfino now has a comprehensive overload protection mechanism. When too much data is being collected, perfino consolidates data under "capped description" nodes.
In the general settings, you can configure separate caps for payload data (for example SQL strings), transaction names and remote call sites.
If any cap is hit, perfino sends you an inbox message. After fixing the configuration, you can reset the cap counters.
You can now perform hot backups of the database with the REST API. By calling the
/triggerBackup URL, a directory named "backup" is created in the data directory that
can be renamed to "db" when you need to restore the backup.
If the REST API is impractical to use, or if you have not activated it for your perfino installation, you can also create a file named trigger_backup in the perfino data directory. After a few seconds, the file will be deleted and the backup will be performed.
Also, the perfino database has been split into two parts, a database for the configuration and a database for the recorded data. You can discard the database with the recorded data if you want to start with a clean slate, but keep all your settings.
The database size has been reduced considerably through various optimizations and shorter retention times.
A problems view has been added to the dashboard. If policy violations are detected for a business transactions ("slow", "very slow", "overdue" or "error") a row is added to the problems view, showing how many such issues have occurred in the selected time range.
You can configure absolute and relative limits for each policy violation type to limit the minimum severity for which a business transaction shows up in the problems view. Also, you can decide if the histogram should be drawn for the invocation counts or the percentages.
The transaction table in the dashboard has been redesigned. It now shows count, average time and total time for your most important business transactions.
Depending on your perspective, each of theses numbers can be the most important one. It's called the "primary measure" and it determines for which column an inline histogram is shown in the table.
All elements in the dashboard now link to the VM data views. When you click on rows in any dashboard table or a pie slice in the policy violation chart, the corresponding VM data view is shown with the appropriate view parameters, so you can start your drill-down directly in the dashboard.
In the transaction timeline, you can now right-click any data point and jump to the call tree or hot spots view.
Generally, all sparklines now link to their full telemetry views with similar time ranges, also in the columns of the "VMs" view.
Telemetries have been enhanced. In perfino 3, there are a lot more time ranges, and the new zoom buttons allow you to quickly see more or less data. Double-clicking on the timeline zooms in at that location, if possible.
The context menu now contains actions for jumping to other relevant views at the selected point in time. Besides call tree and hot spot views, this can include probe hot spot views for probe telemetries.
When you zoom or navigate the time range to earlier or later times, vertical scale changes are animated, this makes it a lot easier to interpret data. Navigating is now more convenient with the additional inline navigation buttons that appear when you hover at the edges of the telemetry.
Moving to earlier or later times now shifts the starting point of the displayed interval by 1/3 of the total display range. To skip full intervals, press the CTRL key while navigating.
When you select the "Telemetries" or the "Custom telemetries" node in the view selector, you now see an overview for all contained telemetries with sparklines for the last hour and the last day. Clicking on any sparkline will show the full telemetry view with a similar time range.
Transaction timeline for call tree and hot spot views. The new transaction telemetry at the bottom gives you a better context for the main view by showing the displayed time range with a different background. Also, it allows you to navigate to a particular interval by clicking on a data point.
The timelines for single transactions are still available and hide the default transaction time line. With the "close" button, you can restore the default transaction timeline.
perfino is now free for development with a single VM and 24 hours of historical data.
The free development license and an evaluation license for 20 VMs can be activated directly in the installer after you download perfino.

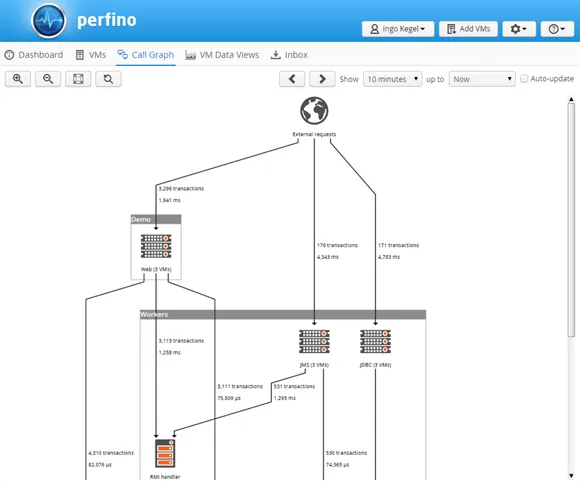

perfino has a new look. New design, new colors, new icons and now also optimized for Retina displays.

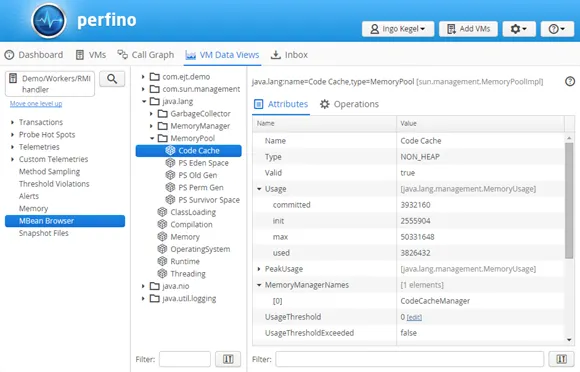

An MBean browser has been added. When a single VM is selected in the "VM Data Views", the MBean browser shows the registered MBeans in the JVM, regardless of whether the MBean server has been exported with a JMX connector server or not.

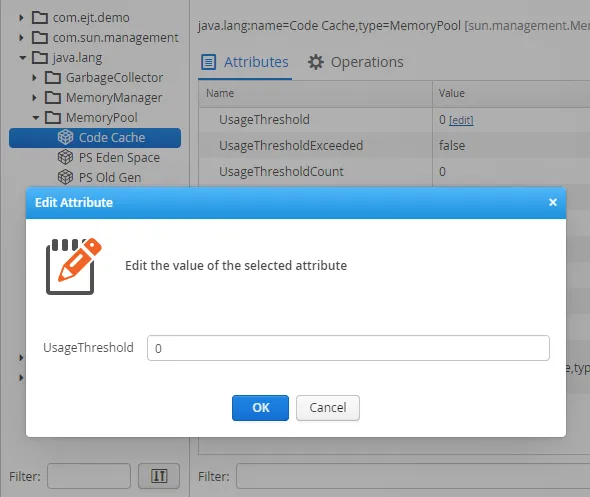

Editable attributes of all simple types and their arrays can be edited by the MBean browser. The default MBeans in the JVM already expose a lot of interesting diagnostic options. Many frameworks and most application servers can be configured with their MBeans.

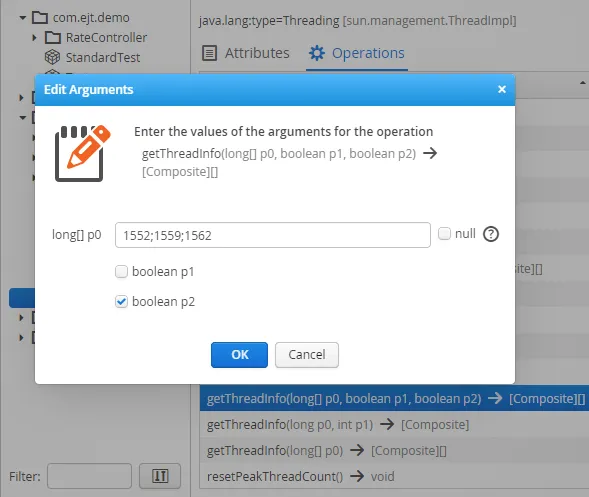

MBeans also expose operations, for example, to control life-cycle aspects of an application server. MBean operations may have parameters, in which case perfino will ask you for their values.

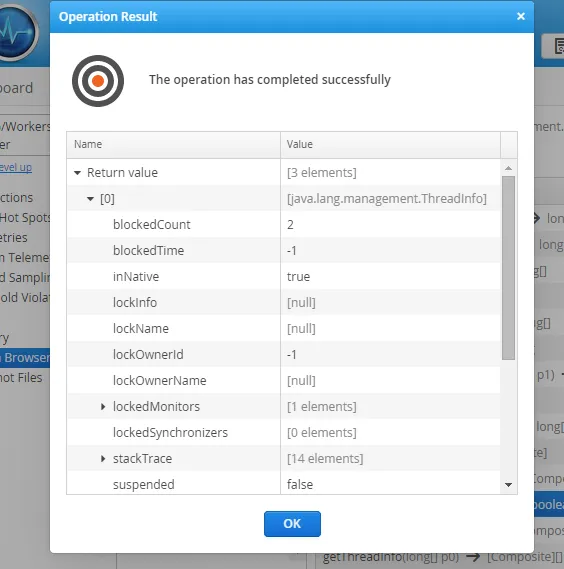

The return value of an operation is displayed in a separate window. In the screen shot below, you can see how perfino combines nested arrays and composite data into the same tree table.

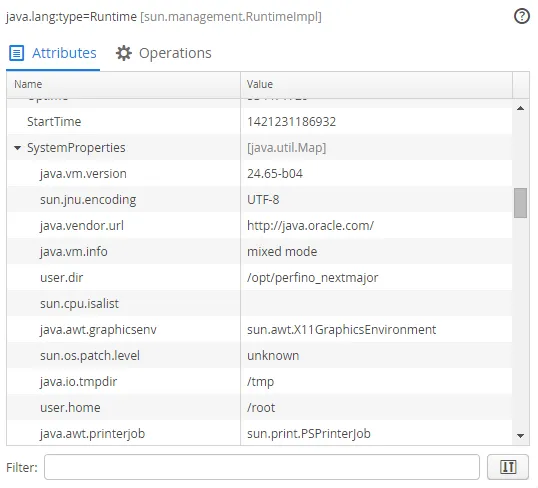

Tabular data with simple keys and single values are displayed inline. This makes it easy to read maps from MXBeans, which are converted into tabular data. In the screen shot below, the system properties from the "Runtime" MXBean are shown.

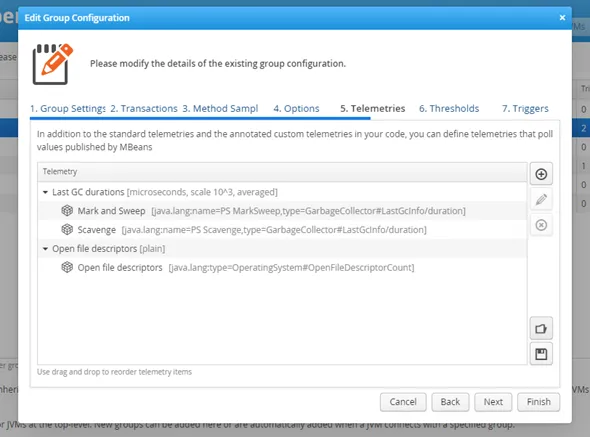

perfino can now record telemetries based on MBean values. The telemetries are configured in the new "Telemetry" step of the recording settings. Each telemetry can have a number of lines that are shown in the same graph.

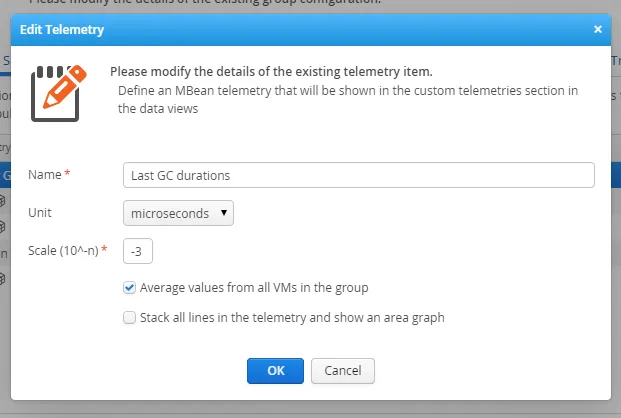

Telemetries can have a unit and optionally a scaling factor. Contained telemetry lines can be stacked, and for multiple VMs, the displayed values can be averaged or summed.

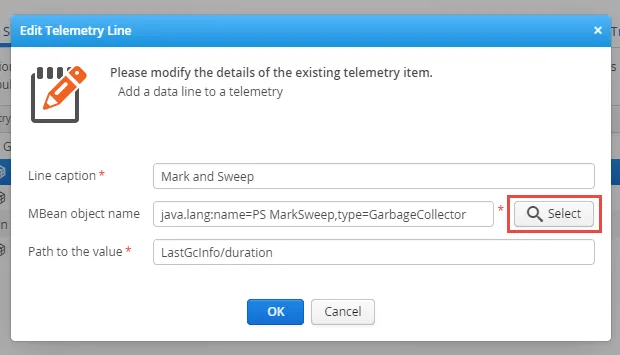

A telemetry line is defined with a caption, an MBean object name and a path to a numeric value. The path can simply be an attribute name or a hierarchical path into a composite or tabular data structure.

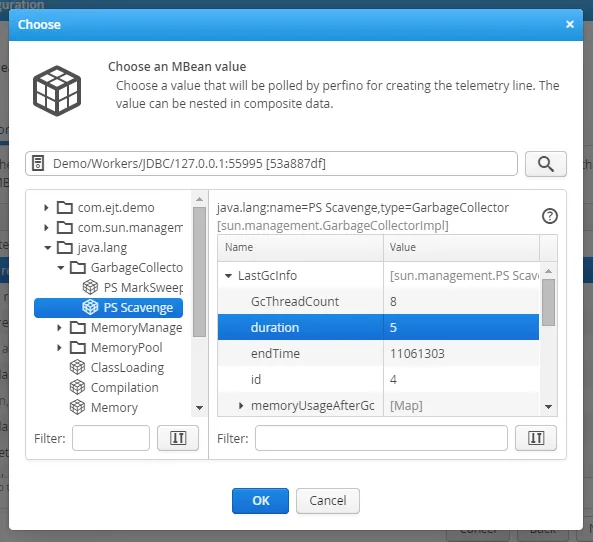

To make it easy to get this configuration data, the "Select" button in the telemetry line configuration dialog brings up an MBean browser that lets you choose the attribute from a connected VM.

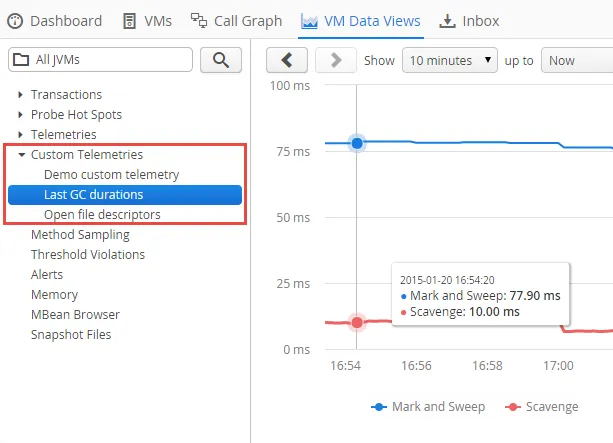

In the "VM Data Views", MBean telemetries are displayed under that the "Custom telemetries" view category node, together with Devops telemetries from annotated static methods. That node only exists if at least one such telemetry is being recorded.
Devops telemetries have been enhanced to match the capabilities of the new MBean telemetries.
The @Telemetry annotation now has a format parameter of type @TelemetryFormat that allows you to set the telemetry unit and scale factor. Also, you can determine whether the telemetry lines should be stacked and whether telemetry values for multiple VMs should be grouped or summed.
A typical usage now looks like
@Telemetry(value = "Job latency",
format = @TelemetryFormat(value = Unit.MICROSECONDS,
scale = -3))
A REST API for exporting recorded data has been added. In addition to the manual export capabilities in the web frontend, you can start a REST export API service by setting the apiPort property in perfino.properties to a non-zero value.
Supported export formats are plain text (CSV), JSON and XML, depending on the Accept header of the HTTP request.
The API allows you to list groups, VMs, and available telemetry names that serve as input parameters to other export commands. It is possible to export all transaction-related views, probe hot spots, alerts and threshold violations.
For example, if the API is running on port 8500, a call to export the call tree of the recorded business transactions of the last 10 minutes for all VMs in the group "Web", the URL would be
https://localhost:8500/transactions/callTree?group=Web&interval=10min

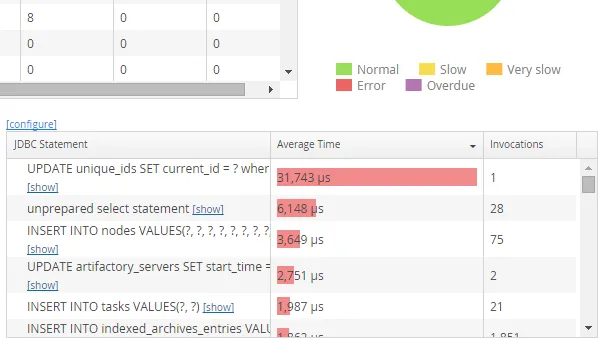

perfino now shows probe data in the dashboard. Many performance problems arise from database issues, so having database operations in the dashboard will give you an immediate idea of whether some operations are misbehaving.
The displayed probe type can be selected with the "Configure" link above the table.
