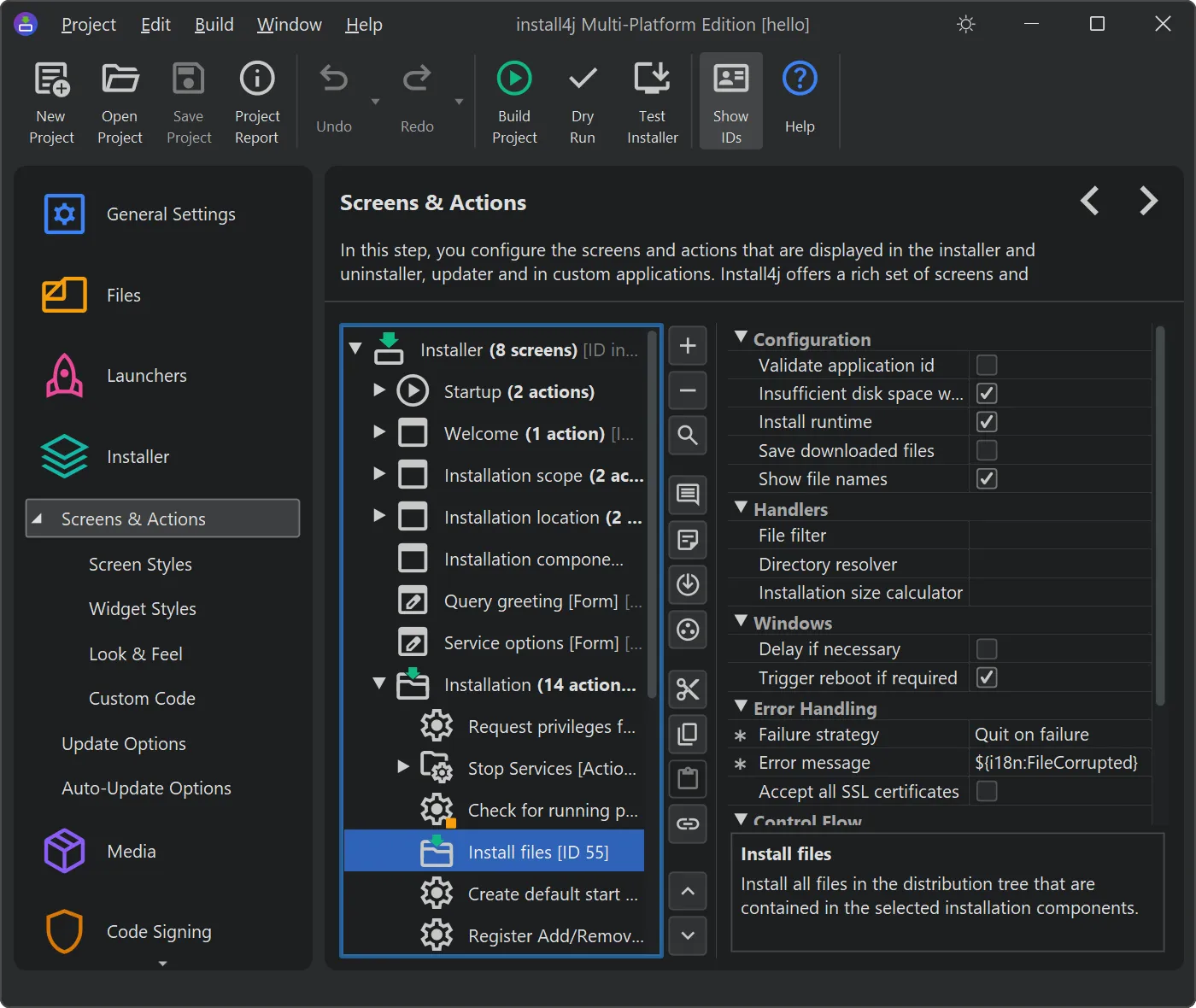

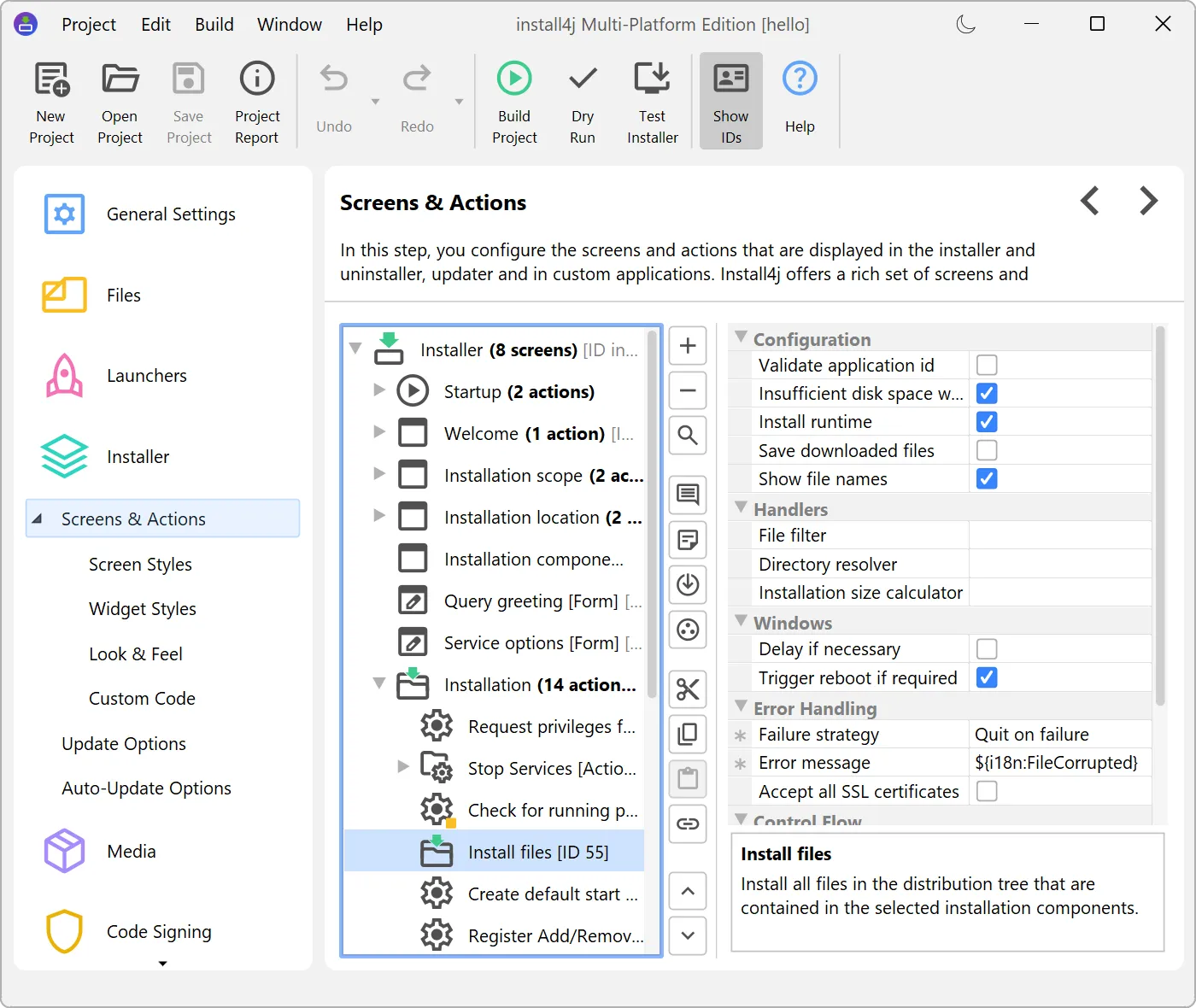

The IDE has a new UI with a refreshed visual appearance and new icons. We hope you like it! We have light and dark themes. You can see screenshots of them by toggling the dark mode switch at the top of this page.

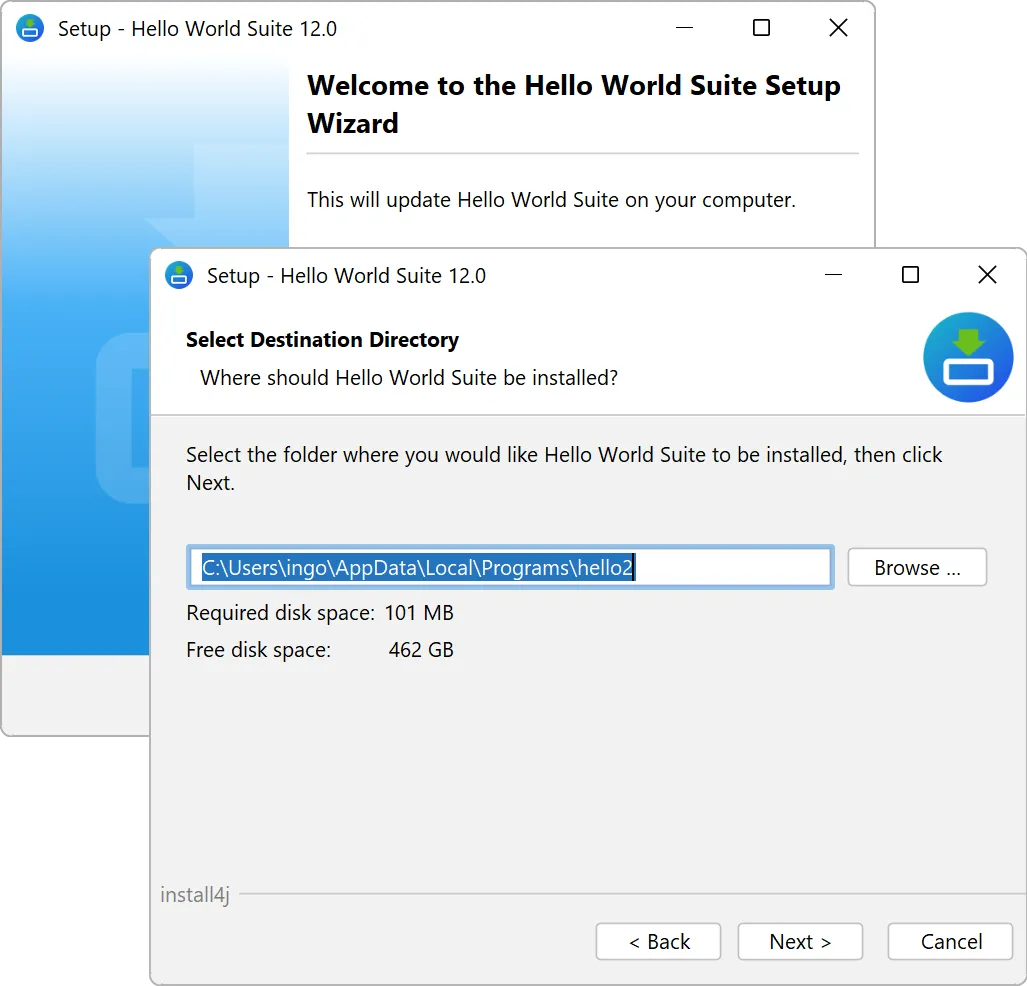

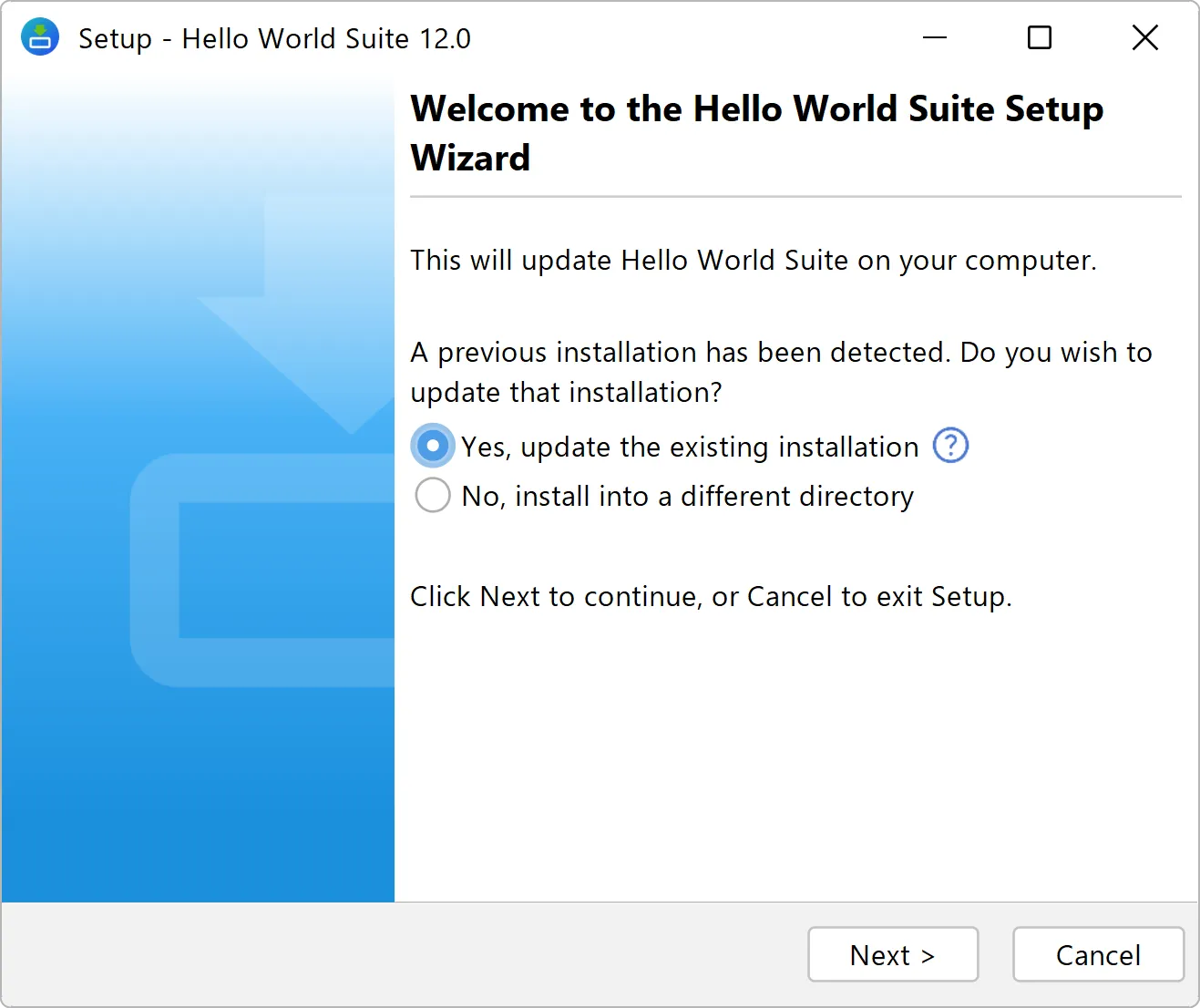

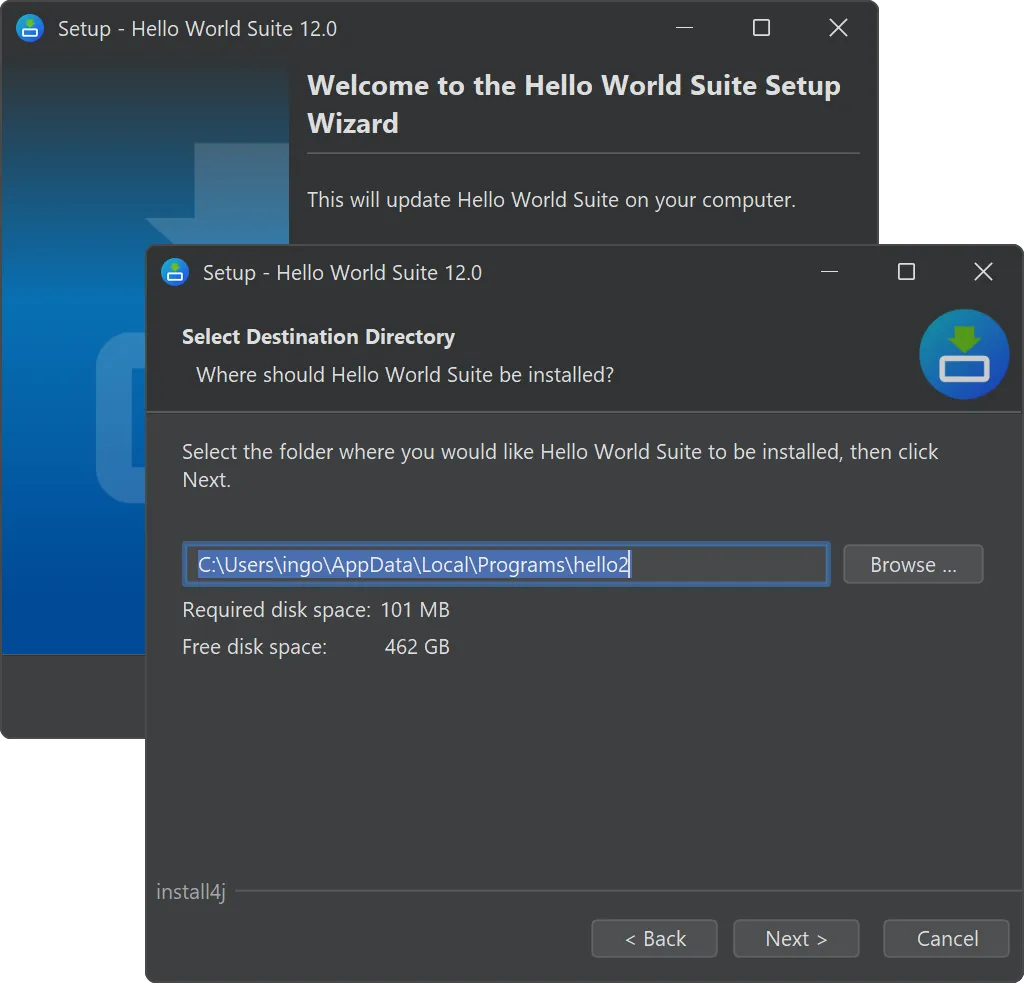

Also, artwork and icons in the generated installers have been updated to a more modern look. All images and icons in the generated installers remain replaceable, but the default icons and images that are shown by the built-in screen styles are updated automatically to the new style.

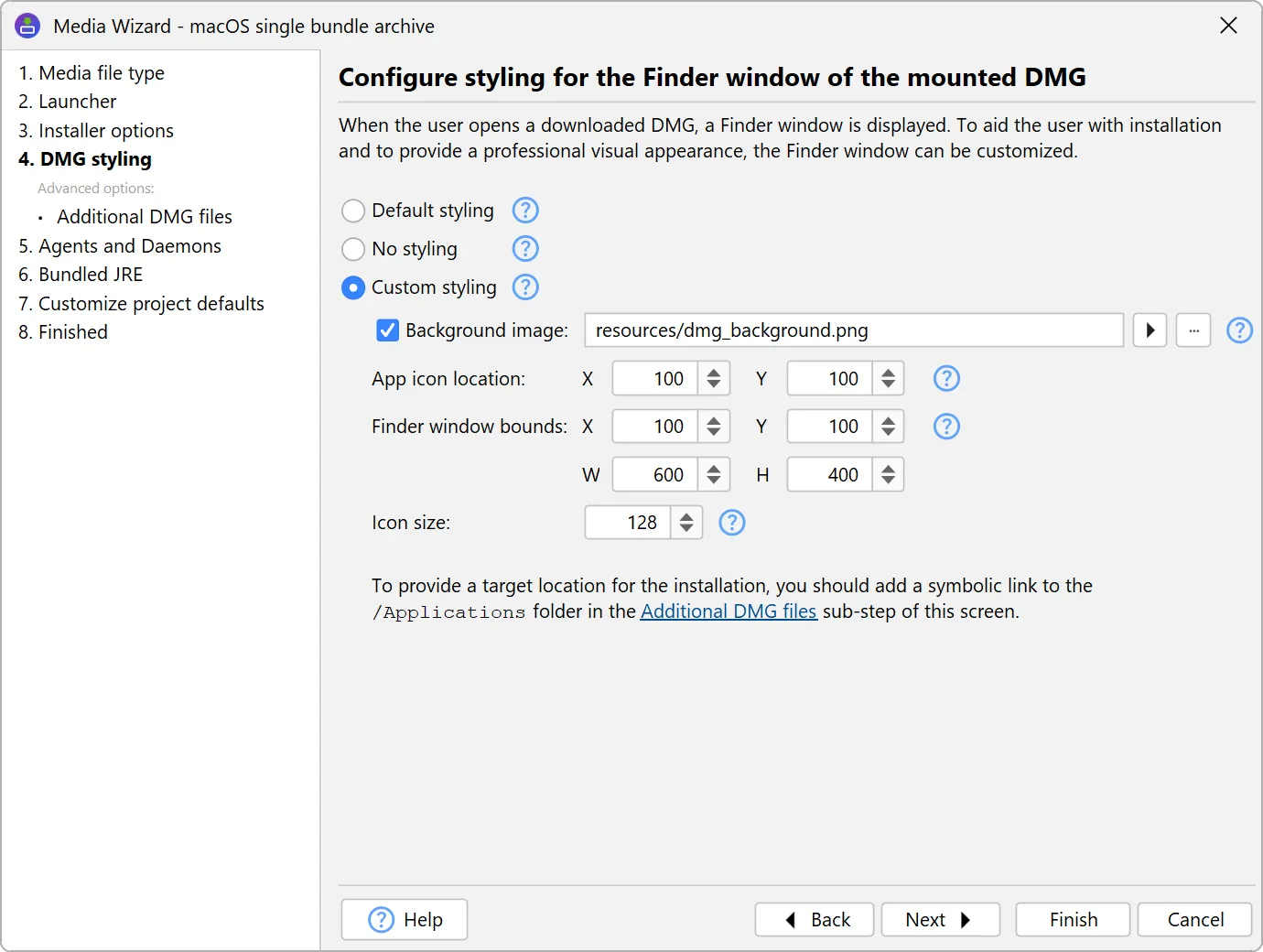

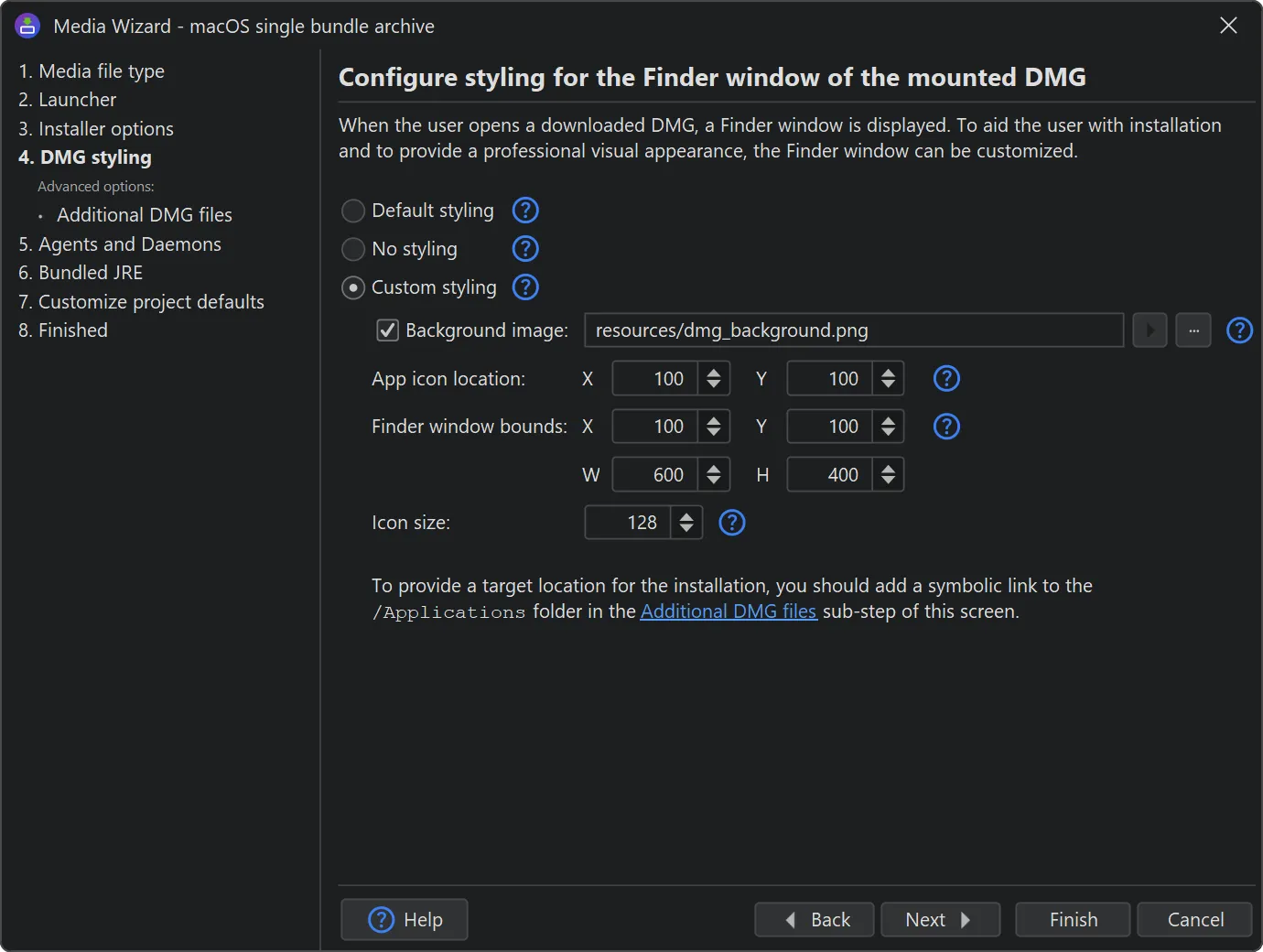

DMGs on macOS can now be styled right in the install4j IDE. You can apply backgrounds, position and size of the app icon manually and add symbolic links like the /Applications directory at arbitrary positions. Also, the bounds of the Finder window can be set.

Previously, you would get plain Finder windows with just the app icon unless you followed a cumbersome procedure on macOS to produce .DSStore files and add them as top-level files to the DMG. Because the file format has now been reverse-engineered, install4j can generate these files in a cross-platform way.

A default styling is applied with a background image and a drop target for the /Applications directory in the case of single-bundle archives. You can also choose not to apply any styling, which is the default when migrating install4j projects from previous versions.

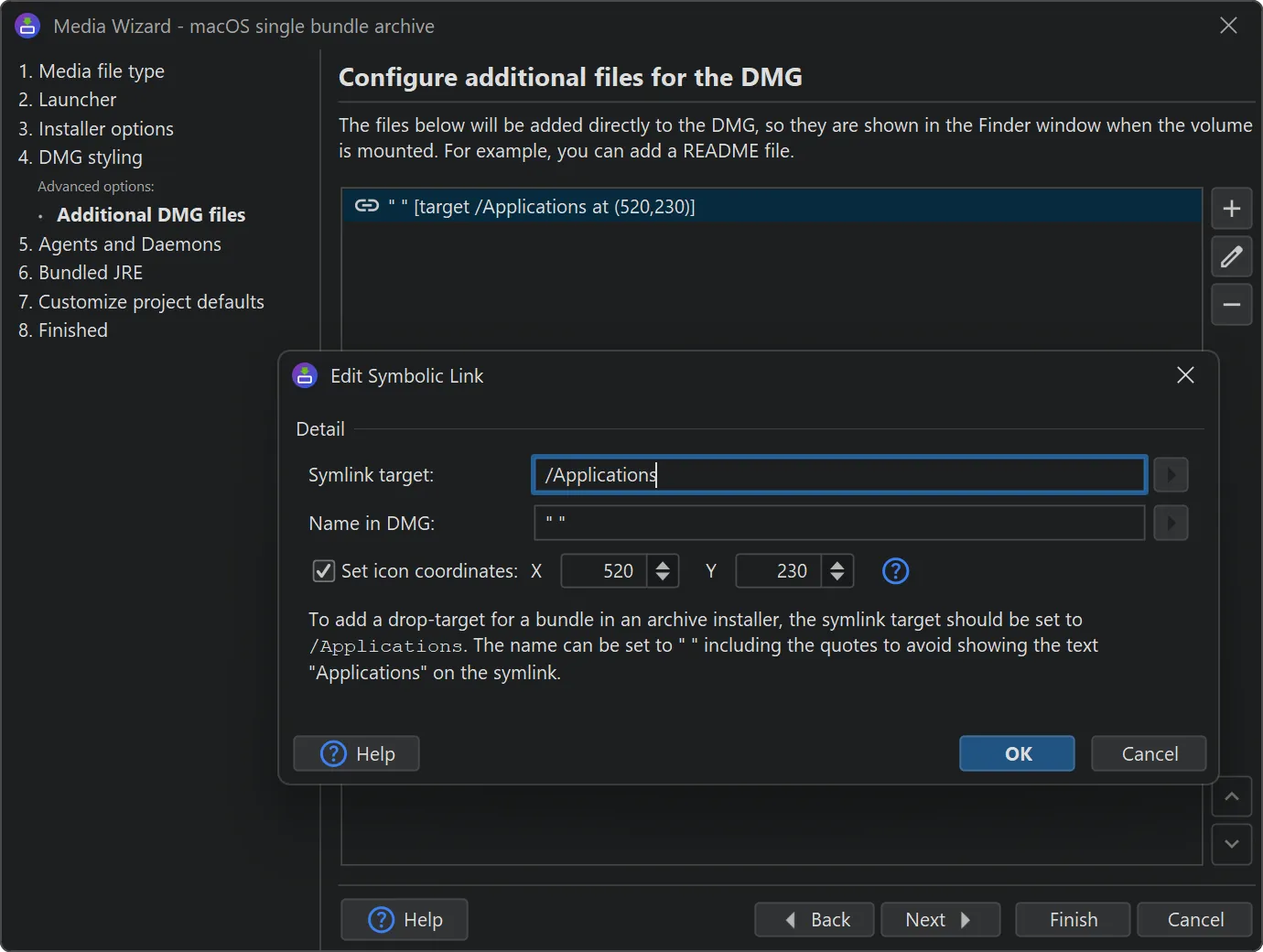

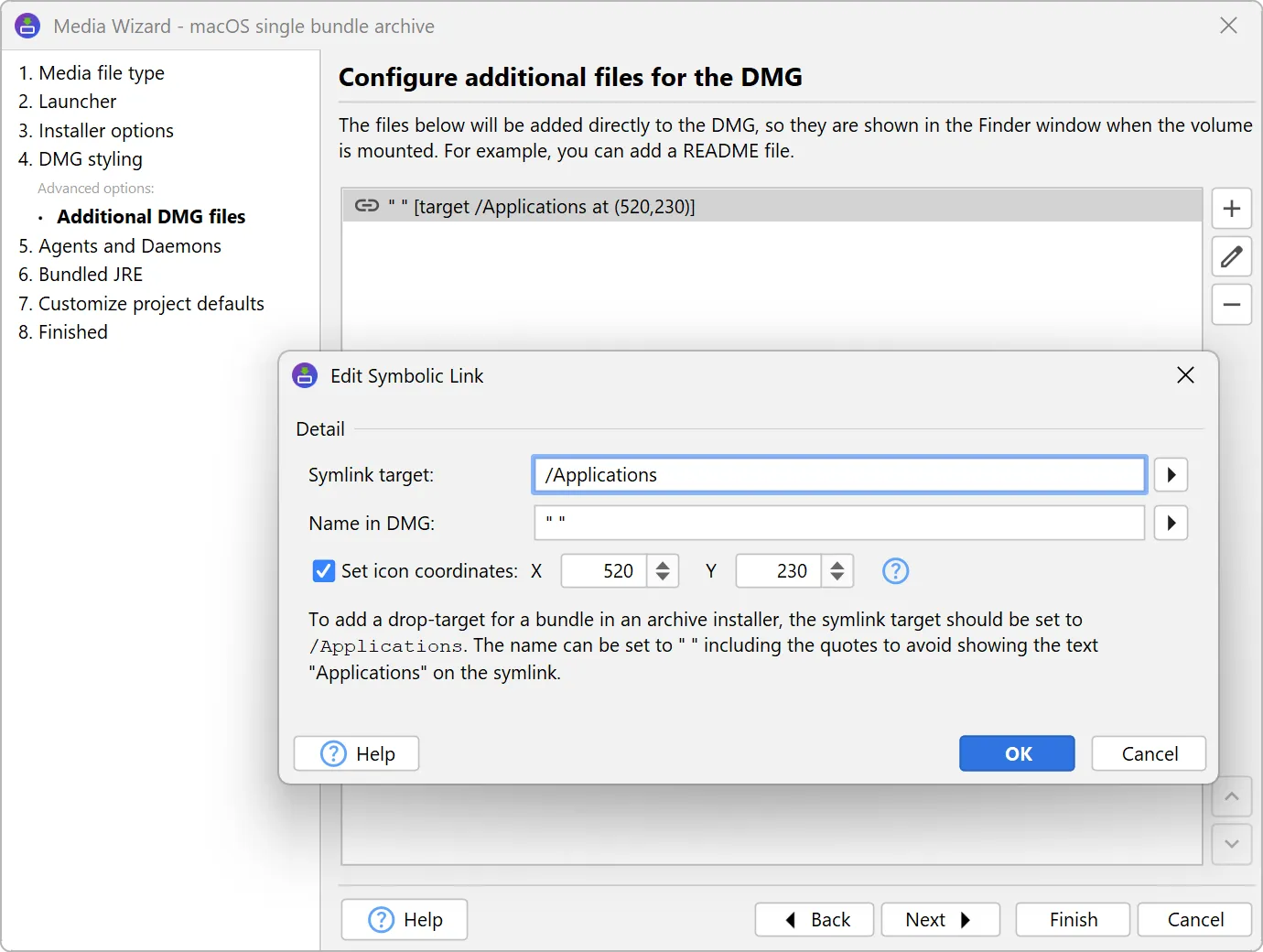

Additional top-level files for the DMG can be specified in a sub-step. You can optionally set icon coordinates to arrange items on the Finder window background.

Widget styles have been added to change fonts, colors, and other aspects of all widgets that are shown in installer applications.

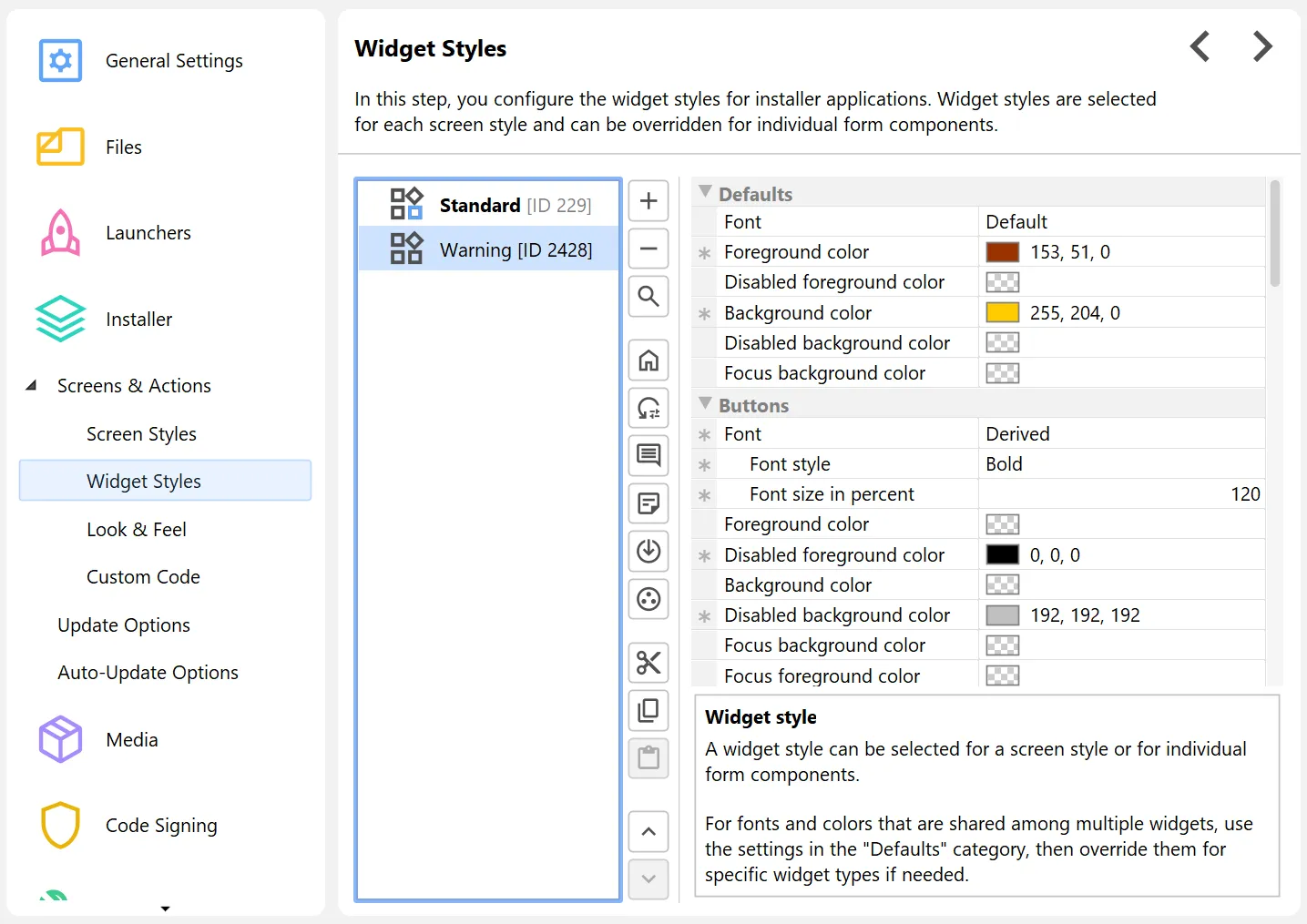

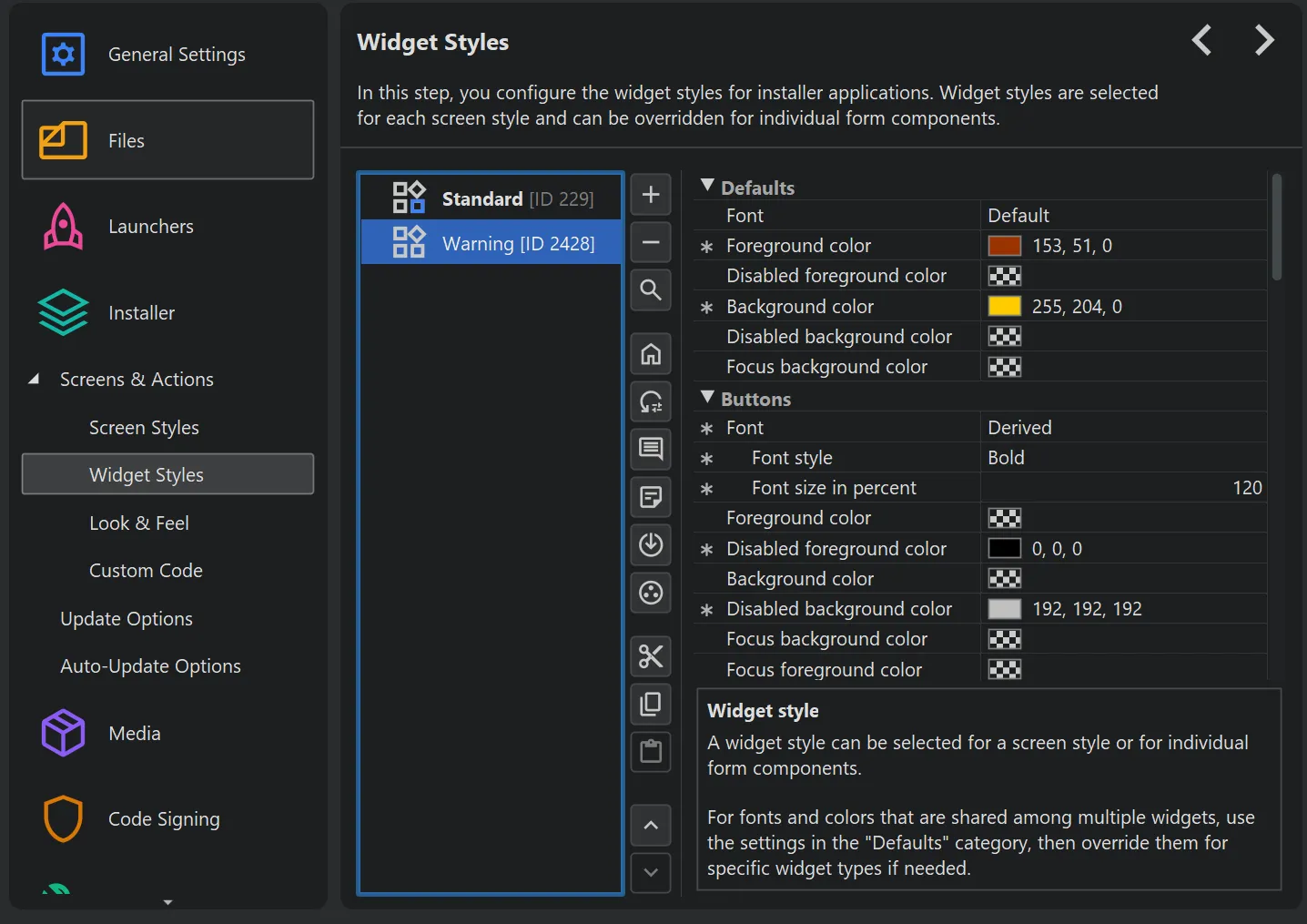

Widget styles are defined on the "Installer->Screens & Actions->Widget Styles" step. You can add multiple widget styles for each project. Each widget style has default colors and font settings that can be overridden for specific widget types.

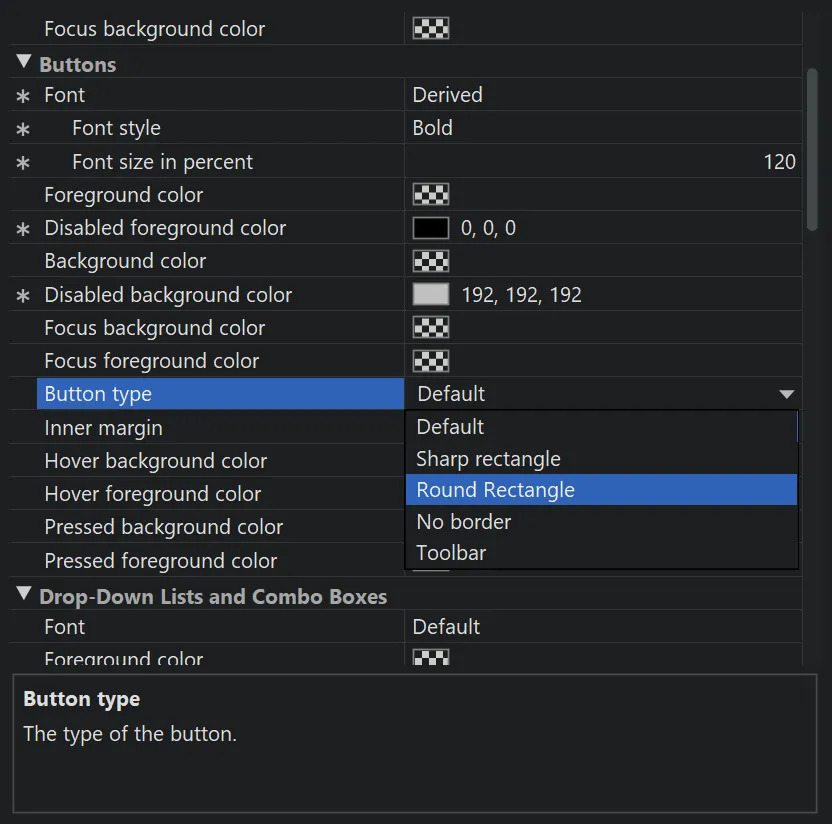

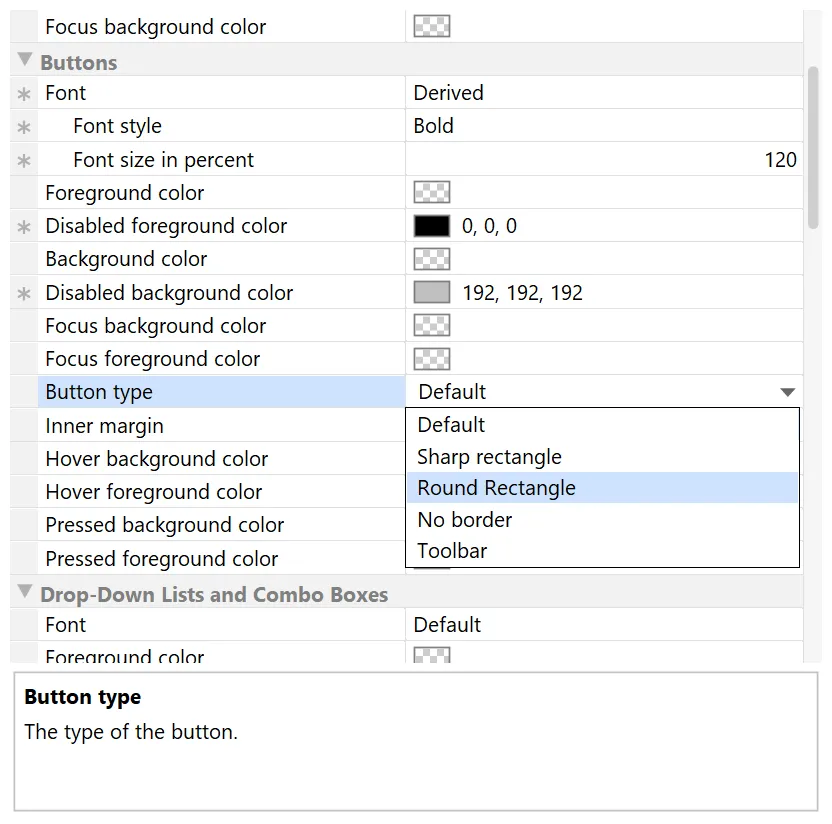

The widgets that are most frequently styled in different ways are buttons. Beyond custom font and custom background and foreground colors, install4j offers different types of buttons, such as borderless buttons, buttons with rounded rectangle borders, or toolbar-style buttons. Colors when hovering over or pressing a button and the colors for the focused state can be configured separately if required.

Besides buttons, the list of stylable widget types includes

Drop-down lists and combo boxes
Hyperlinks
Labels
Lists and trees
Progress bars
Sliders
Text components
Toggle buttons

Also, the background color for frames and dialogs can be set in the widget style.

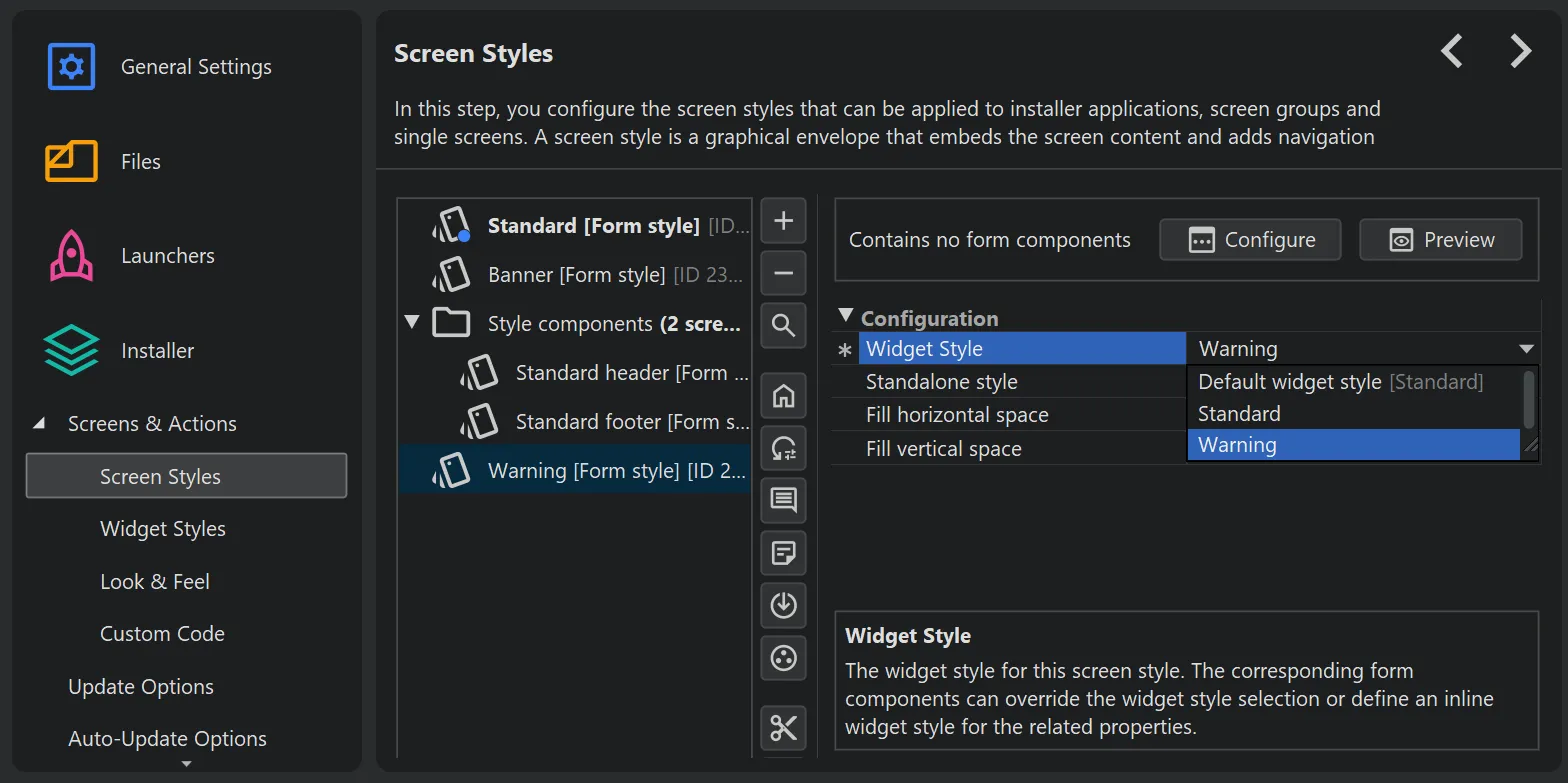

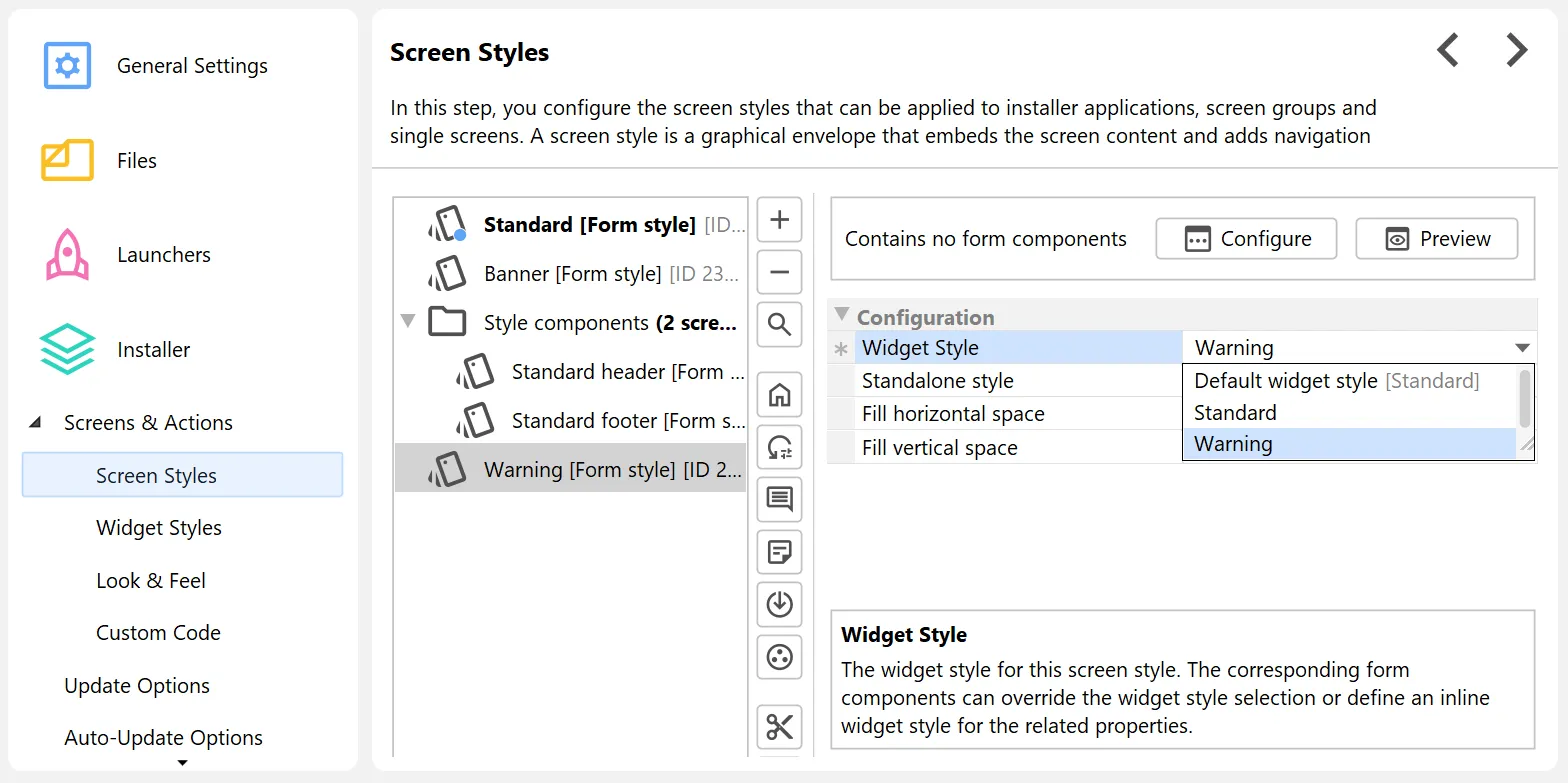

To apply a widget style other than the default style, you can assign it to a screen style. Screen styles in turn are applied to installer applications, screen groups, and single screens, and widget styles are cascaded along with them.

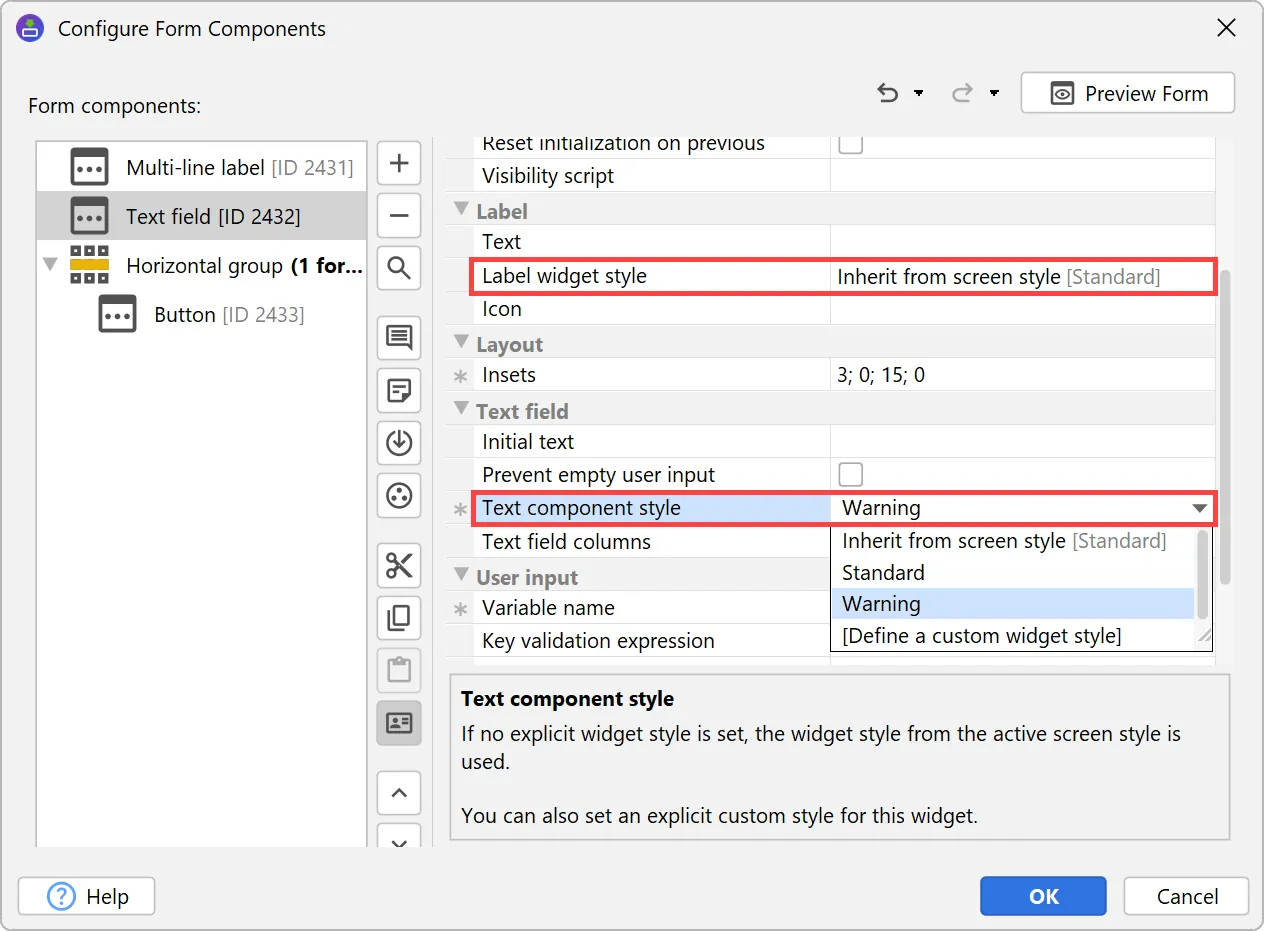

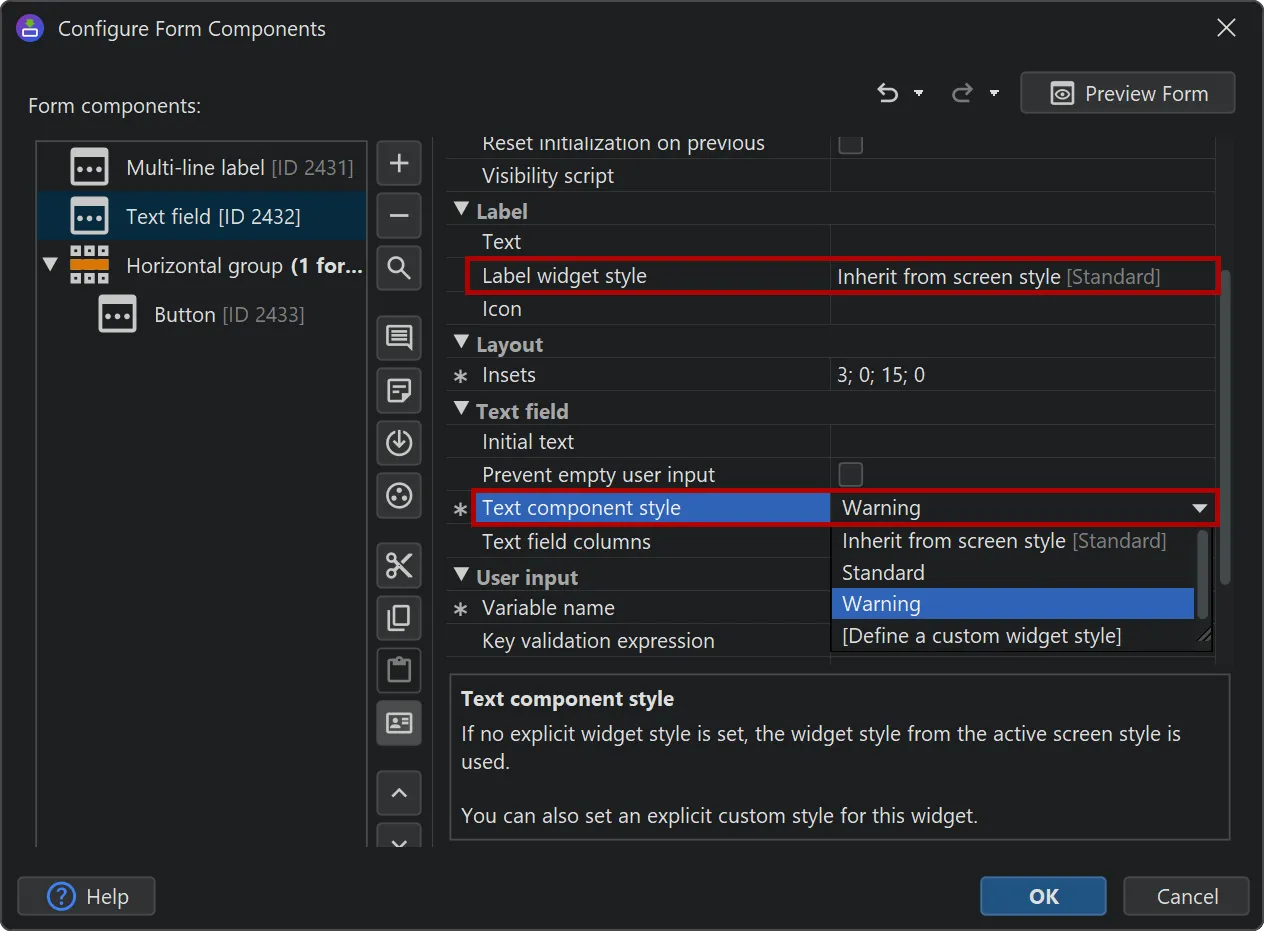

Alternatively, widget styles can be applied on the form component level. Form components can have multiple widget styles for their contained widgets. For example, most form components have an optional leading label that has a separate widget style property.

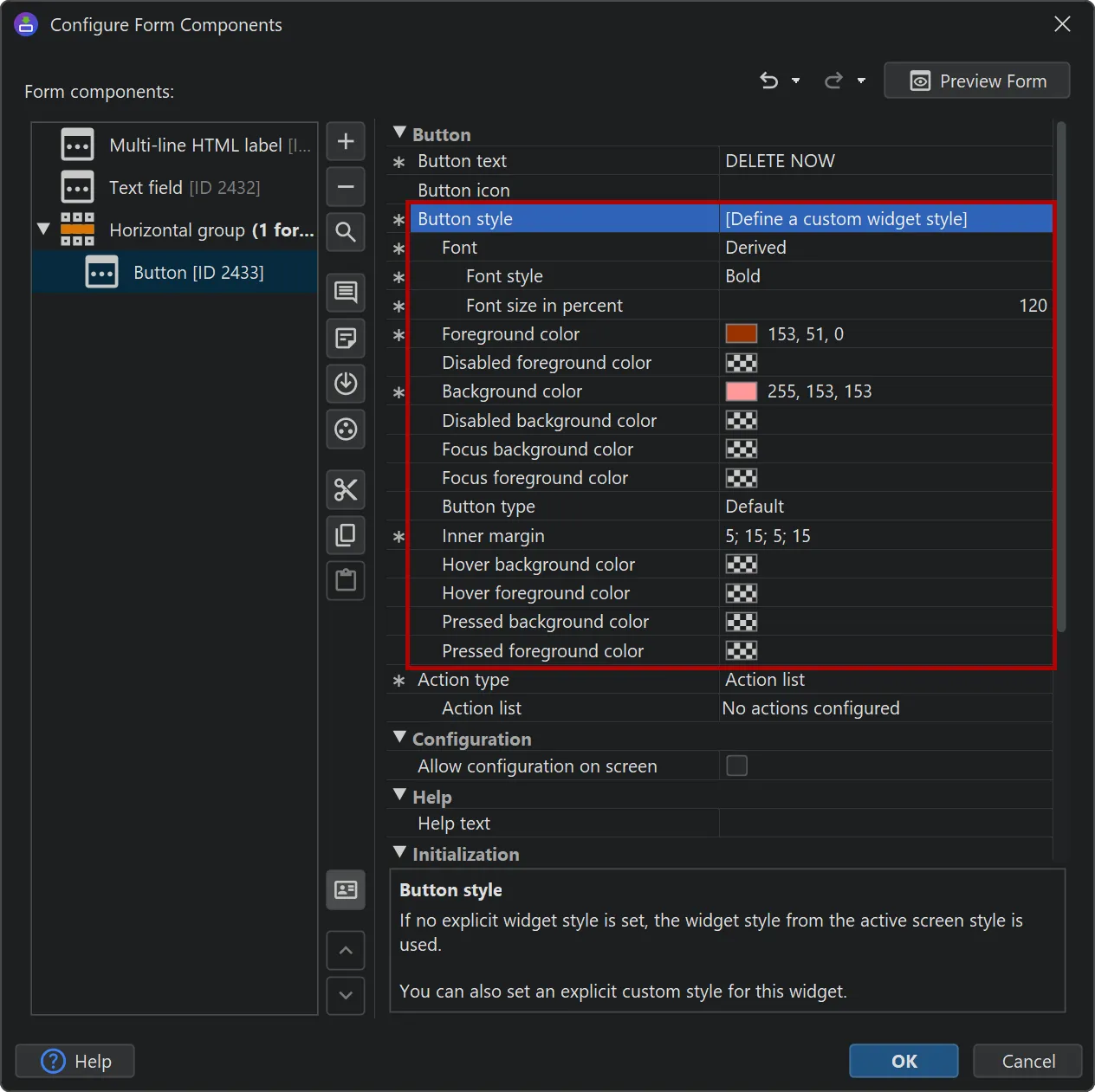

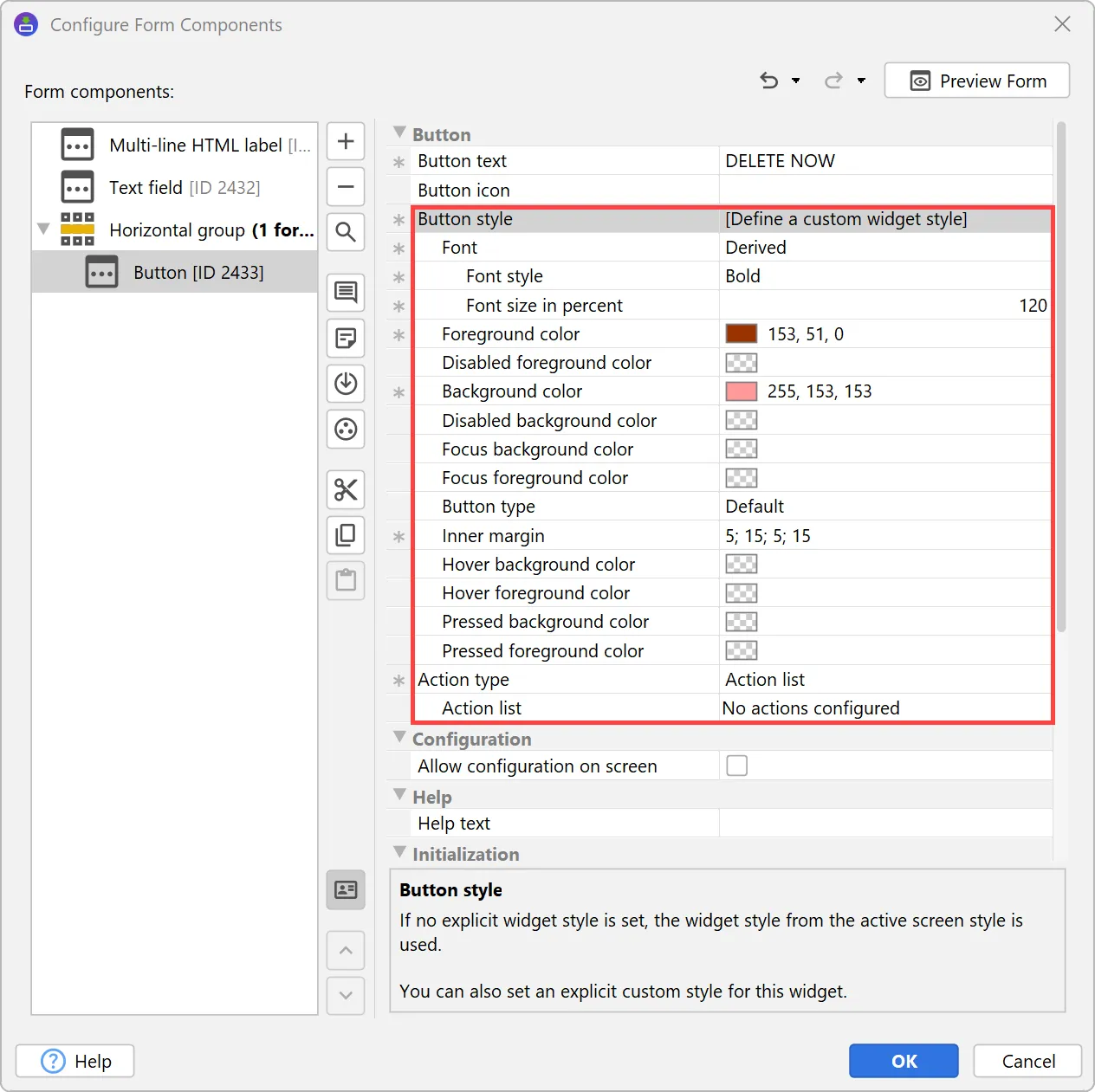

For one-off style changes, a custom inline style can be configured directly in the form component. To do that, choose the "Define a custom widget style" option and all the relevant style properties will appear as child properties.

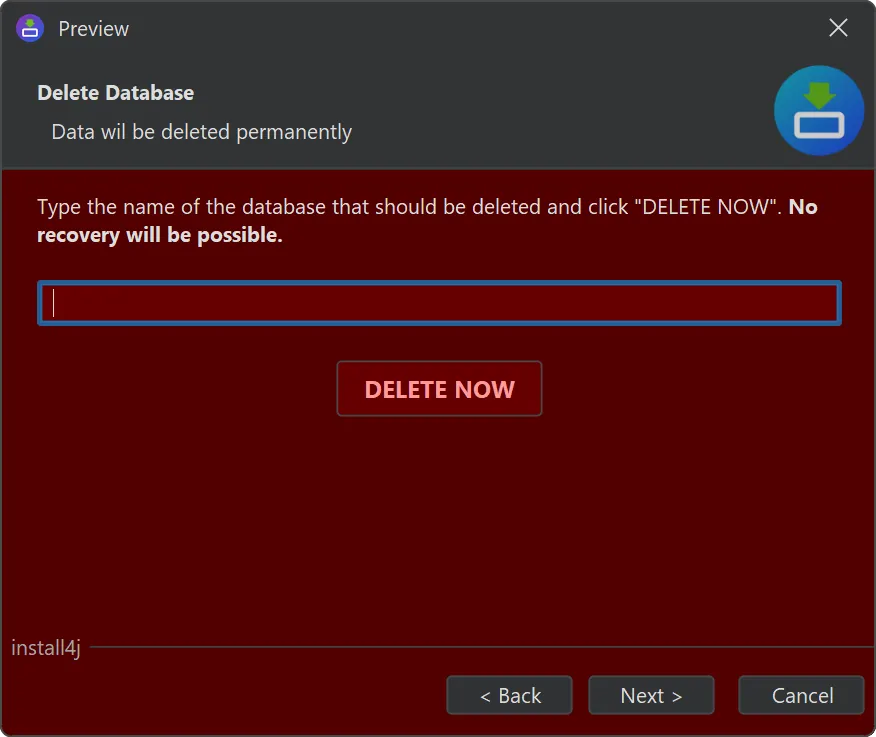

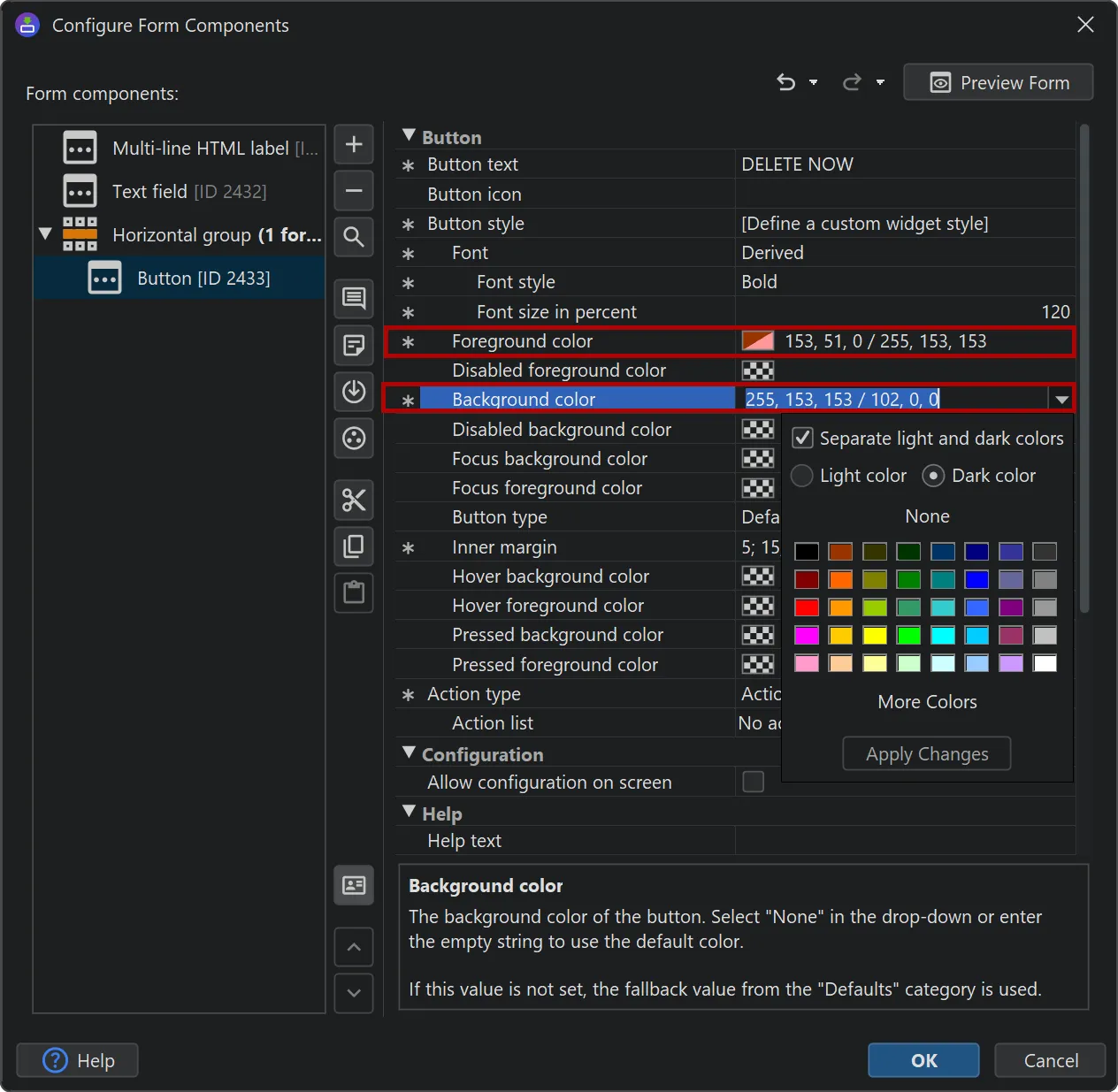

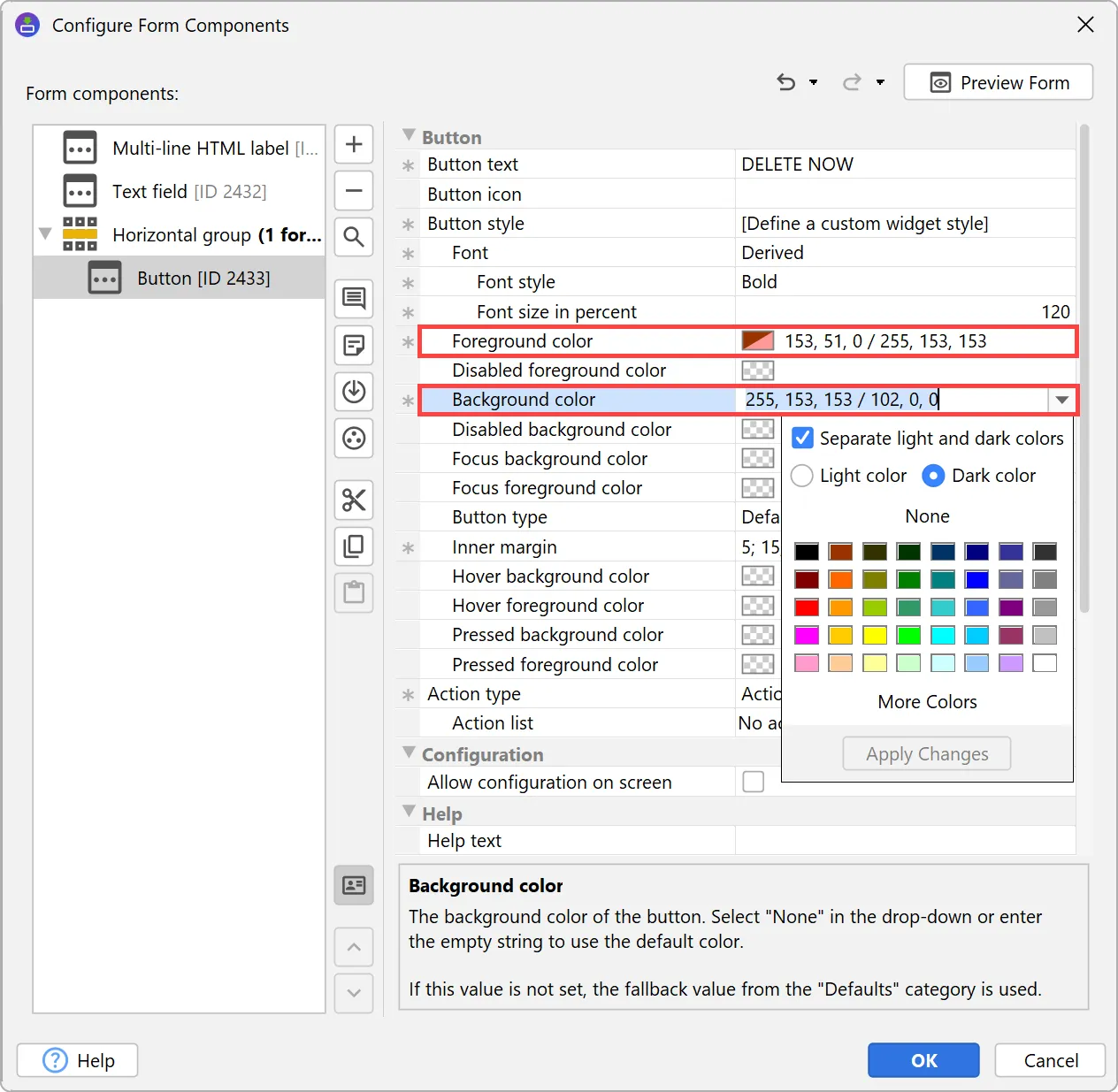

To support different colors in light mode and dark mode, all color properties support a notation with separate colors for both modes. The property popup also allows you to configure both colors.

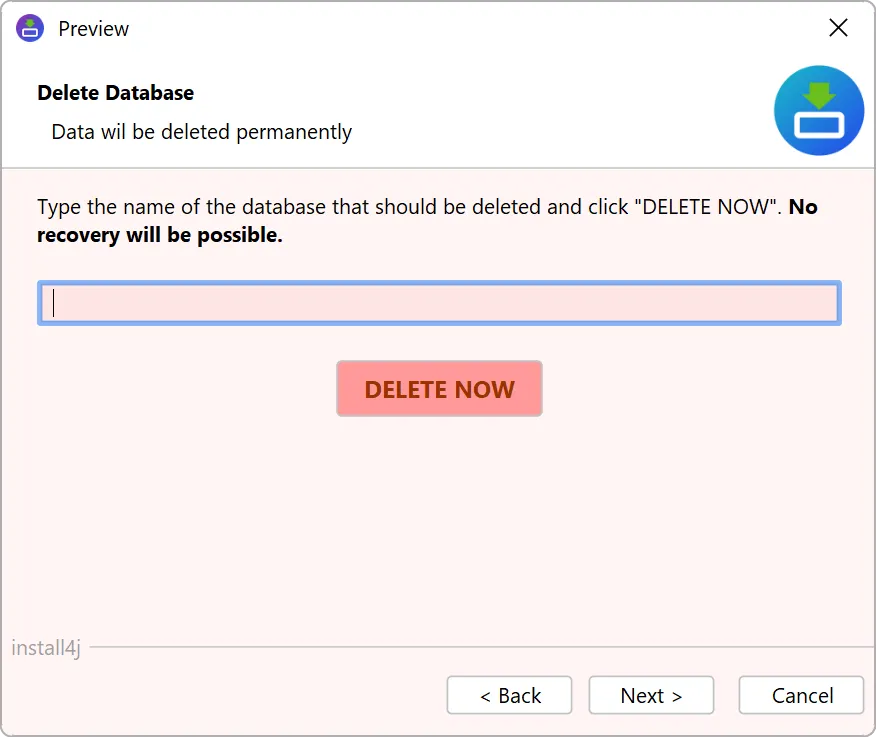

You can preview widget styles directly in the install4j IDE. The preview window also takes screen styles into account.

The binary architecture on macOS has been reworked. Previous versions of install4j used shell scripts for daemons and launchers and executed the JVM as a separate process for installer applications. Now, all launchers are binary launchers that start the JVM in-process. This has the following benefits:

Command line launchers and services now support entitlements, and do not start a separate "java" process anymore.
For macOS installer applications, the JVM is now started in-process, fixing problems with incorrect titles and icons in the Dock.
For single-bundle archive media files on macOS, all launchers are now nested as separate application bundles in the main application bundle. While they are not directly visible to the user, you can now start them as regular applications, for example with /bin/open /path/to/YourApp.app.
For single-bundle archive media files on macOS, out-of-process installer applications are now nested application bundles and properly show in the Dock. Previously, update downloaders would add invalid entries to the "Recent apps" in the Dock that just showed a Java executable.

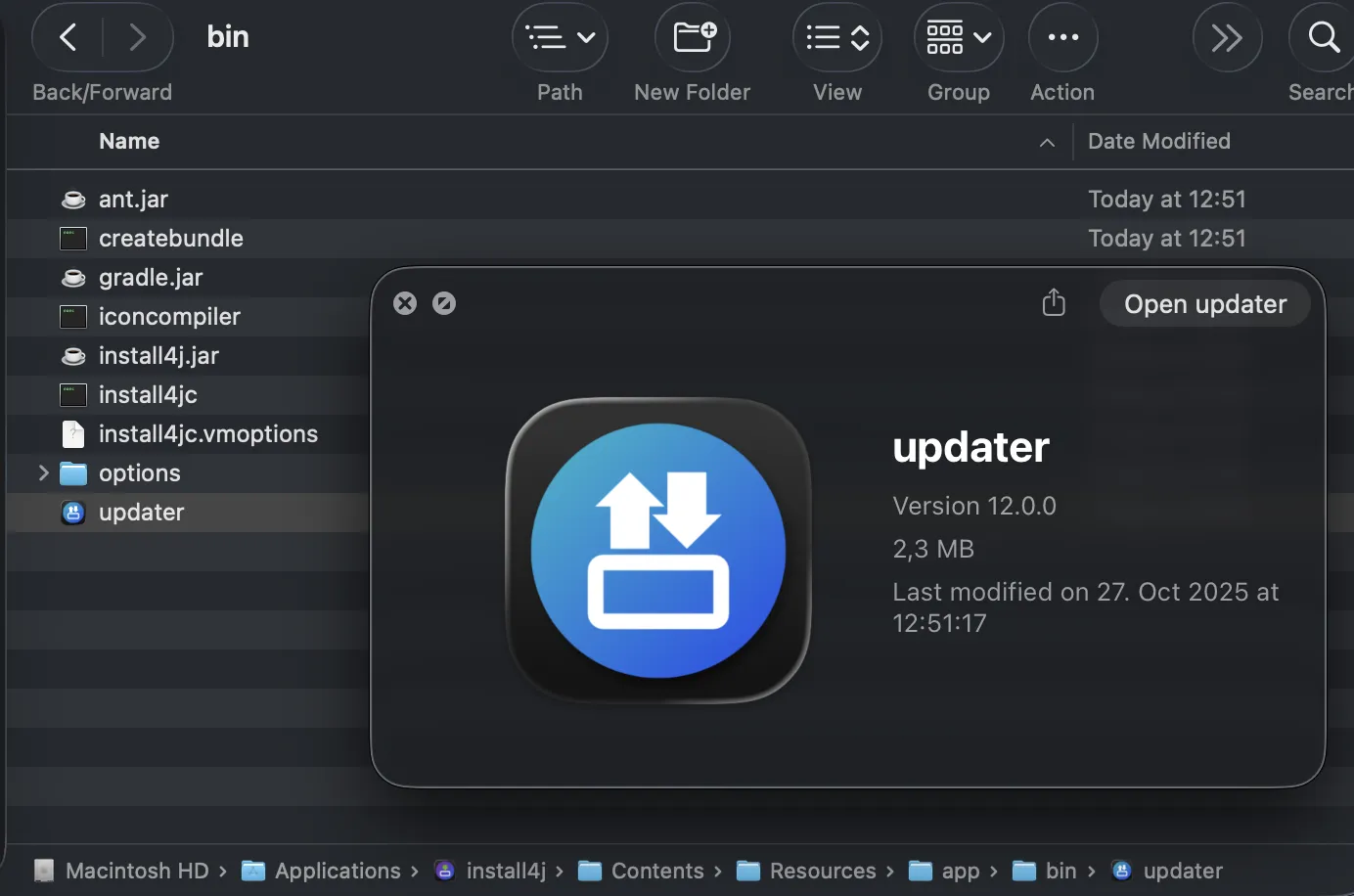

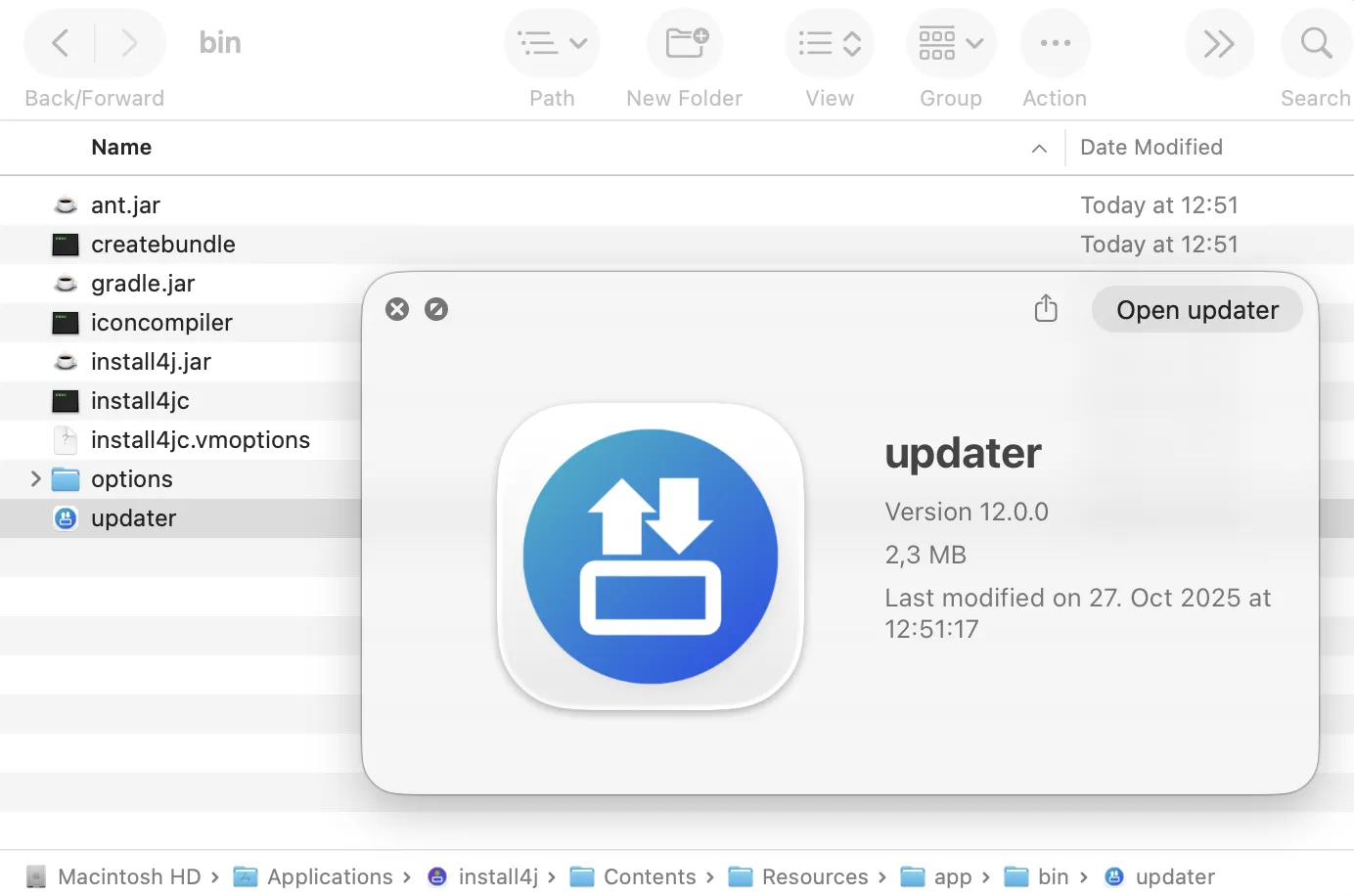

For example, check out the nested bin directory of the install4j app bundle itself. On macOS you can bring this up with the "Tools" toolbar button. The Finder window shows the command line executables as well as the nested update downloader, which is an installer application. In previous versions of install4j, the update downloader would not have been generated for a single-bundle archive.

The way installers set their installation directory has been reworked, adding substantial new functionality and greatly extending flexibility.

Previously, the way that installers determined whether to perform a user-specific or a global installation was a built-in decision, with only limited opportunities for customization via the "Request privileges" action.

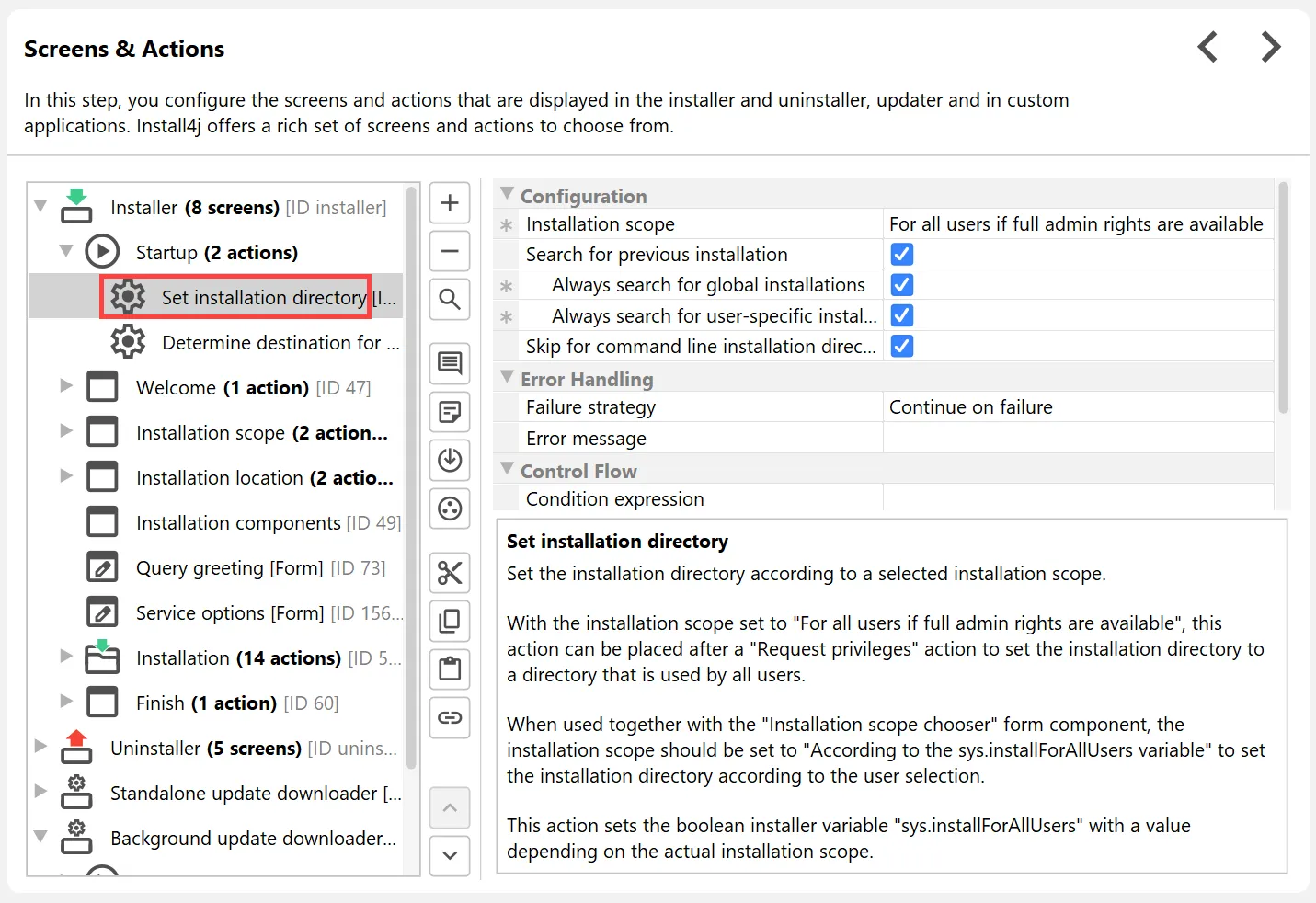

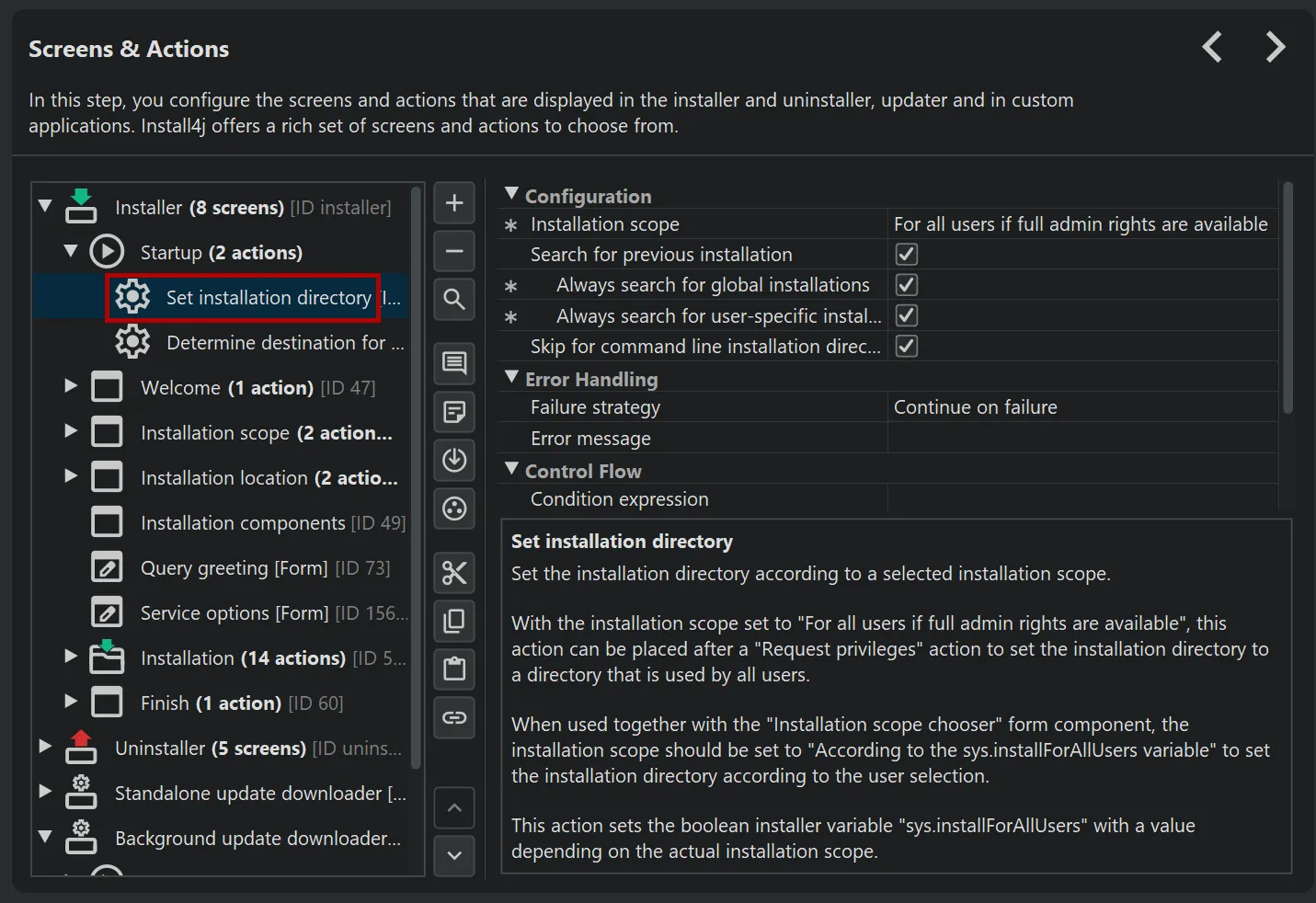

Starting with install4j 12, this process has been made explicit and completely transparent. The core of this functionality is the new "Set installation directory" action.

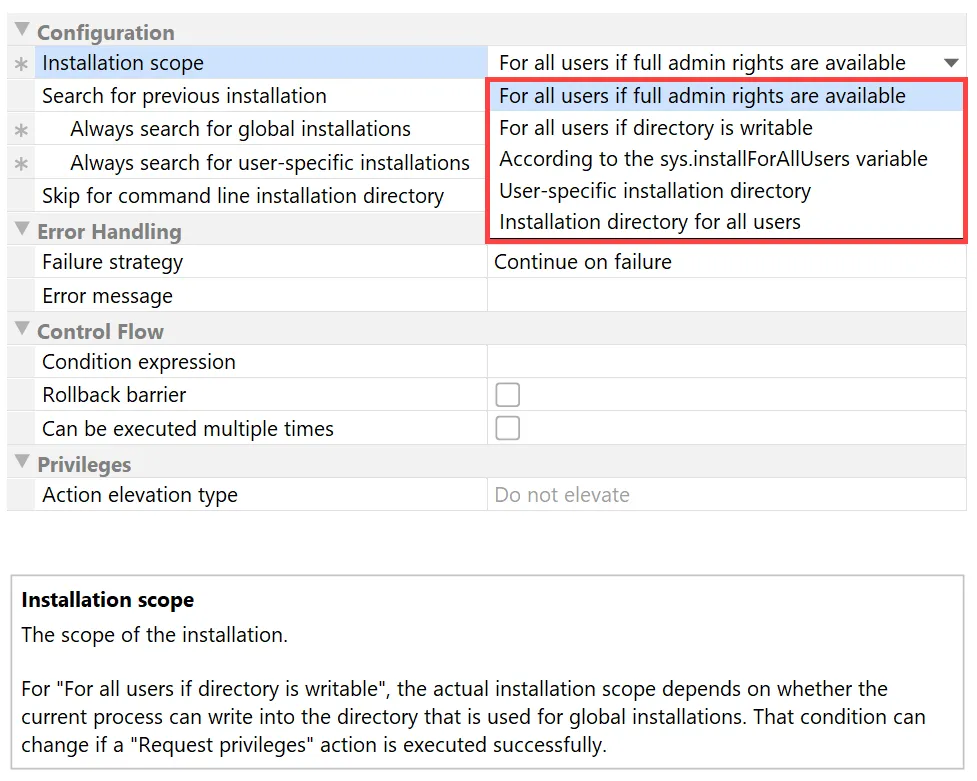

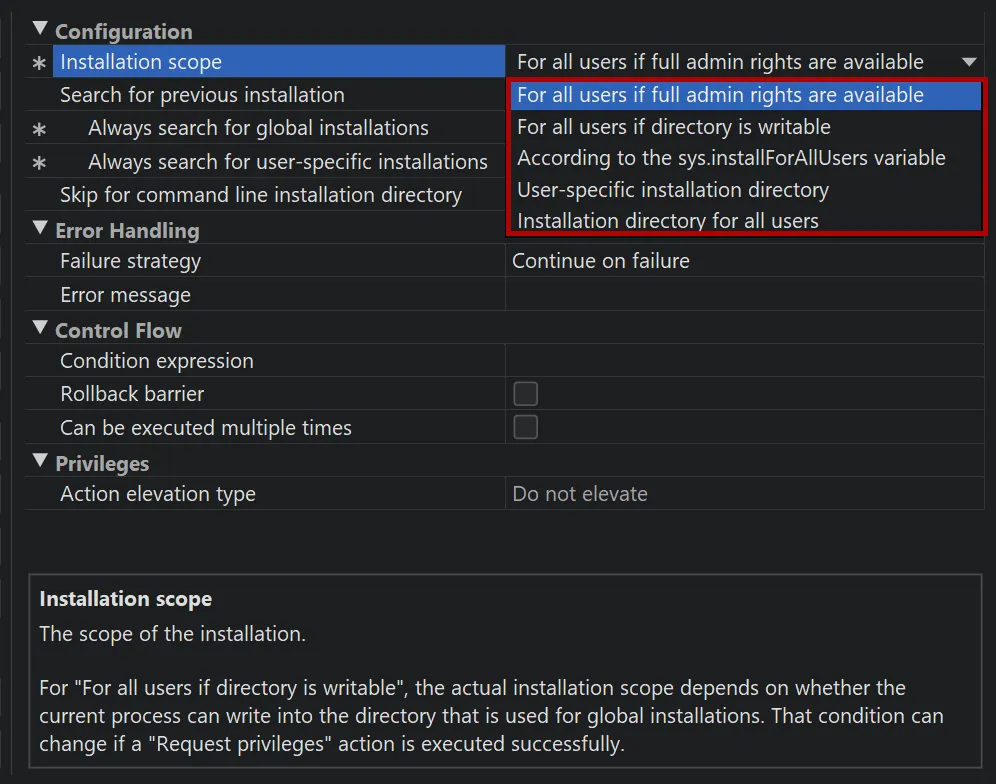

The decision whether to set a user-specific or global installation location is determined by the "Installation scope property". Apart from the fixed options for global and user-specific installations, the outcome can depend on whether full admin rights are available, whether the installation directory for all users is writable, or whether the sys.installForAllUsers installer variable is set to true.

The action can also search for previous installations — based on the installation scope by default, but configurable to always include user-specific or global installations.

The "Set installation directory" action itself sets the boolean sys.installForAllUsers installer variable so that subsequent actions and screens can be wired together accordingly. For example, you could start with a "Set installation directory" action in the "Startup" node of the installer, followed by a "Request privileges" action with a condition expression of context.getBooleanVariable("sys.installForAllUsers").

Another component that is coupled to the sys.installForAllUsers installer variable is the new "Installation scope chooser" form component. It is part of the new "Installation scope" screen and provides a standard way to ask users whether to perform a user-specific or a global installation.

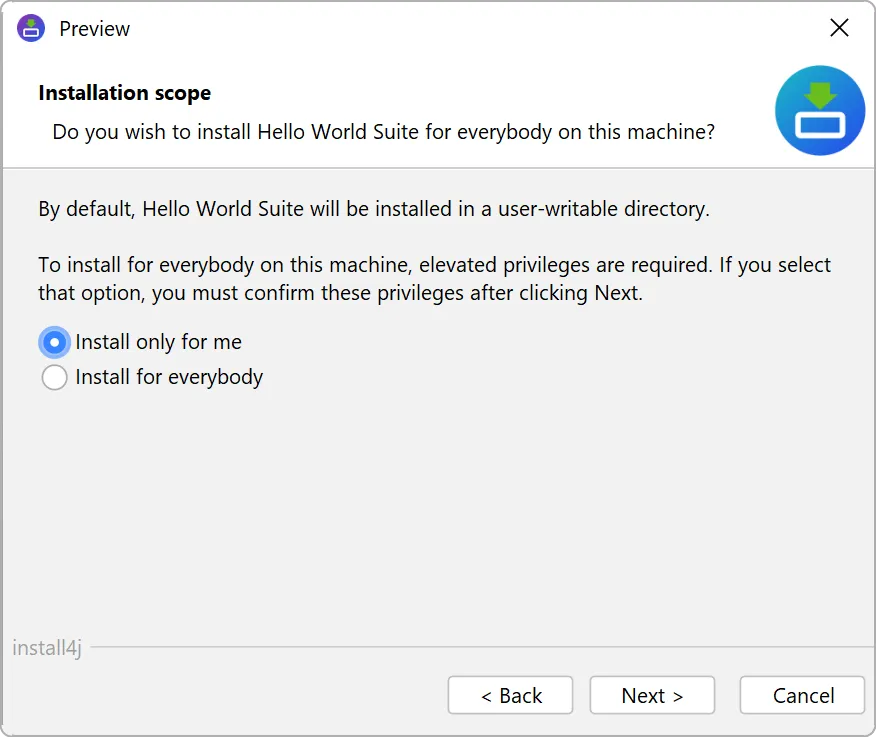

The "Installation scope chooser" form component consists of two radio buttons, one for each option, and is bound to the sys.installForAllUsers installer variable.

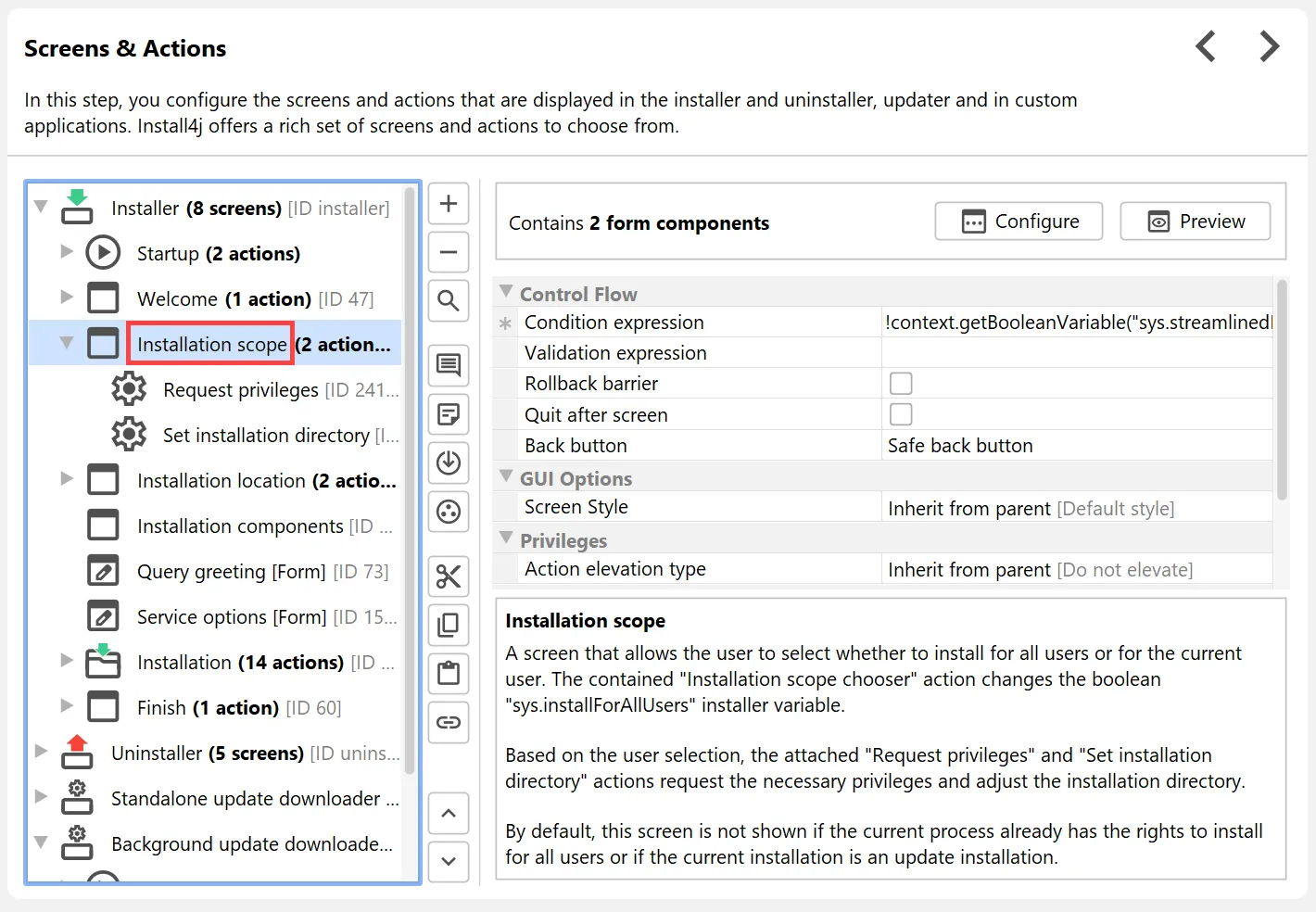

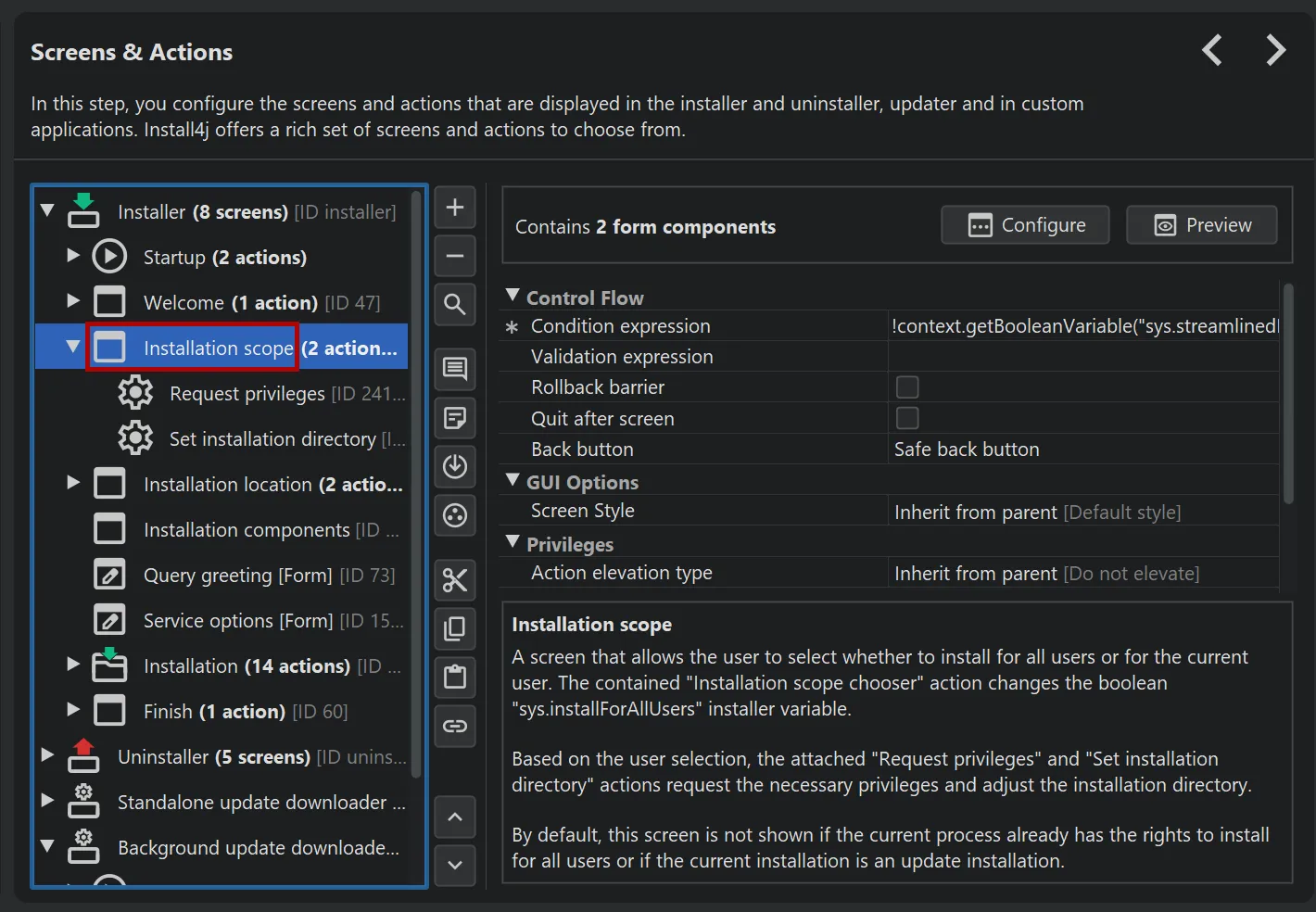

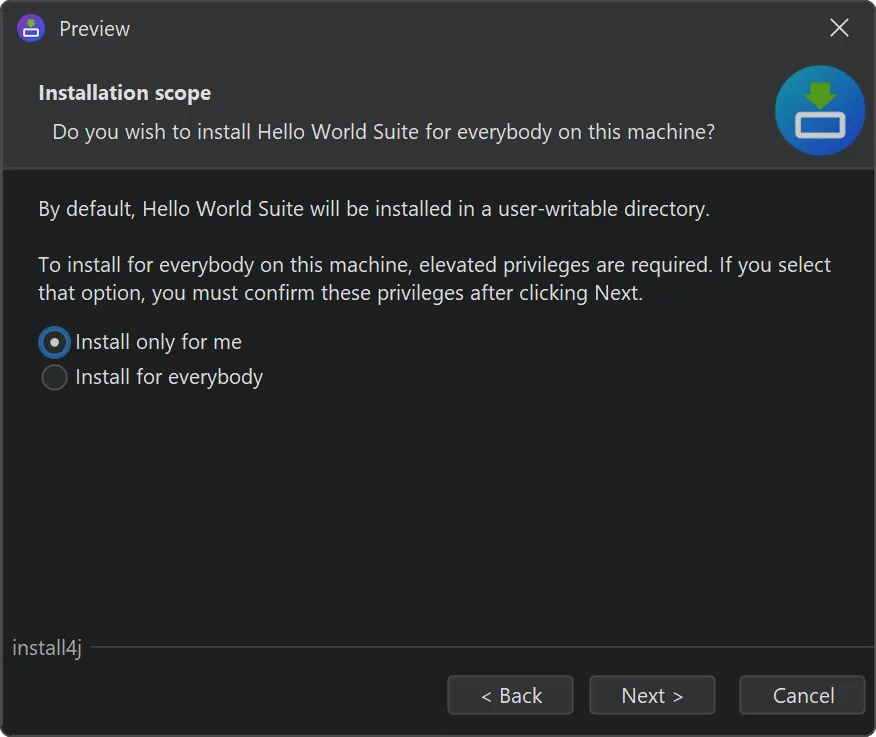

The "Installation scope" screen combines these radio buttons with default wording and two associated actions: A "Request privileges" action that is executed conditionally if the sys.installForAllUsers installer variable is set to true and a "Set installation directory" action with an installation scope of "According to the sys.installForAllUsers variable".

With these new building blocks you can implement different and more complex scenarios for determining the installation directory.

Code signing is now a separate section in the install4j IDE with different steps for Windows and macOS.

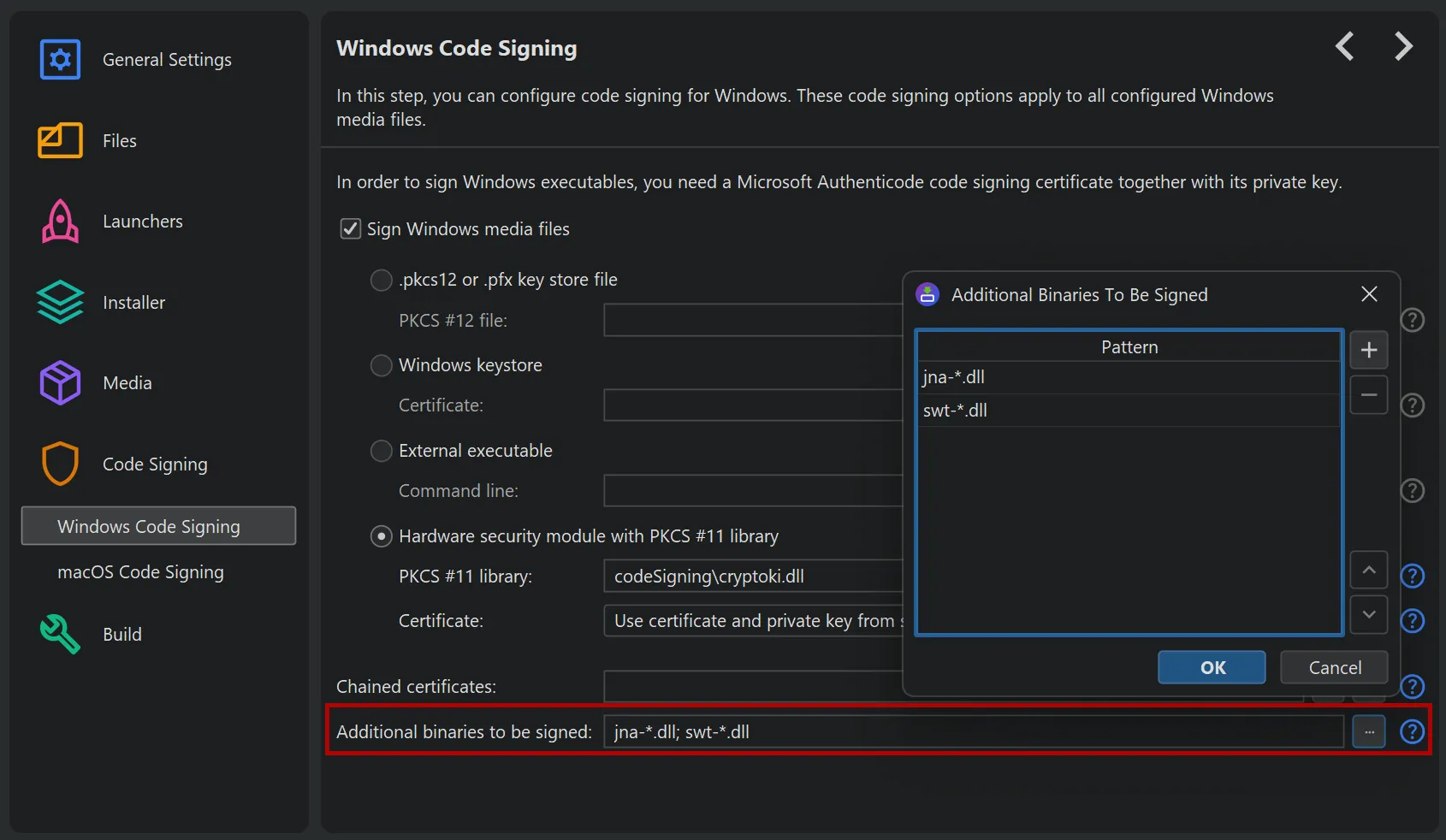

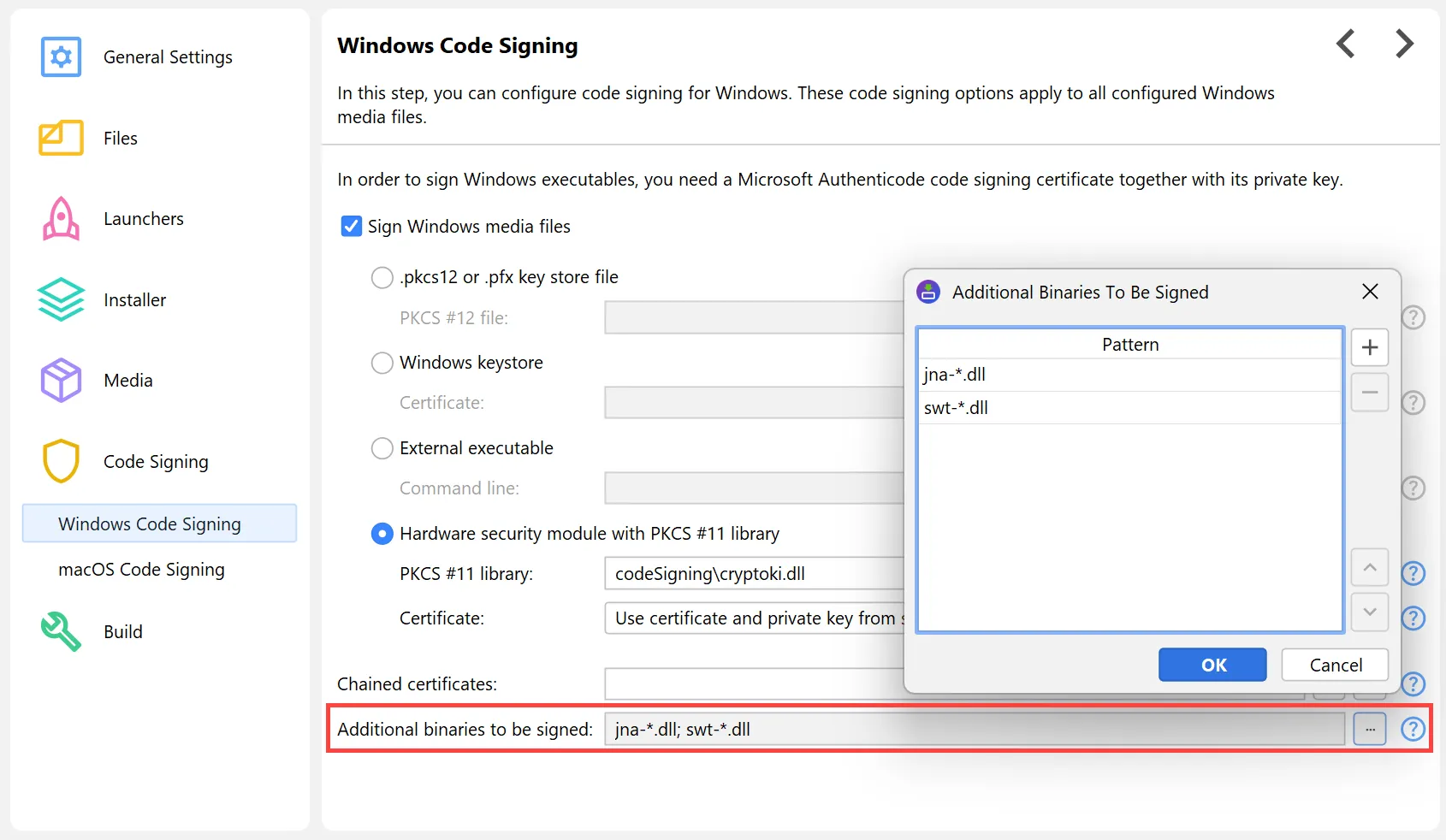

In the Windows code signing step, it is now possible to specify patterns for additional binaries that should be signed by install4j. Previously, only binaries generated by install4j would be signed.

When using PKCS #11, usually both certificate and private key are contained in the keystore. In install4j 12, matching of private keys and certificates has been improved considerably, leading to fewer code signing errors. In addition, the PKCS #11 session is now kept alive to speed up code signing.

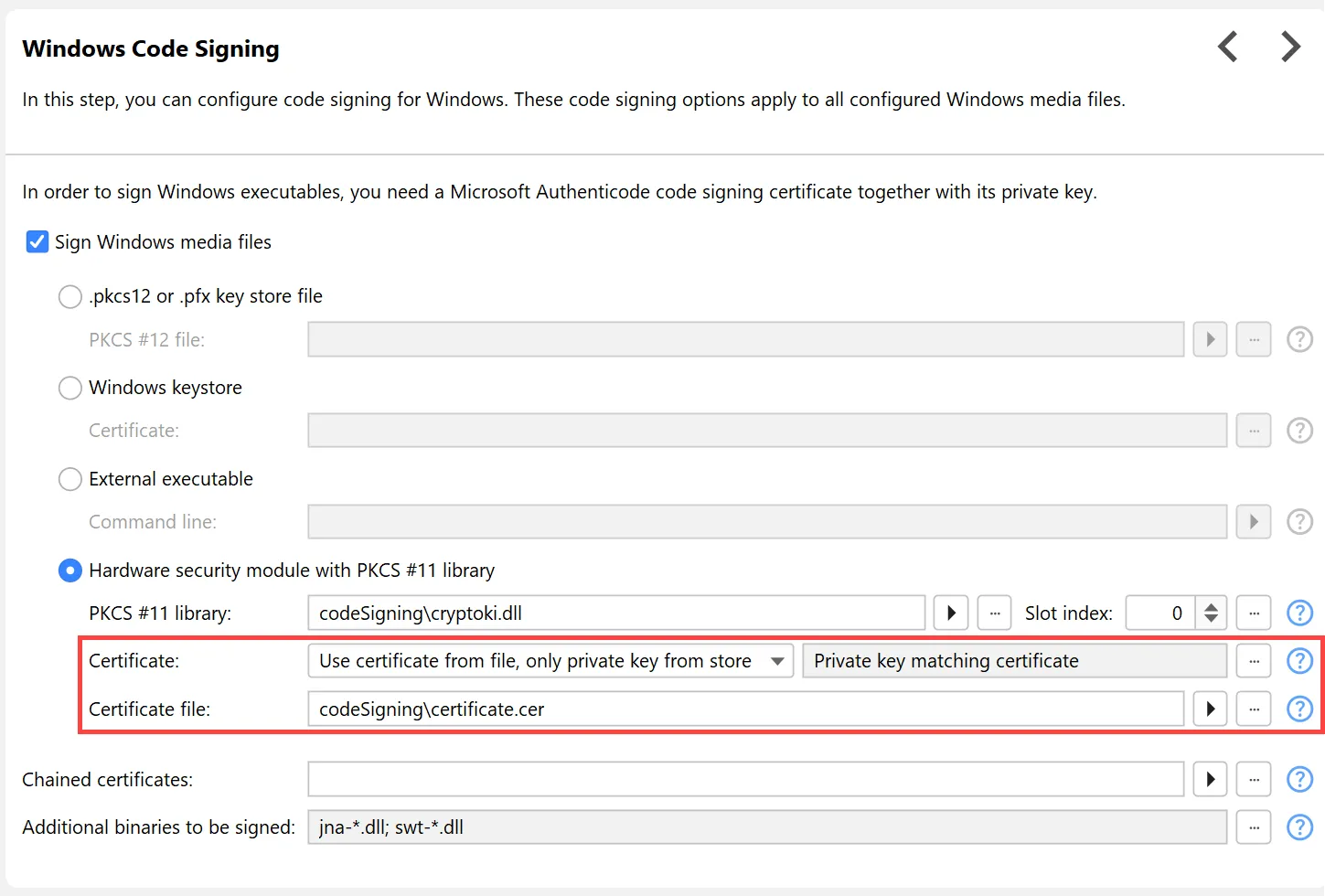

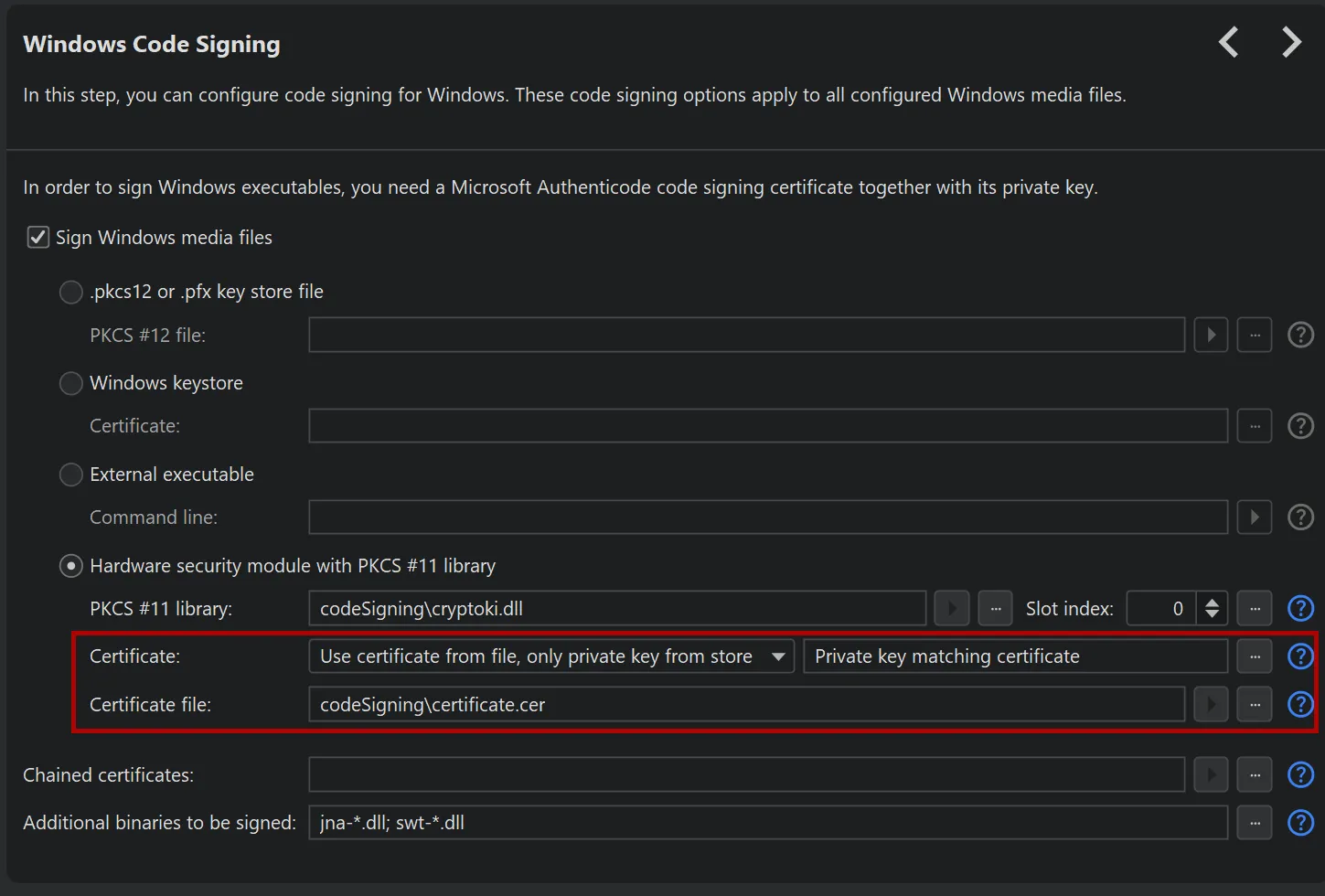

In incomplete or non-standard setups, code signing can fail when the compiler cannot find the certificate or the full certificate chain. To handle these cases, install4j now offers an optional separate PKCS #11 certificate file entry, both for Windows and macOS code signing.

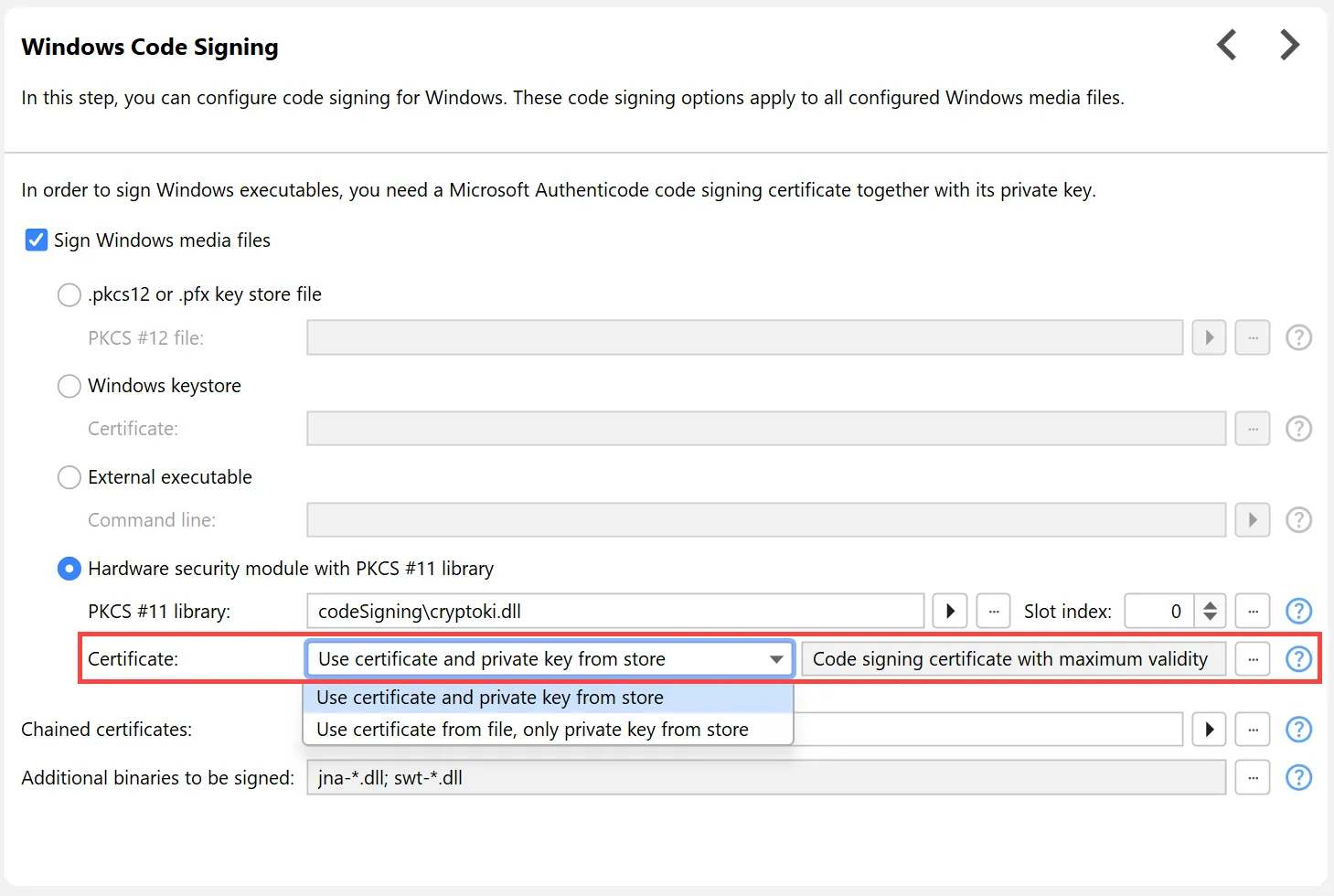

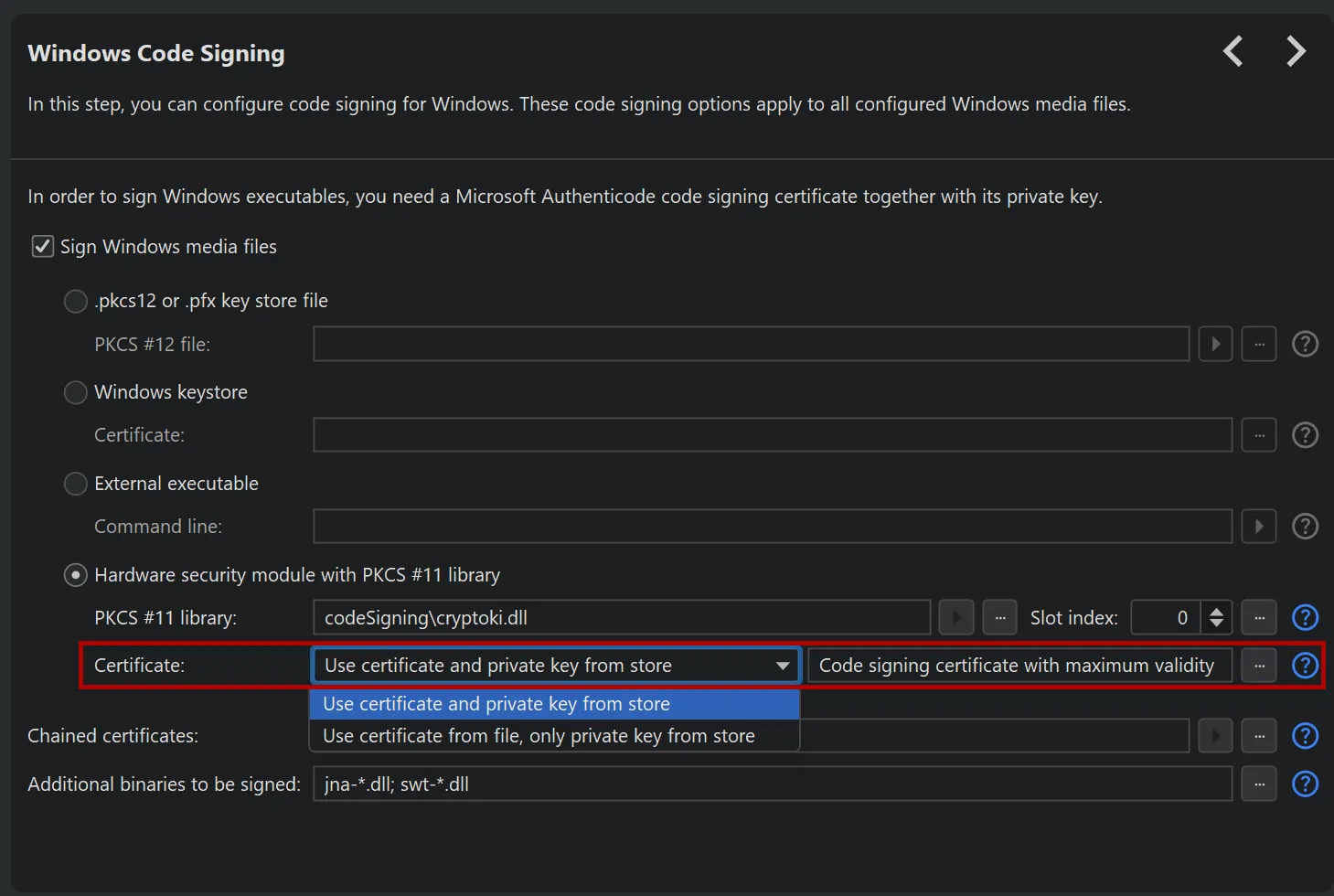

By default, install4j tries to use the certificate with the maximum validity if you do not select a specific certificate from the keystore. With the new mode, where a separate certificate file is specified, only the private key is loaded from the keystore and install4j tries to find a private key that matches the certificate. You can also select a specific private key by label or id manually.

Finally, the environment variable DYLD_LIBRARY_PATH can now be set on macOS for the install4j command line compiler to load PKCS #11 libraries.

install4j 12 adds support for the Apple Service Management framework.

In single-bundle archives, adding a service that runs for all users or a startup executable that is executed at login could previously be done with the "Install a service" and the "Add a startup executable" actions. However, when the user deleted the app bundle, these registrations would not be deleted along with the app bundle which would cause problems.

The Apple Service Management framework allows you to manage launch agents and launch daemons in such a way that they are tied to the lifecycle of the single-bundle archive. However, this requires some extra work.

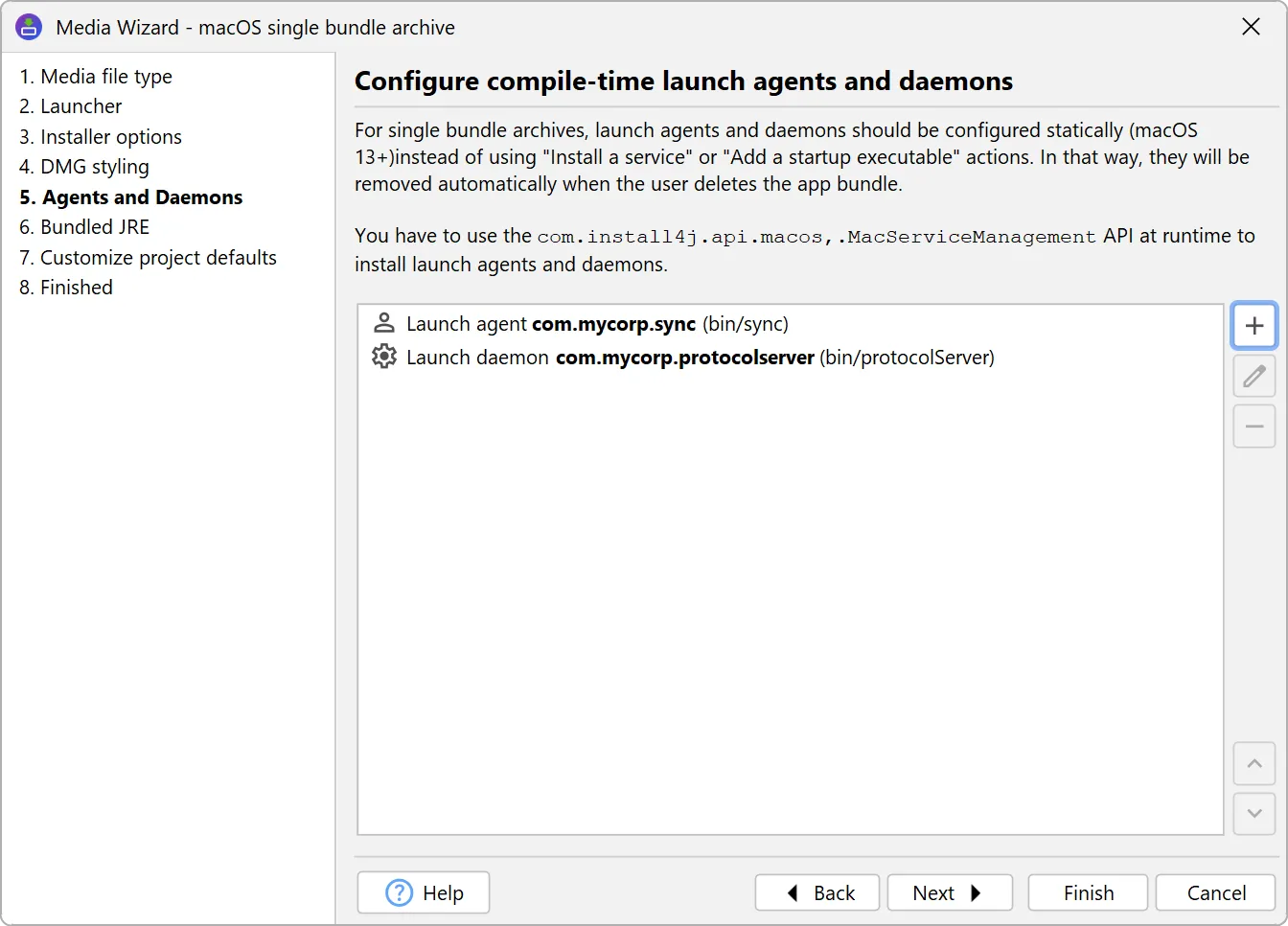

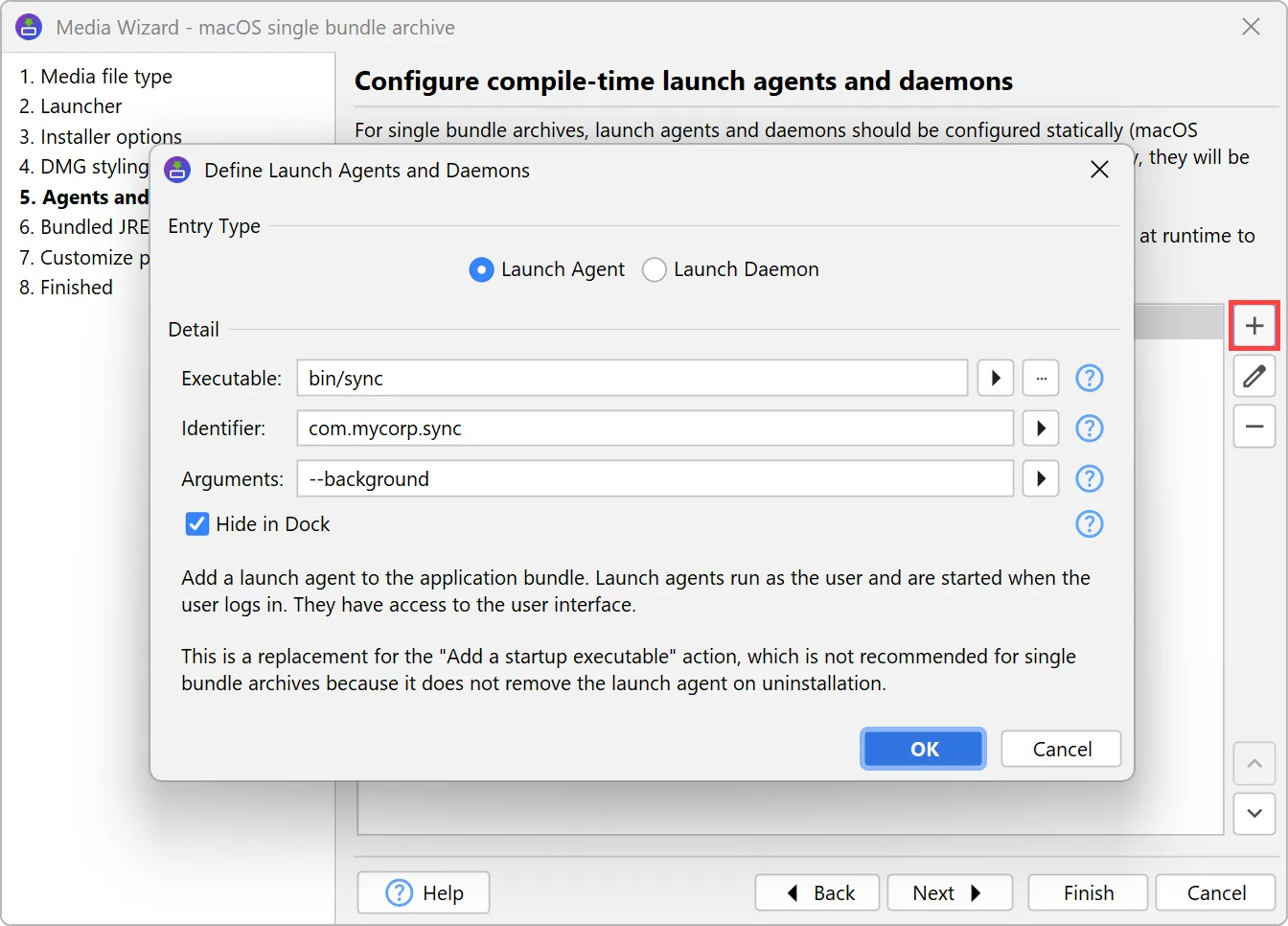

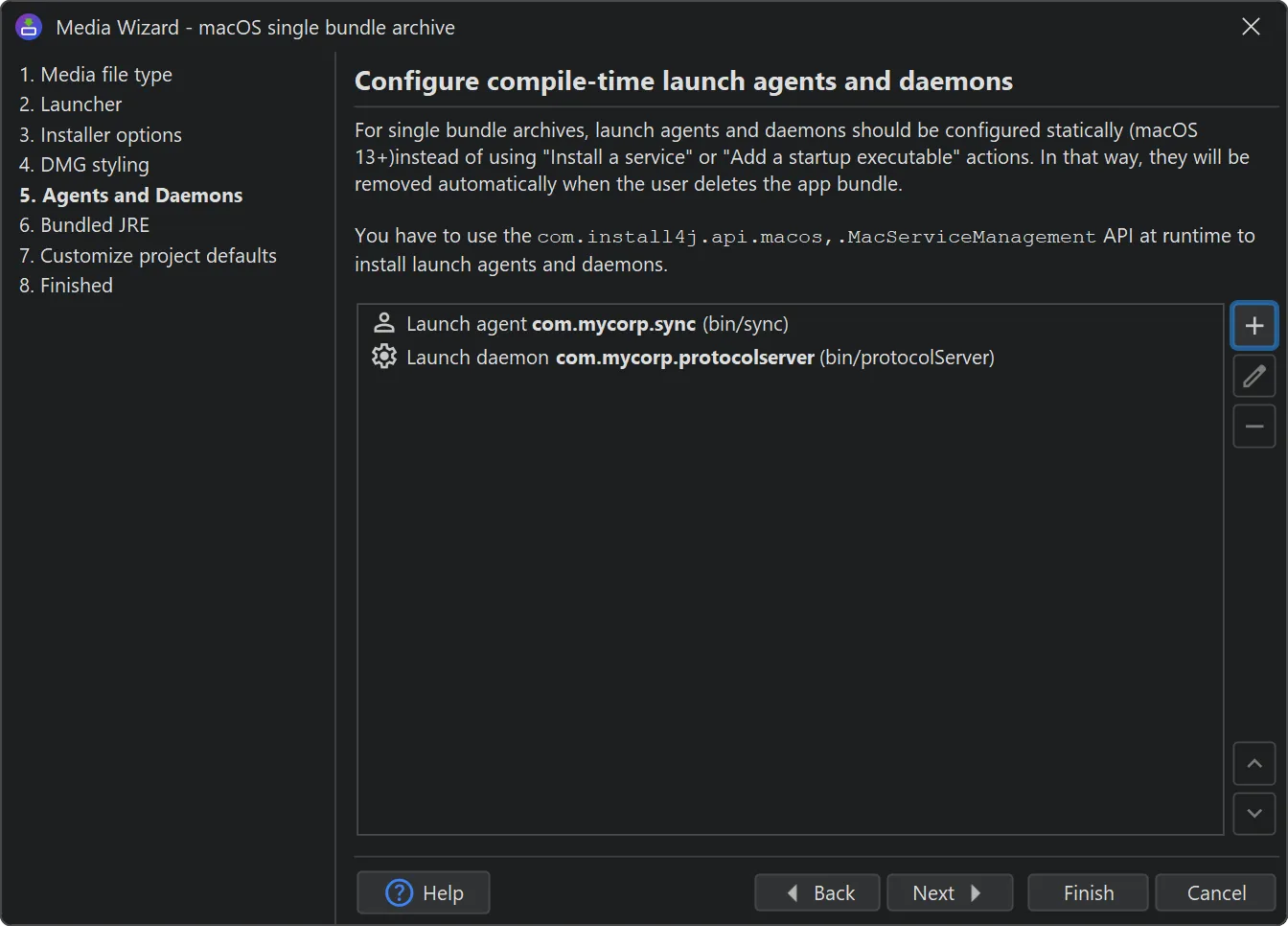

Single-bundle archives now have an additional "Agents and Daemons" step in the media wizard, where you can statically define "launch agents" and "launch daemons".

In the terminology of install4j, a "launch agent" corresponds to a "startup executable" and a "launch daemon" corresponds to a "service". We've named them with Apple's terminology because you need to read the Apple documentation to understand what is happening in the background to use this feature.

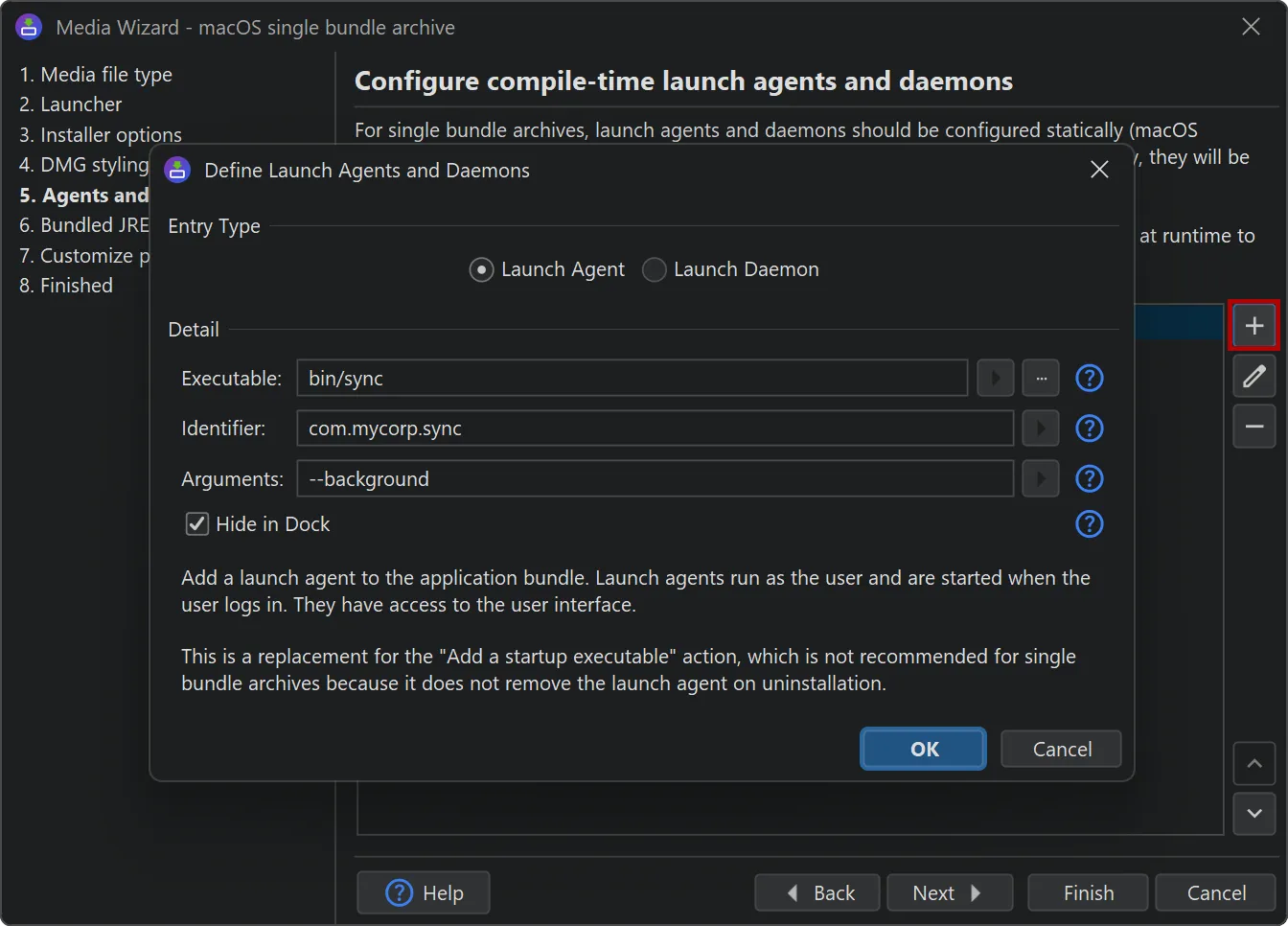

Both launch agents and daemons need an identifier. Launch agents additionally support arguments. Because they can show a UI by default, you can choose to hide them from the Dock when they only perform background operations.

install4j will generate the required files in Contents/Library/LaunchAgents and Contents/Library/LaunchDaemons, but they will not automatically be registered. You need to add logic to your app to alert the user, and then call the com.install4j.api.macos.MacServiceManagement API to register them. This will trigger a confirmation from the OS.

The registration is a simple static method call that uses the identifier that you configured for the launch daemon or the launch agent:

MacServiceManagement.registerLaunchAgent("com.mycorp.sync.plist");
MacServiceManagement.registerLaunchDaemon("com.mycorp.protocolserver.plist");

In addition, MacServiceManagement contains methods for checking the status and unregistering launch agents and launch daemons, opening System Settings in the "Login Items" section, and registering the main bundle itself as a login item.

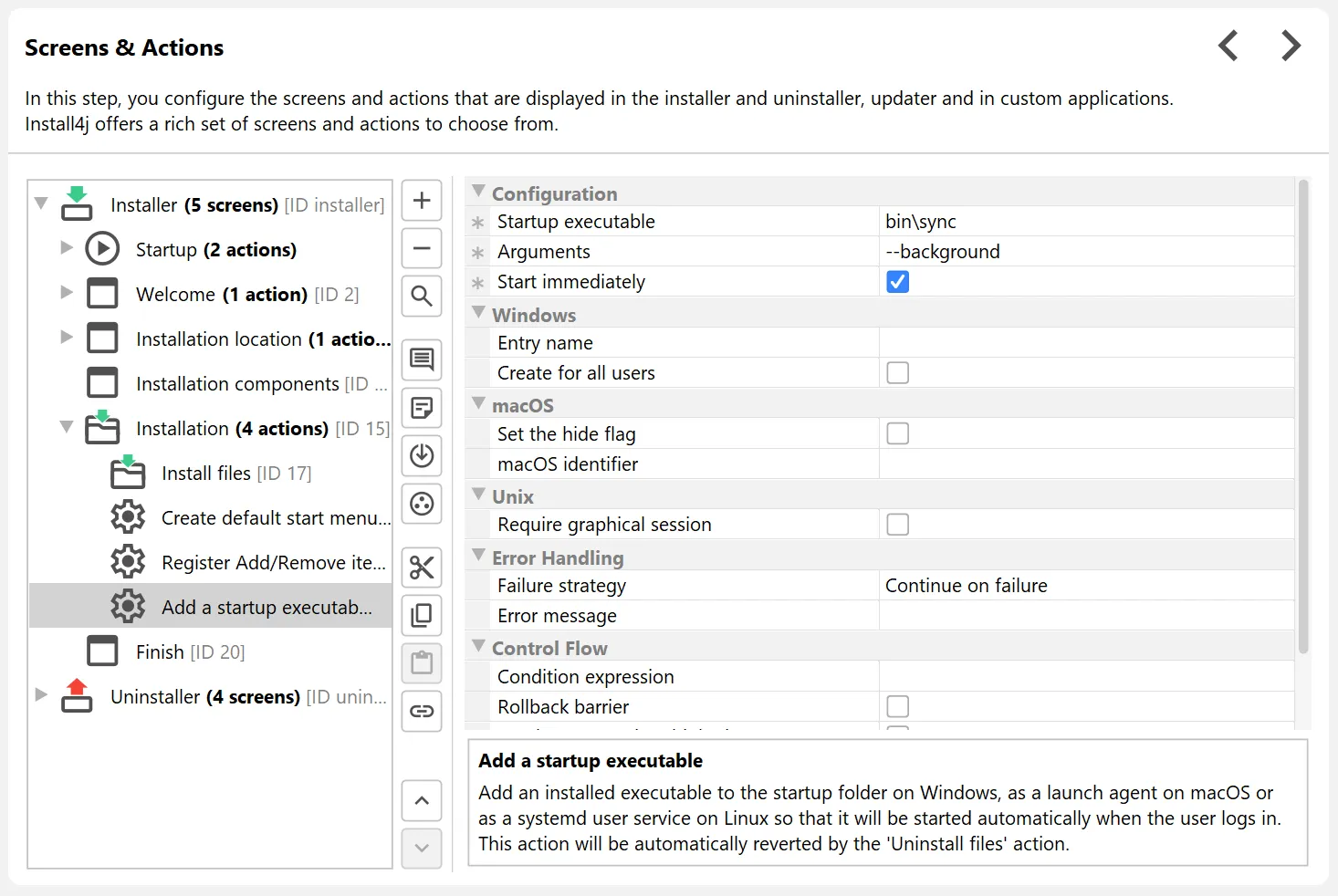

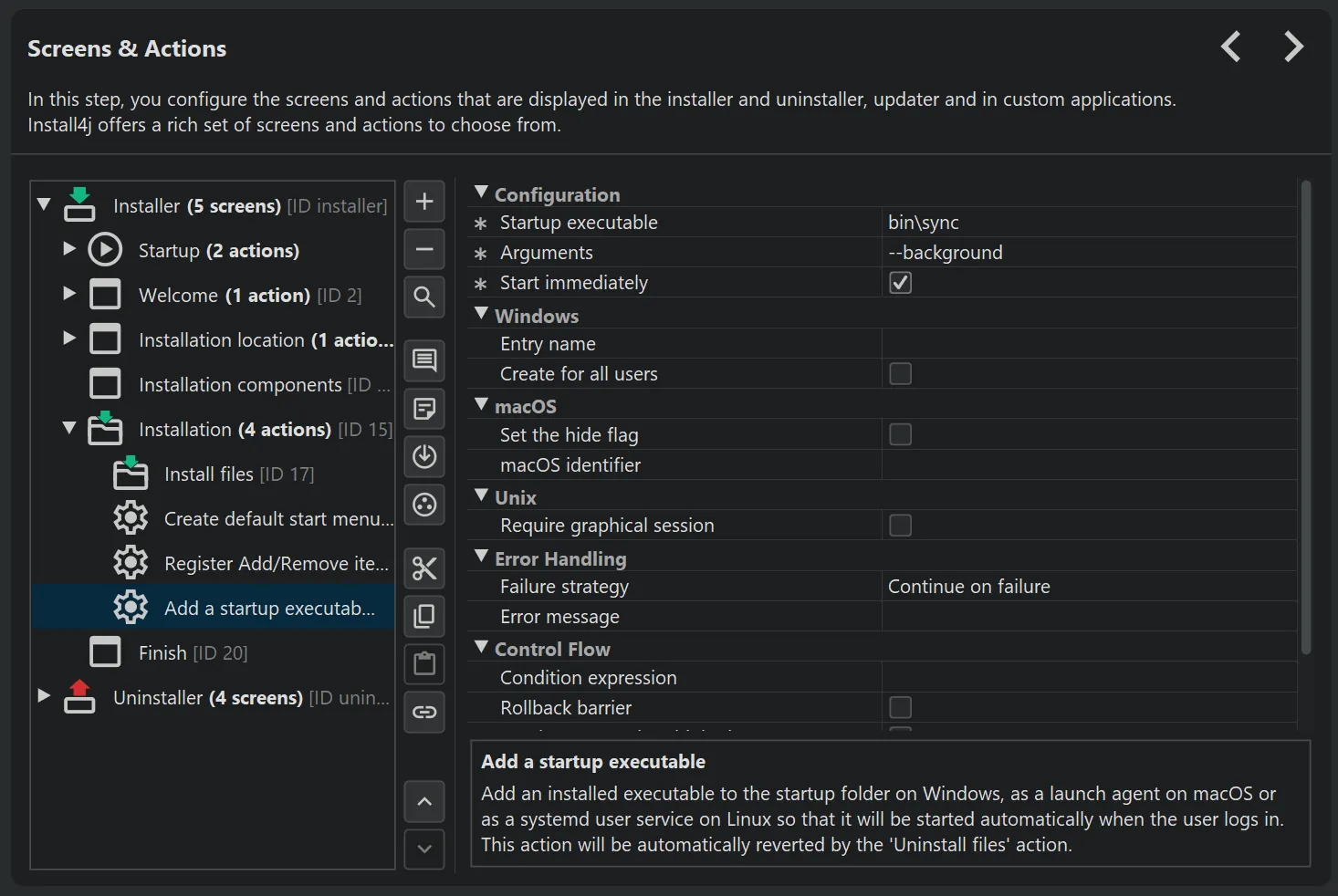

The "Add a Startup Executable" action has been improved in several ways:

The action now also works on Linux, using systemd user services.
On macOS, the action now uses LaunchAgents instead of LoginItems. This provides a better user experience without questions due to automation security restrictions.
The action now supports setting arguments for the executable.
The action now supports starting the launcher immediately.

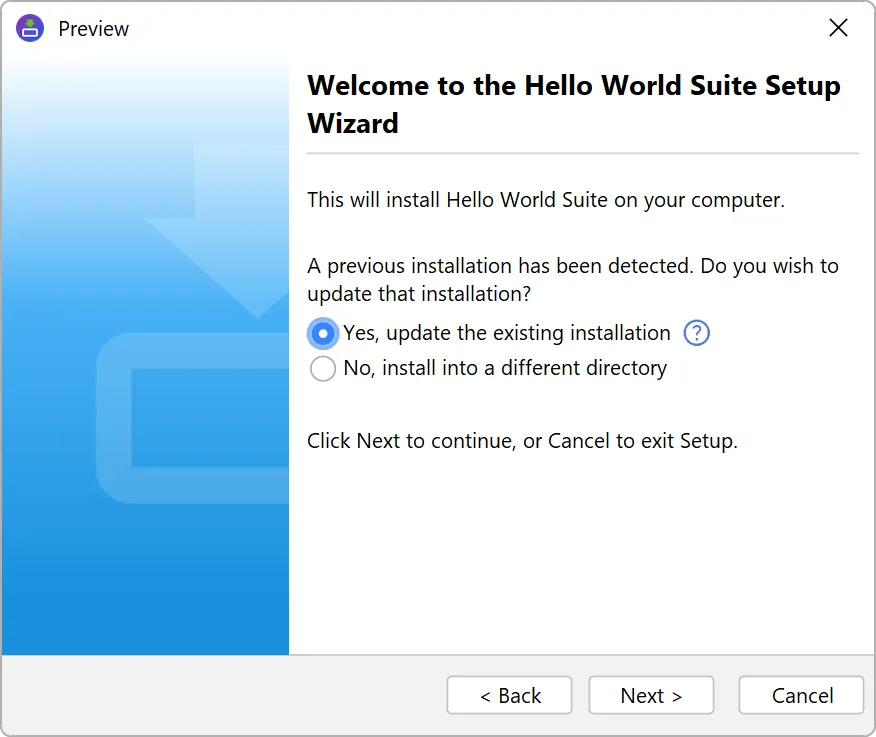

Support for streamlining installations has been added. This builds on the feature in previous versions where screens could be skipped for update installations if the user confirmed an update installation in the "Update alert" form component, typically on the "Welcome" screen.

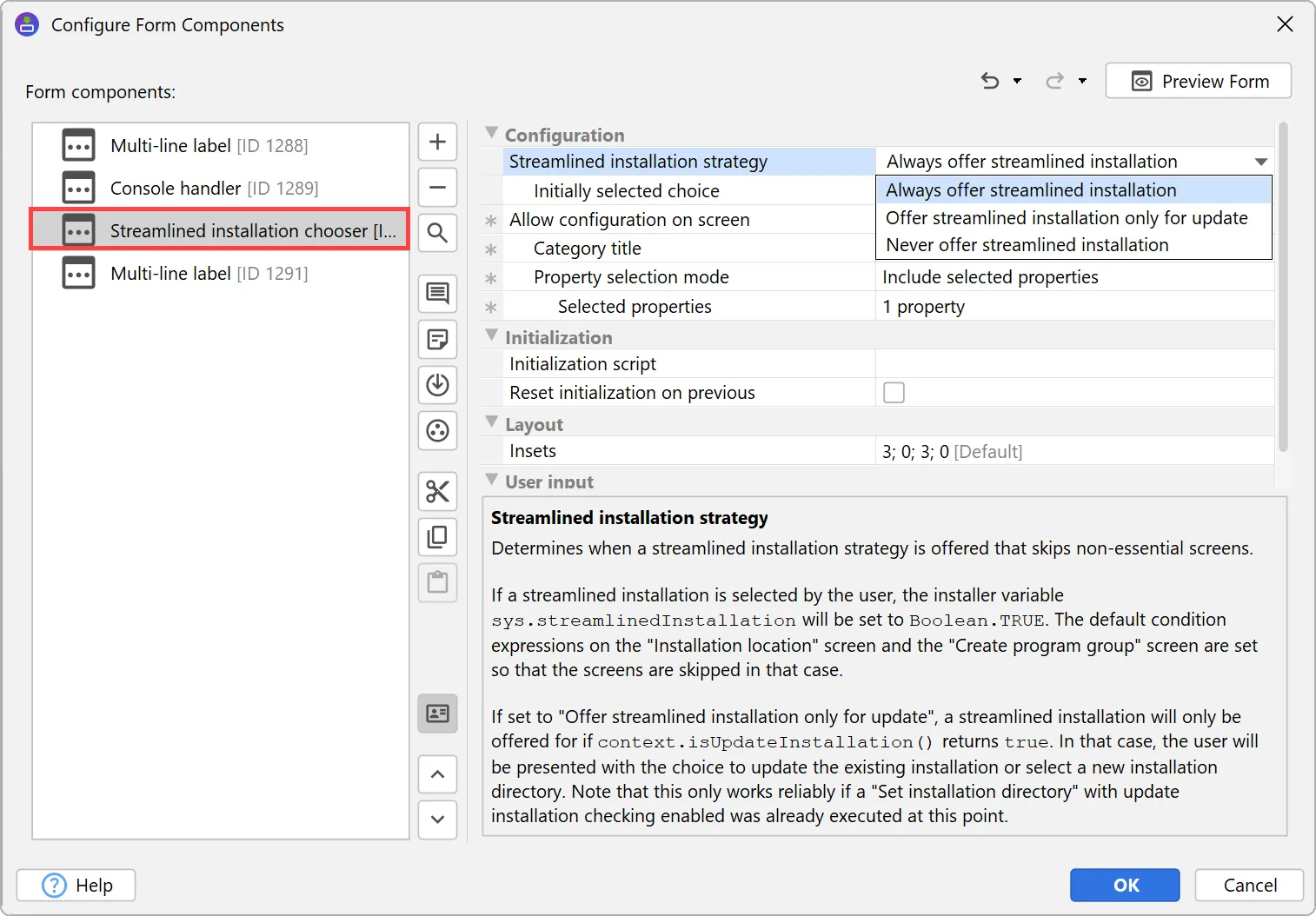

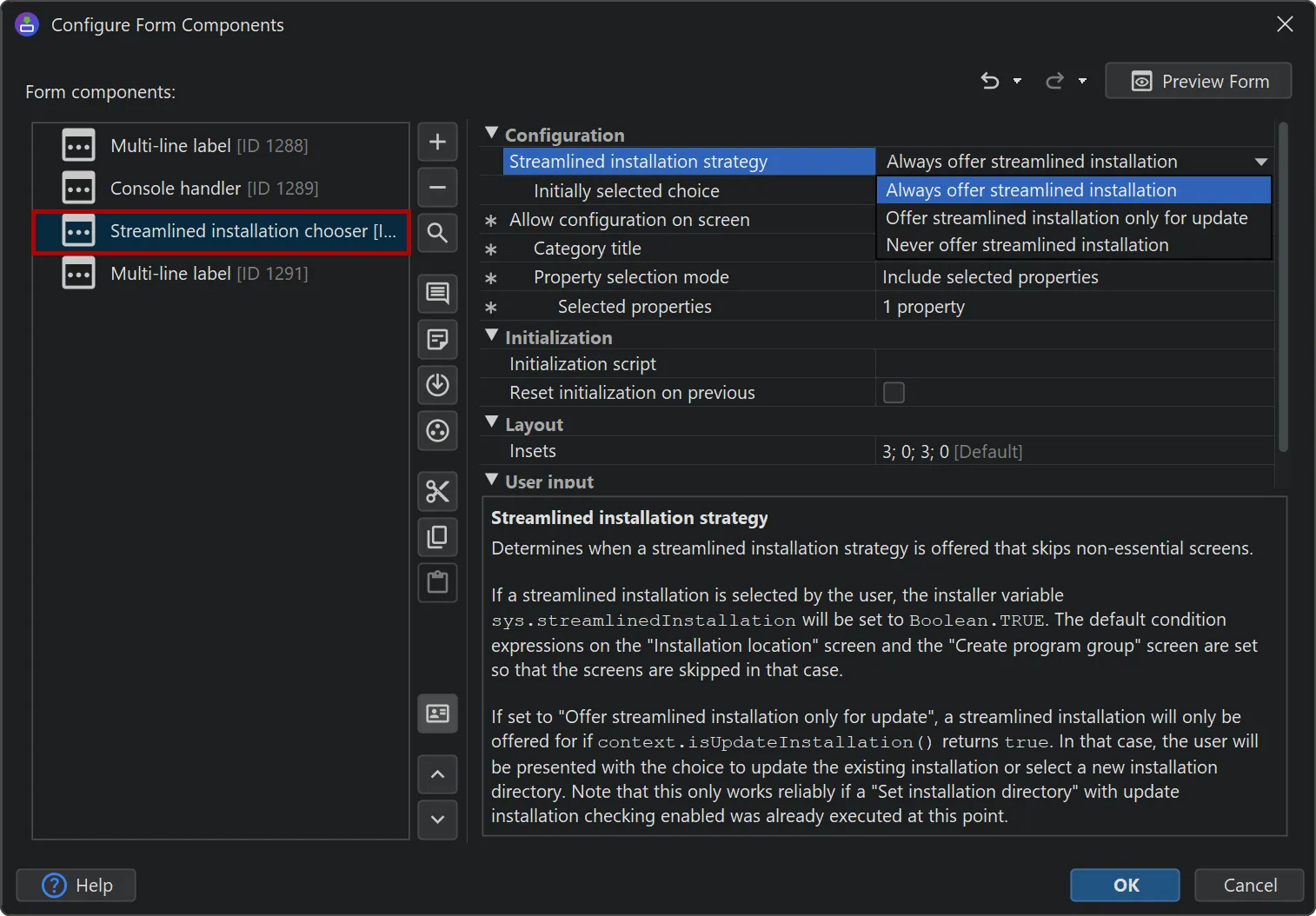

install4j 12 extends the "Update alert" form component into a "Streamlined installation chooser" form component with two modes for its "Streamlined installation strategy" property.

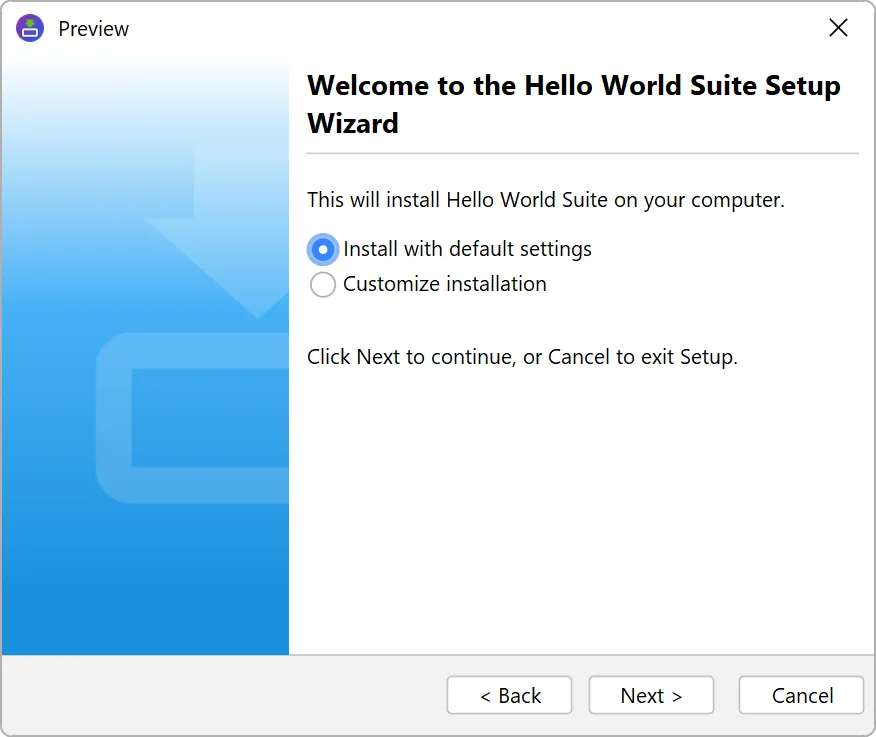

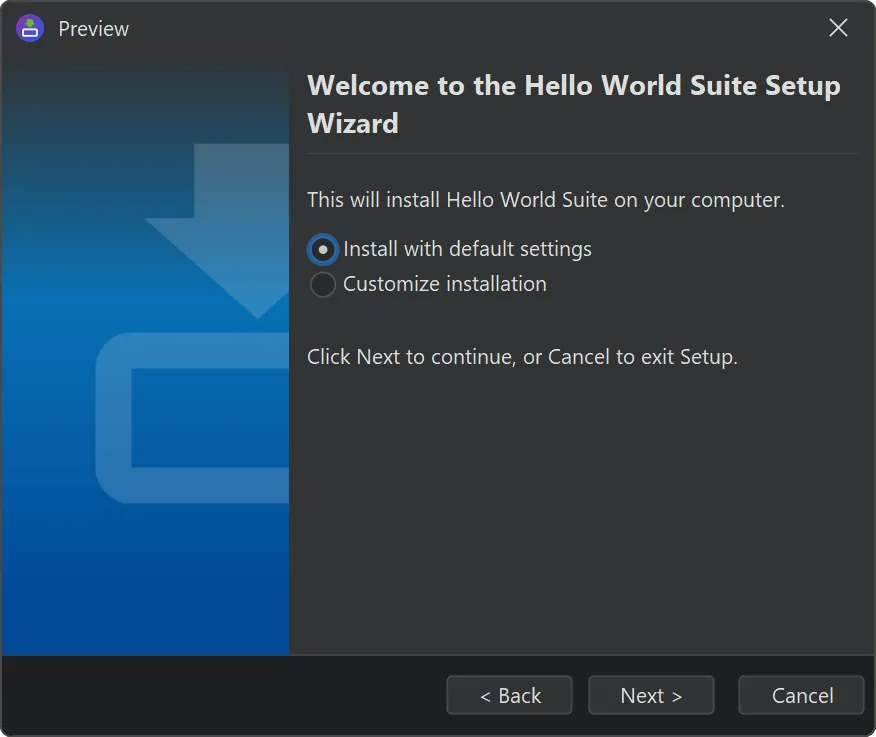

By default, streamlining offers either a "default" installation or a "customized" installation. The result of the user selection is saved to the boolean installer variable sys.streamlinedInstallation. That variable can be used to conditionally execute other screens and actions. By default, several screens in install4j have such condition expressions when you add them.

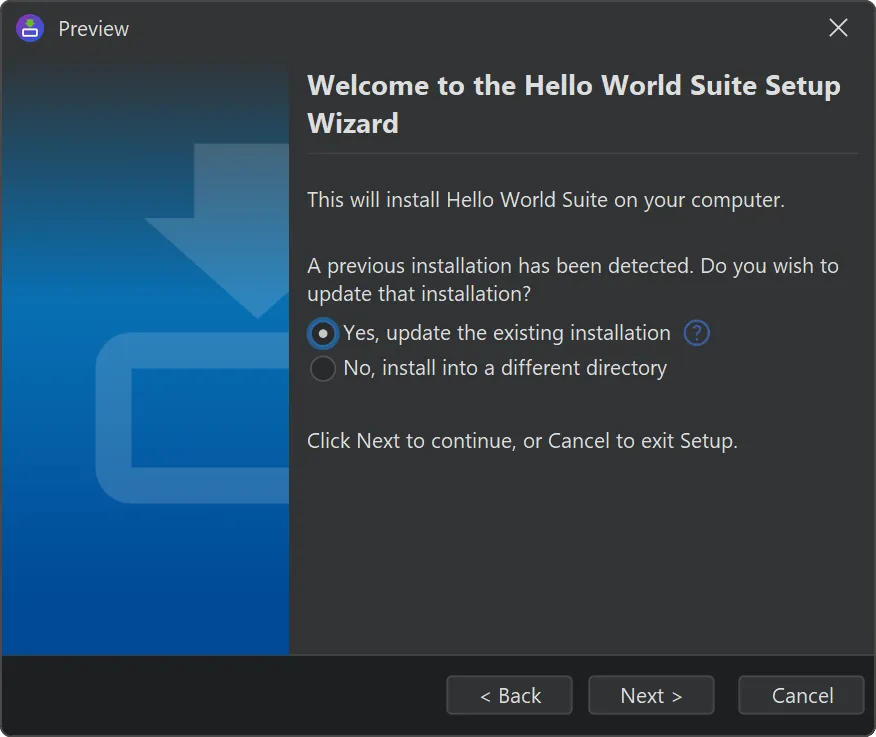

Alternatively, you can choose to only alert the user for update installations and offer streamlining only in that case. This corresponds to the behavior in previous versions of install4j.

Support for renaming for RPM and DEB media files has been added.

Whenever you rename the "Short name" on the "General Settings->Application Info" step, your package name will change, and upgrades will no longer work, leaving old versions installed.

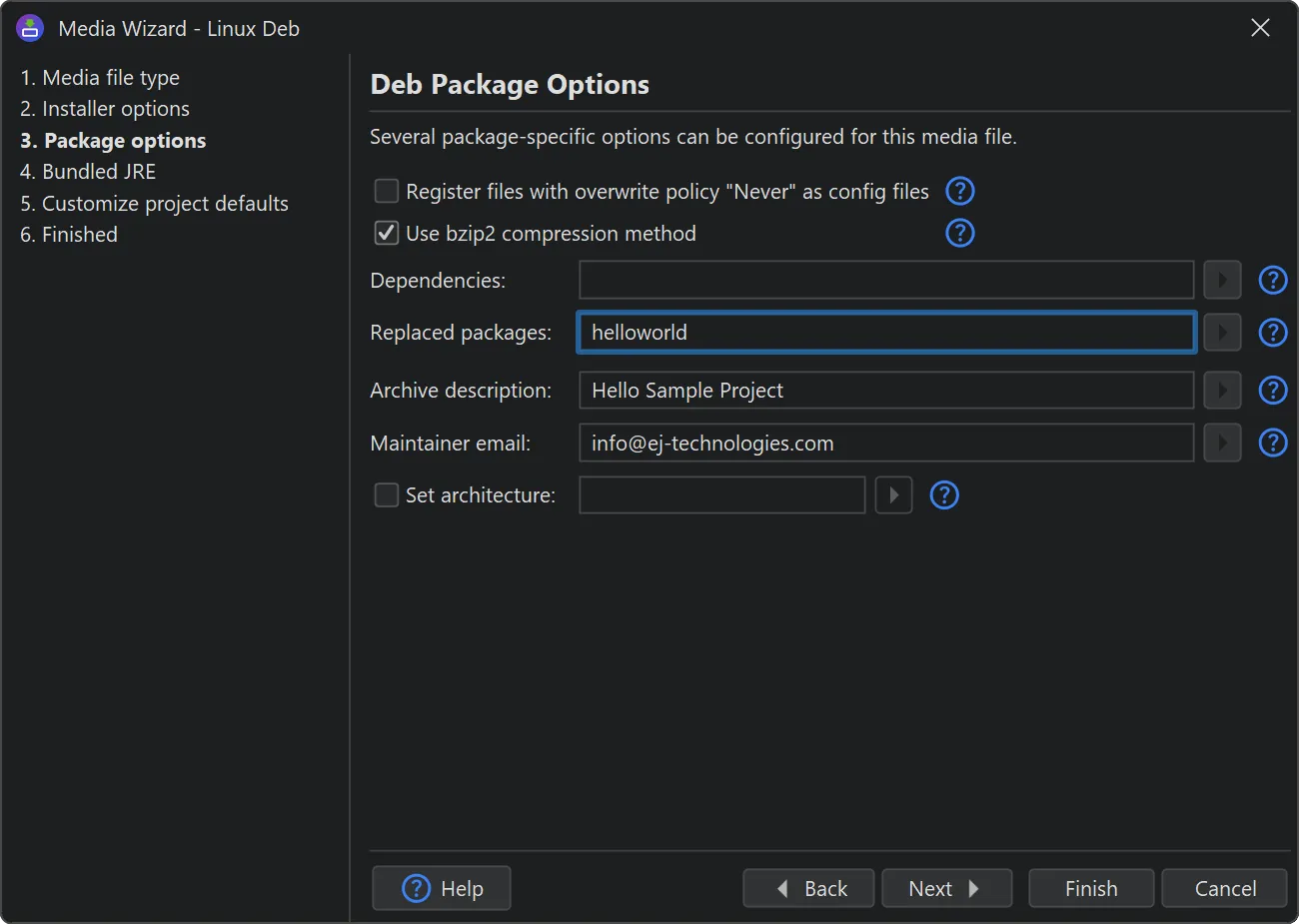

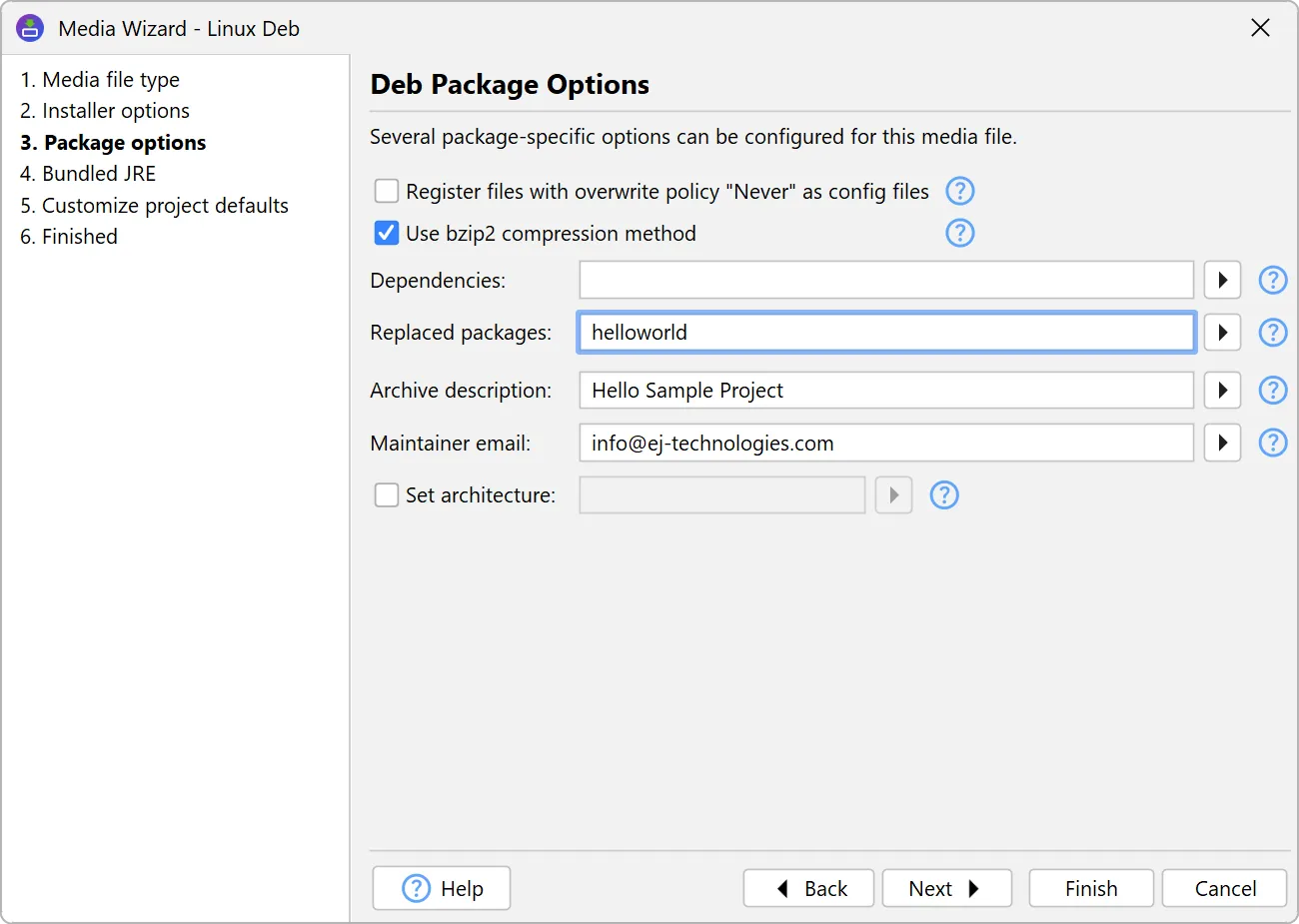

With the new "Replaced packages" option in the "Package options" step of the media wizards for RPM and DEB media files, you can specify a comma-separated list of package names that should be removed when the package is installed.

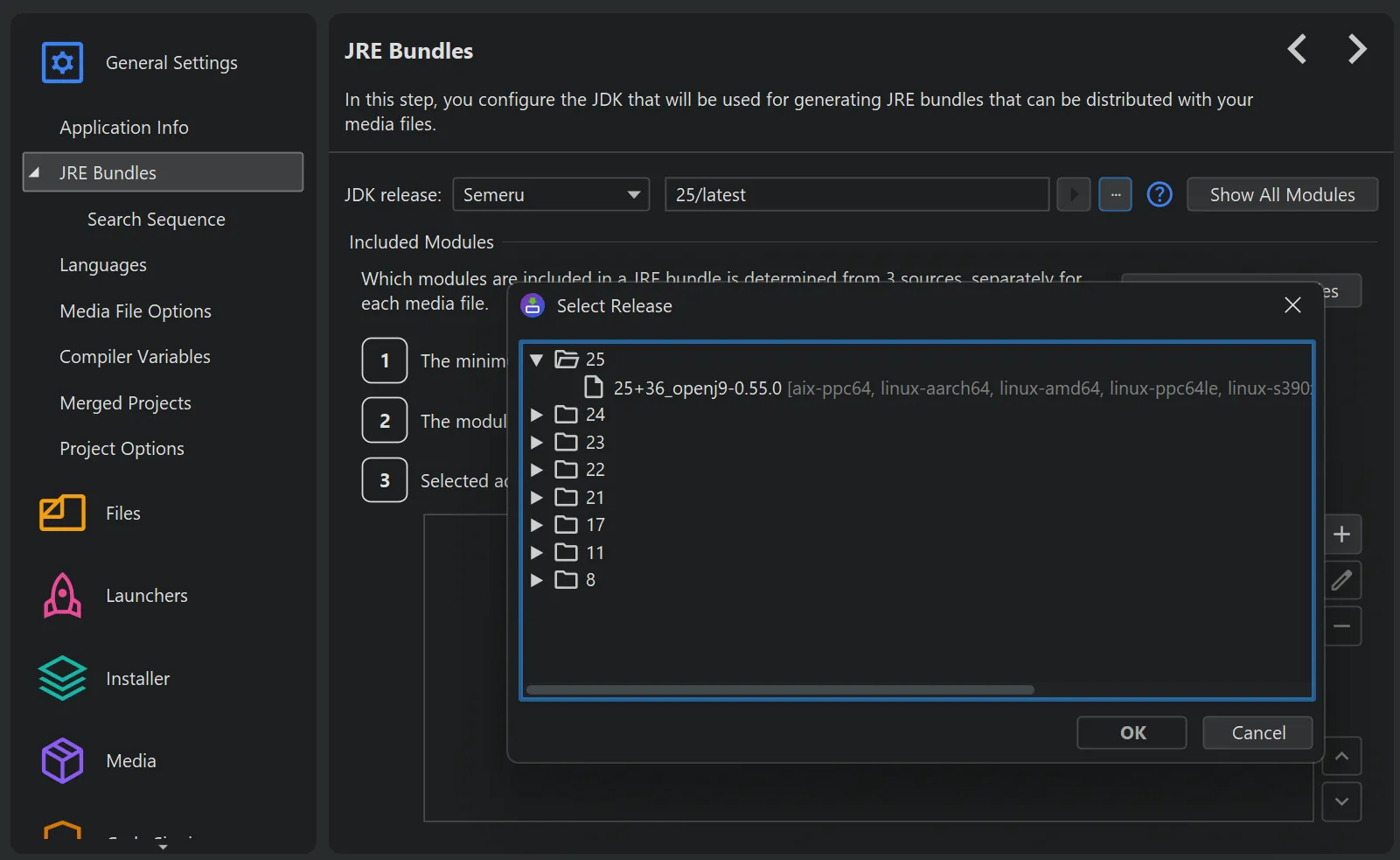

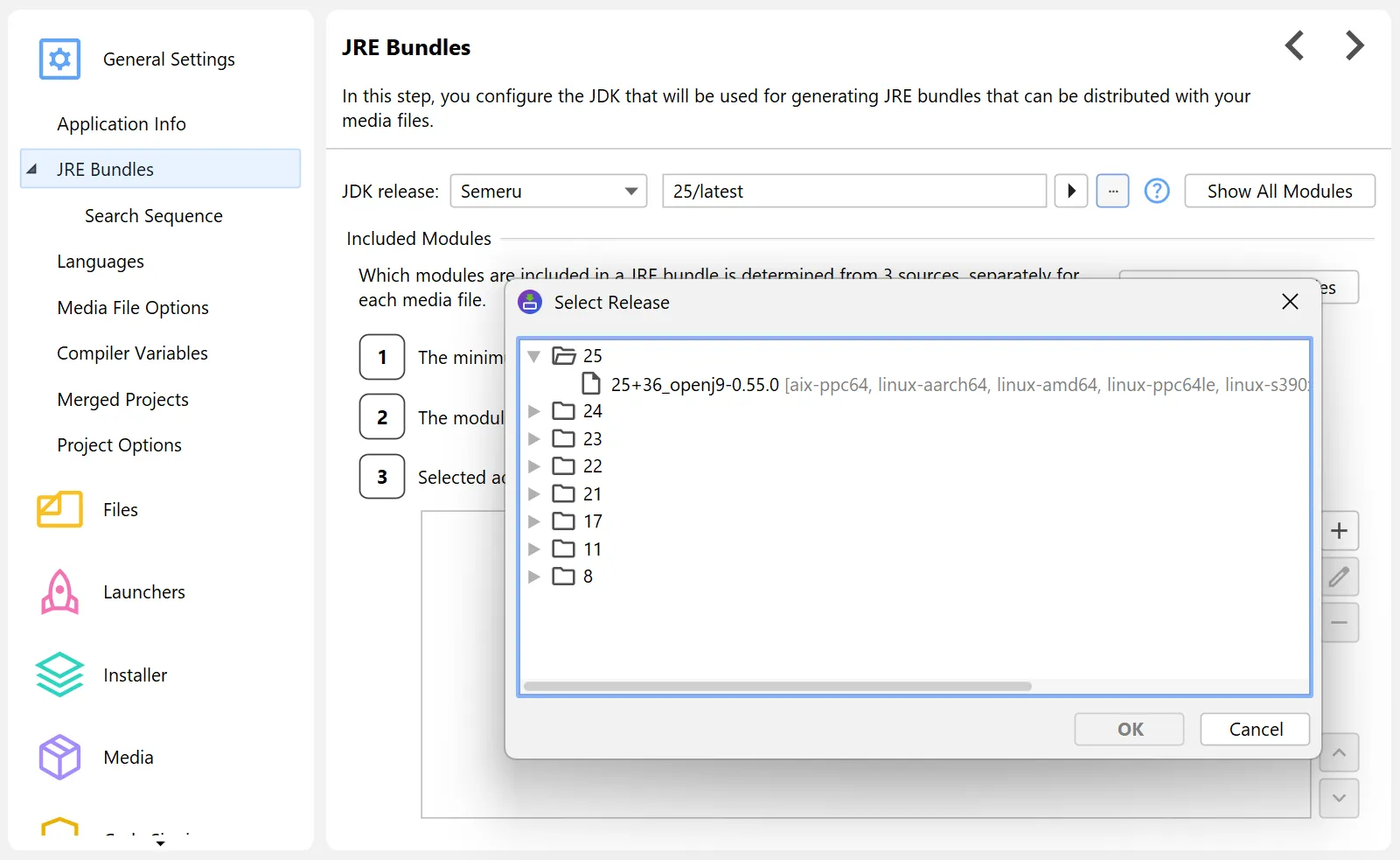

A JDK provider for IBM Semeru was added. Semeru runtimes are IBM-branded OpenJ9 JDKs. You can now select these JDKs for bundling on the "General Settings->JRE Bundles" step.

Support for the new Apple .icon bundles was added.

macOS 26 ships with a new "Icon Composer" app allowing you to design icons with different transparency layers that work well with the new icon styles in that release. While install4j cannot use the output of that app directly, it can use the .car resource archive that is created when the icon is compiled for an Xcode project.

To assist with the conversion of .icon files into .car and .icns files, a new command line utility iconcompiler has been added. It only runs on macOS and requires Xcode 26 or newer. Use "Project->Command Line Tools->Reveal Command Line Tools in Finder" to find the executable in your install4j installation.

Since you should always include an .icns file in addition to the .car file in your app bundle, there is no separate entry for the .car file in install4j. Instead, install4j will pick up a .car file with the same name beside the specified .icns file automatically.

UI scaling has been implemented for installer applications.

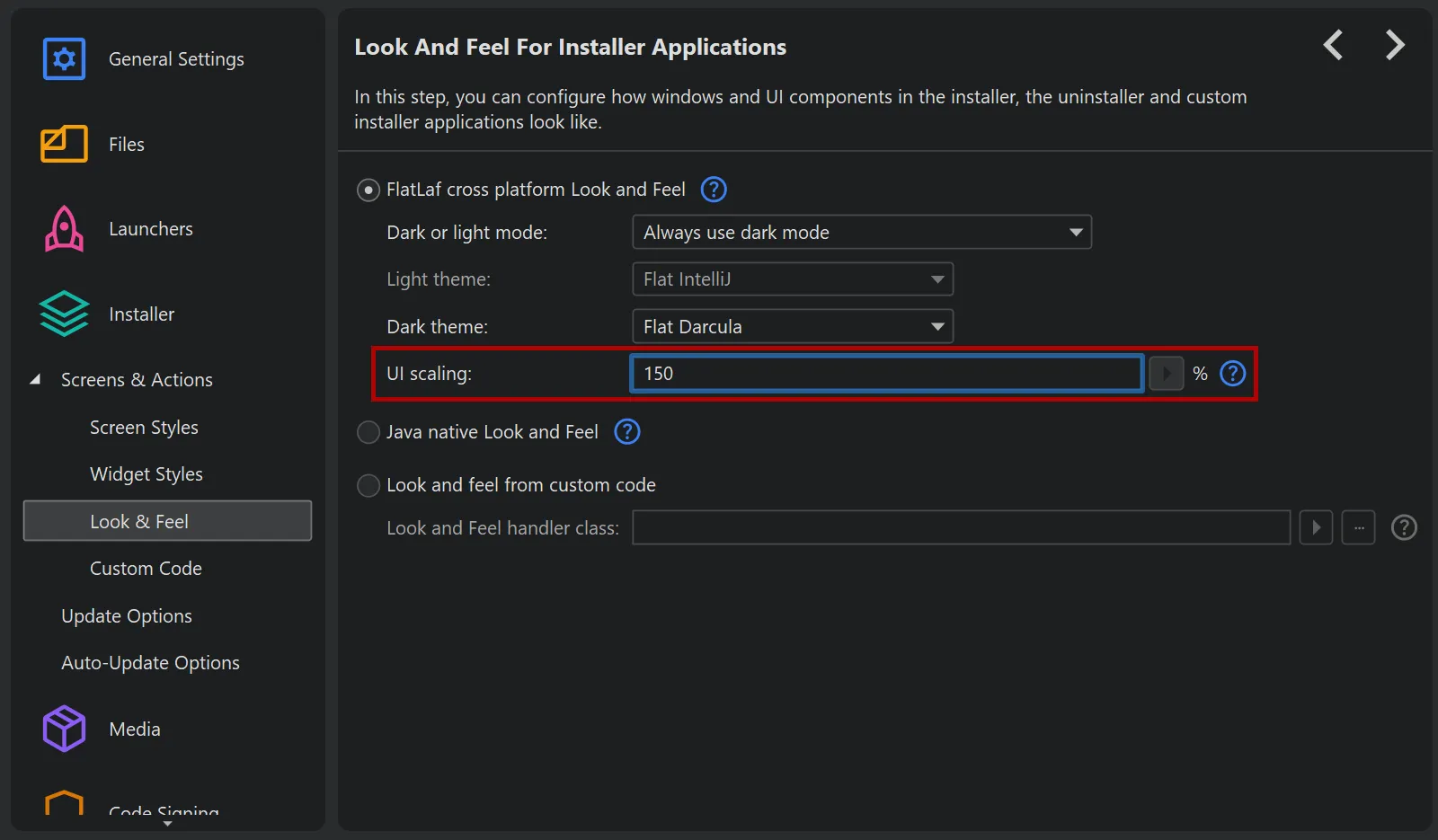

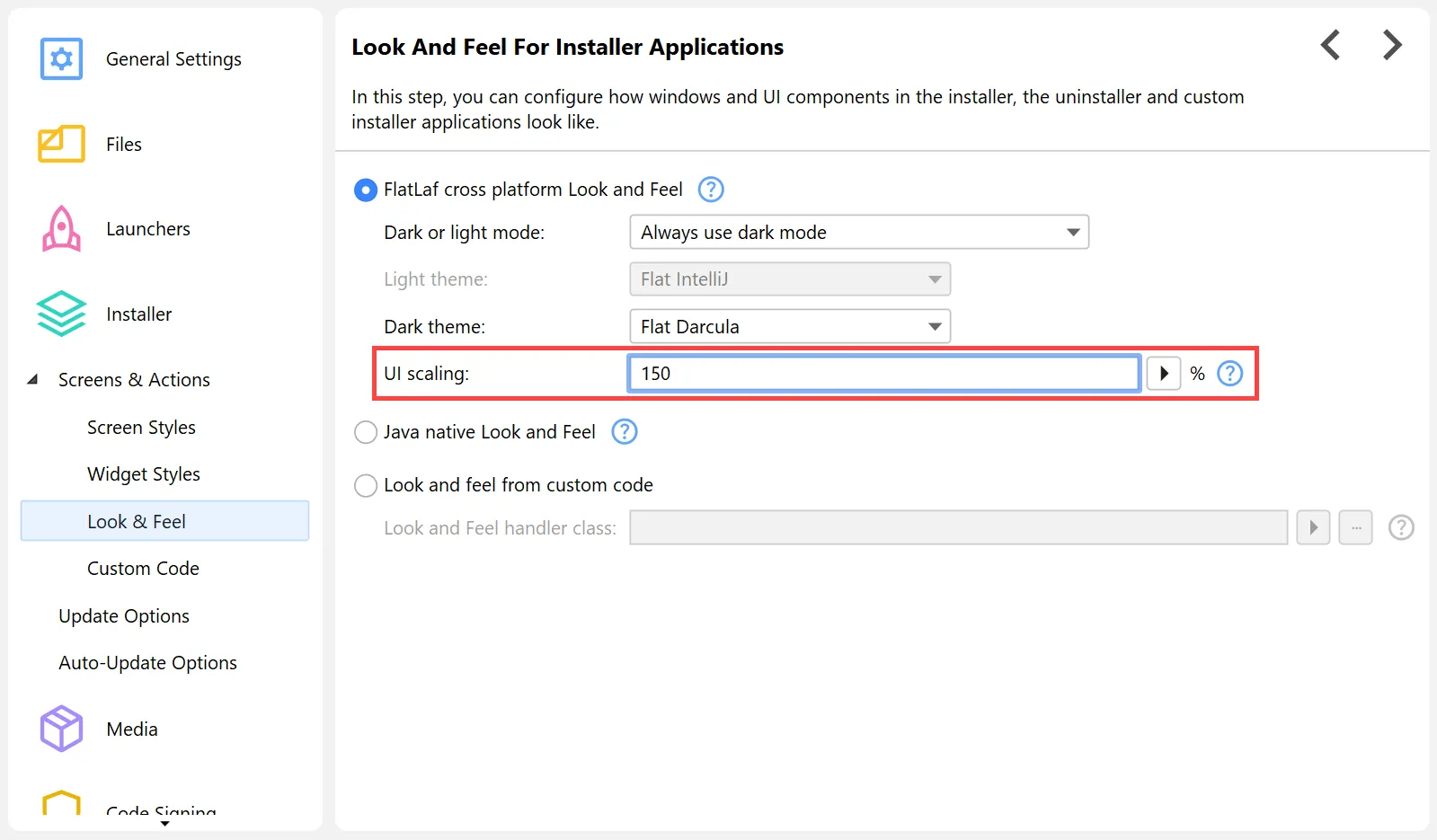

You can now scale the size of installer applications by an arbitrary percentage on the "Installer->Look & Feel" step.

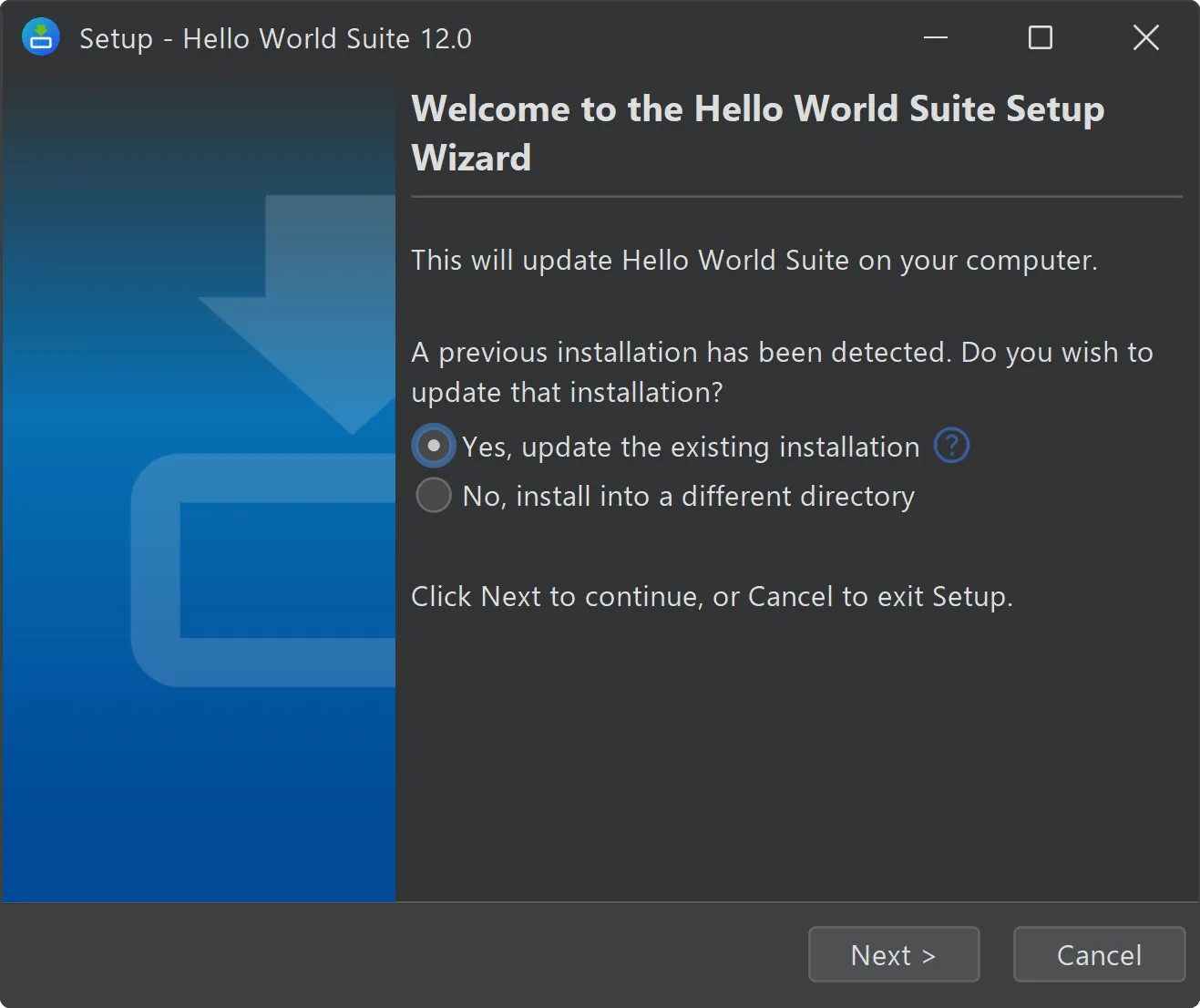

Scaling will be applied to all widgets, icons, and fonts, here with a 150% enlargement:

Support for choosing the JRE on the command line has been added.

You can explicitly set the JRE used by installers and generated launchers with the VM parameter -jvm=/path/to/jreBundle. This is supported in .vmoptions files and with -J-jvm=... as command line arguments.

install4j beans now support composition. If you develop your own beans for screens, actions, and form components, you can take advantage of the new bean composition feature.

A property of the bean can now be a bean with a separate BeanInfo itself. In the BeanInfo of the parent bean, the child bean is registered with the new com.install4j.api.beaninfo.Install4JPropertyDescriptor.setNestedBean method. With #setNestedBeanCategory you can set a category for all properties of the nested bean, and with #setNestedBeanPropertyFilter you can only include selected properties.

Conversion for installer variable values from string values has been added. On the command line and in response file variables, you do not have to specify variableName$Boolean=true or variableName$Integer=1 anymore, but variableName=true or variableName=1 will work correctly for form components that are bound to these variables and expect boolean or integer values. Enum values are also supported for string conversion.

Notable efficiency improvements in install4j 12 include

Major improvements to the startup times of the install4j IDE and the command line compiler.
The Windows icon compiler has been modernized to produce much smaller icon files.
